Remove/Install Glow Plugs - Ar15.20-D-4111TSV
Engine 642 in model 907
Shown on removed engine
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes for ceramic glow plugs | AH15.20-P-0001-01A | ||
| Remove/install | |||
| 1 | Bring coolant temperature to approx.80 °C. | ||
| 2 | Switch off engine. | ||
| 3 | Remove trim of left cylinder head cover. | AR01.20-D-5018TSV | |
| 4 | Remove trim of right cylinder head cover. | AR01.20-D-5017TSV | |
| 5 | Remove cable duct (2) of left cylinder head cover from charge-air distributor and push to side. | ||

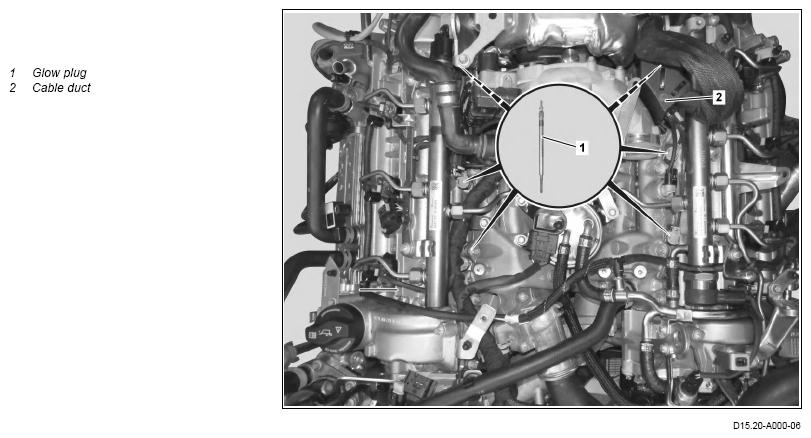

| 6 | Disconnect electrical connectors of glow plugs (1). | Fig 1 | |
| 7 | Remove glow plugs (1). | *BA15.20-N-1001-02TS | |
| Fig 3 | |||
| If the loosening torque is > 25 Nm: ↓ Heat working area on cylinder head with suitable heater. If a glow plug (1) breaks off: ↓ Drill out broken off glow plug (1). |
AR15.20-D-4112TSV | ||
| Clean | |||
| 8 | Clean glow plug wells. | Fig 2 | |
| 9 | Install in the reverse order. |
| Number | Designation | Engine 642 in model 907 | ||
|---|---|---|---|---|
| BA15.20-N-1001-02TS | Glow plug to cylinder head | M8 | Nm | 11 |
| M10 | Nm | - | ||
