Remove/Install Regulator For Alternator - Ar15.40-D-5760TSR

Engine 651 in model 907

	Remove/install
1	Remove alternator		AR15.40-D-5032TSR

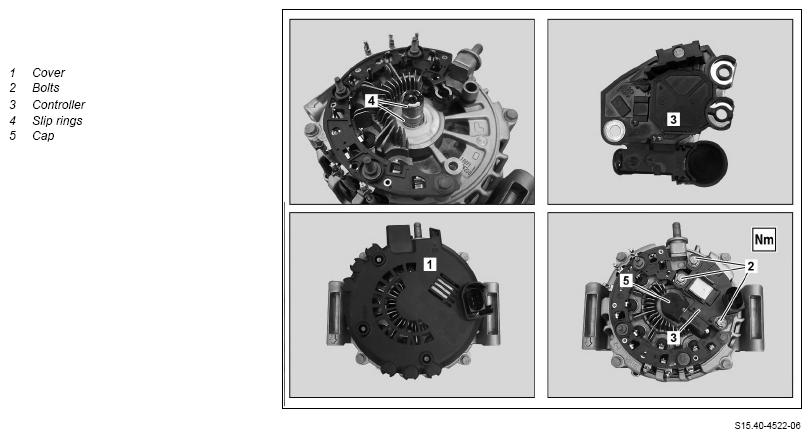

2	Remove cover (1)	To do this unclip cover (1) from the engagements. : Check engagements of the cover (1) for damage. If damage is present ↓ Replace cover (1).
3	Remove screw/bolts (2)	Bolt, regulator to alternator	*BA15.40-N-1004-01TS
4	Remove regulator (3)	: Always replace the controller (3). The carbon brushes of the new controller (3) are held back by the cover (5). After tightening the screws (2), the cover (5) must be pressed into the end position so that the carbon brushes lie on the slip rings (4). Malfunctions may occur otherwise. Check condition of slip ring (4). In the event of damage or severe wear of the slip rings (4) ↓ Replace alternator.
5	Install in the reverse order

ALTERNATOR

Number	Designation			Model 907 with engine 651
BA15.40-N-1004-01TS	Bolt, regulator to alternator	M4x19	Nm	3
		M4x13	Nm	2
