Remove/Install Fuel Temperature Sensor - Ar07.04-D-0045TSV
Engine 642 in model 907
| Risk of explosion caused by fuel igniting. Risk of injury to skin and eyes caused by fuel spraying out at high pressure | Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized. | AS07.16-Z-0001-01A | |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contactwith fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. | AS47.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes about Common-Rail components | AH07.16-P-0002-01TX | ||
| Remove/install | |||
| 1 | Remove air filter housing. | AR09.10-D-1150TSV | |
| 2 | Disconnect electrical connection (2). | ||
| 3 | Clean high-pressure pump in the area of the fuel temperature sensor (1) with cold cleaning solvent and dry with compressed air. | Cold degreasing agent/cold cleaning solvent HAKU 1025-920 | *BR00.45-Z-1051-04A |
| 4 | Remove fuel temperature sensor (1). | ||
| *BA07.04-N-1009-02TSV | |||
Depending on the findings, ↓ Install new fuel temperature sensor (1). |

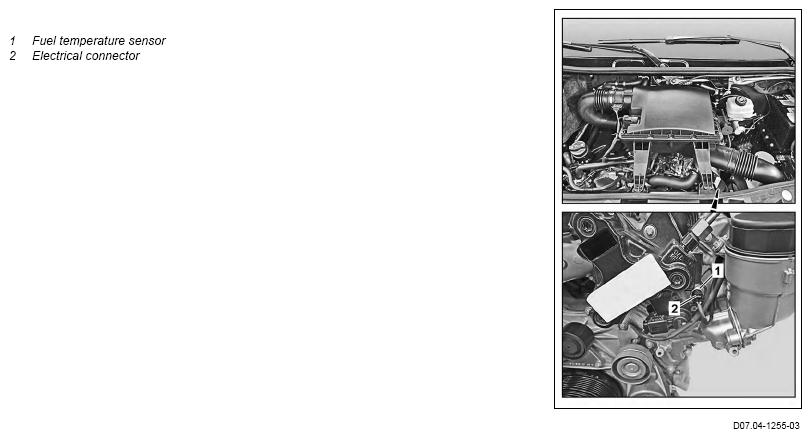

Fig 1 | ||
| 5 | Install in the reverse order. | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Check for leaktightness when engine is running. |
| Number | Designation | Engine 642 in model 907 | |
|---|---|---|---|
| BA07.04-N-1009-02TSV | Temperature sensor to fuel high-pressure pump | Nm | 28 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1051-04A | Cold degreasing agent/cold cleaning solvent HAKU 1025-920 | Chemische Werke Kluthe GmbH Gottlieb-Daimler-Str. 12 69115 Heidelberg Germany Tel. +49 6221 5301-0 Fax +49 6221 5301-176 http://kluthe.com |
