Remove/Install Pressure Sensor - Ar07.04-D-0060TSC

Engine 274 in model 907

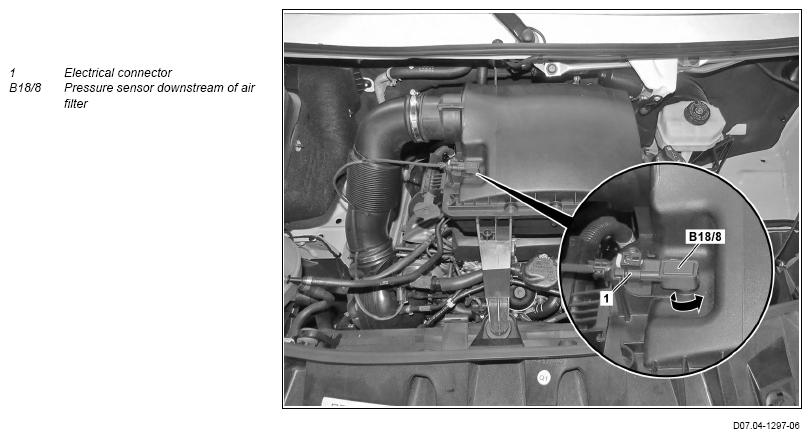

G13786658
  Information on preventing damage to electronic components due to electrostatic discharge AH54.00-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
2 Release electrical connector (1) and disconnect.
3 Turn pressure sensor downstream of the air filter (B18/8) to the right (arrow) and, using a suitable tool, pry out the pressure sensor downstream of the air filter (B18/8).
4 Install in the reverse order.
