Vacuum/Pressure System Check

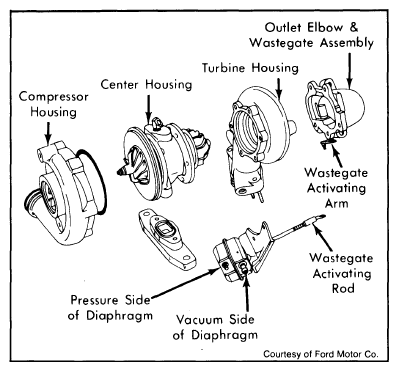

- Remove pressure hose from intake manifold fitting. Apply 7 psi to line and observe movement of wastegate activating rod.
- If wastegate rod moves, remove pressure hose and reinstall manifold line. If wastegate rod does not move, check for leaks at distributor diaphragm, boost retard switch, boost light switch and all hoses and lines.
