Window Switches

Testing is performed with a self-powered test light or an ohmmeter. Remove switch from vehicle before testing. See illustrations for switch terminal identification and continuity charts.

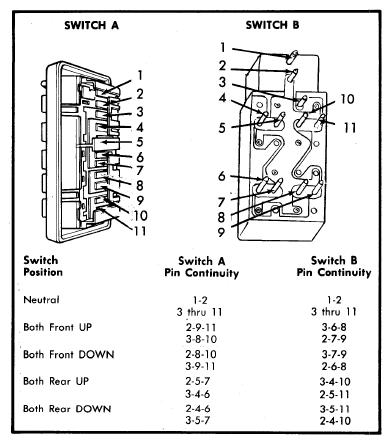

Fig 1: 4-Window Master Switch Testing (Including Mini-Vent Windows)

Courtesy of FORD MOTOR CO.

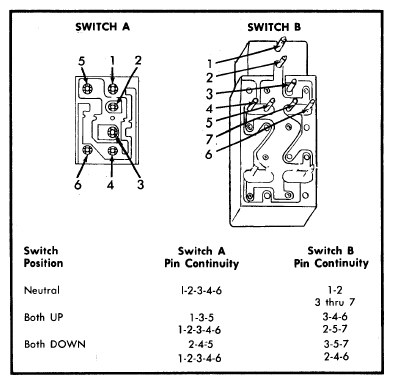

Fig 2: 2-Window Master Switch Testing

Courtesy of FORD MOTOR CO.
