Electronic Control Module

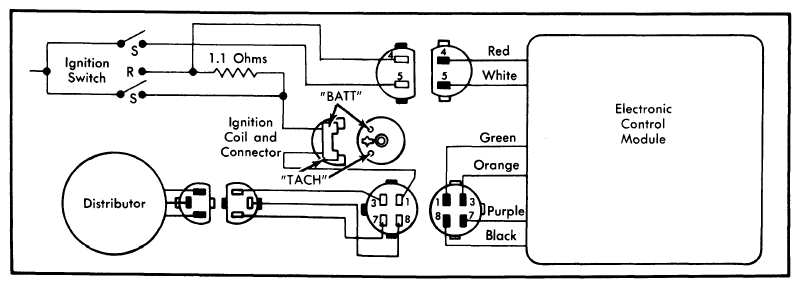

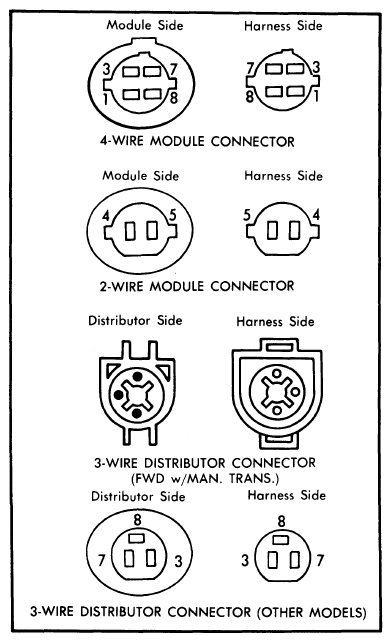

Each Dura-Spark II module has 6 wires (a 2-wire and a 4-wire connector). See Figureand Figure. Modules with dual mode timing have an additional 3-wires leading to one 3-wire connector. The Red and White wires are the ignition feed wires (the White wire is for cranking and Red wire is for operation after the engine is running). The Red wire circuit contains a 1.1 ohm resistance wire. The current to the primary circuit of the ignition coil is turned off and on through the Green wire. The Orange and Purple wires transmit signals to the electronic control module from the reluctor (armature) and pick-up coil (stator) in the distributor. The Black wire is used to ground the electronic control module through the distributor housing. On models with dual mode timing, the additional 3 wires connect to either a vacuum modulator valve or a barometric pressure switch.
