Evaporative Control System Components

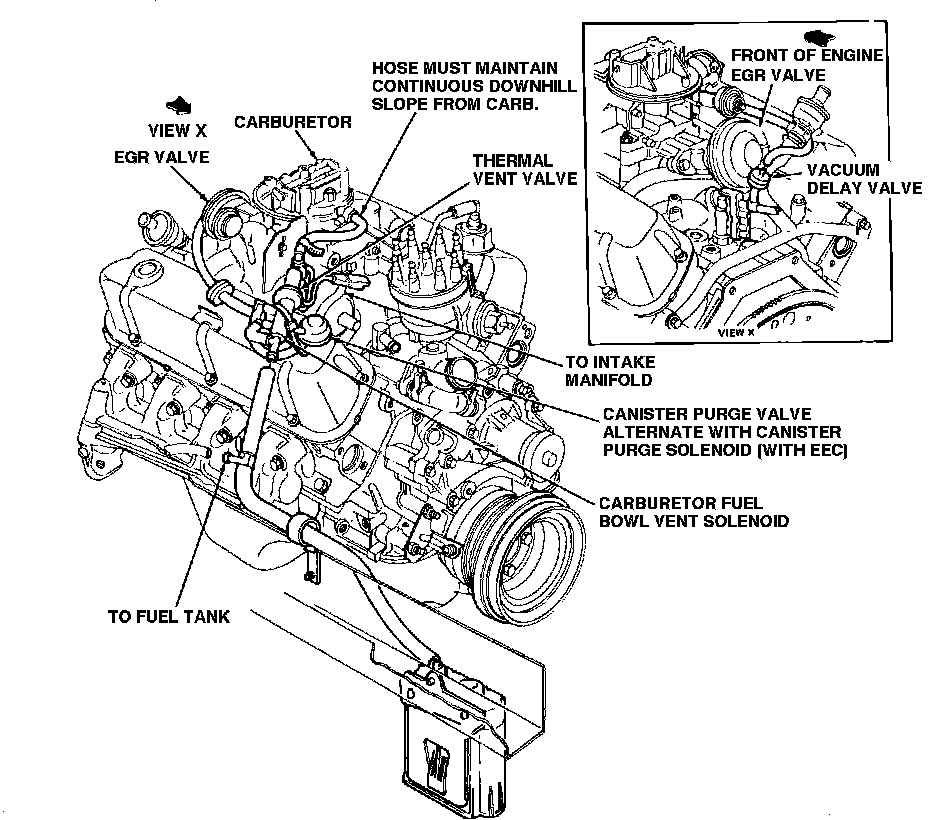

Fig. 3 Evaporative emission controls system. 1982 models W/V6 & V8 engines:






1982






1983

4.2/5.0/5.8 L
