Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| A/C Cooling Fan Control Unit | Attached to shake brace, below steering column. |

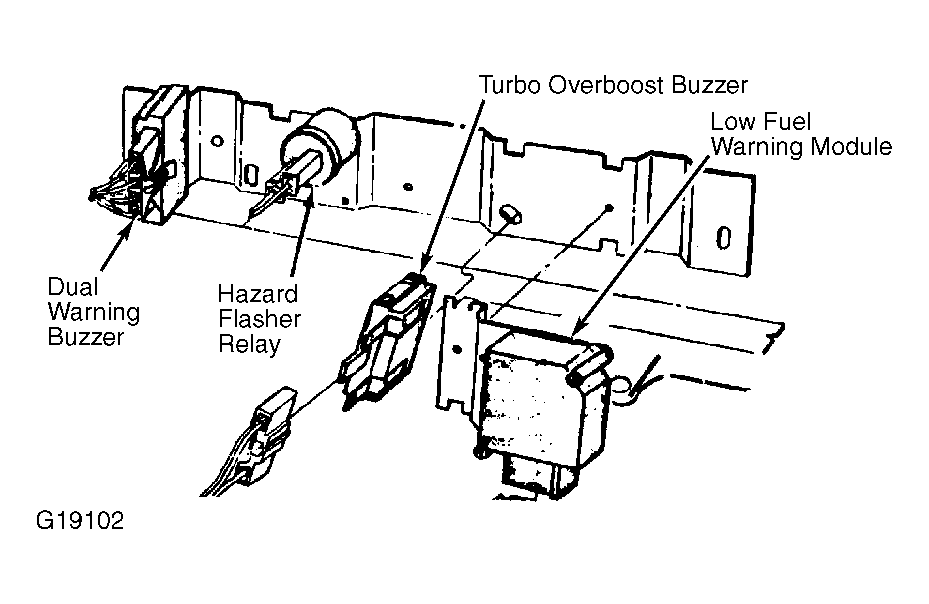

| Dual Warning Buzzer | Behind right side of instrument panel. See Figure. |
| Fuse Block | Behind the left side of instrument panel. |

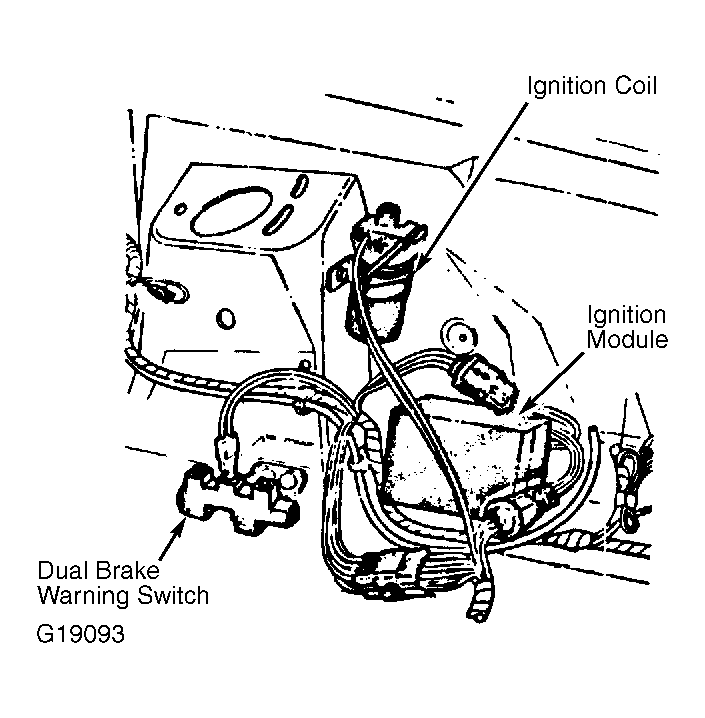

| Ignition Module | Left fender apron. See Figure. |
| Graphic Warning Module | Top center of console. |
| Low Fuel Warning Module | Behind right side of instrument panel, above glove box. See Figure. |

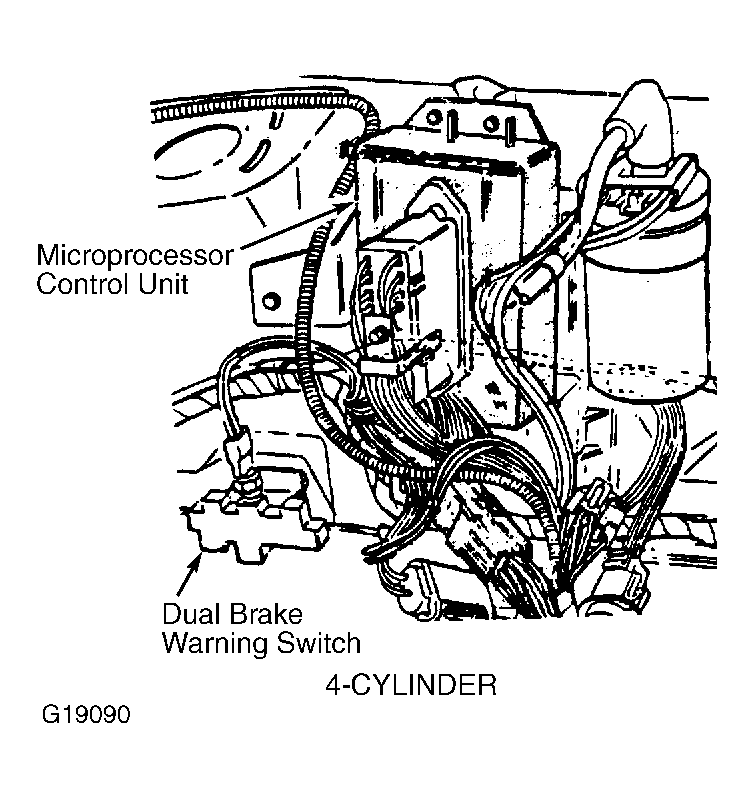

| Microprocessor Control Unit (4-Cyl.) | On left fender apron, next to ignition coil. See Figure. |
| Power Door Locks Circuit Breaker | On right fender apron, attached to starter relay. |

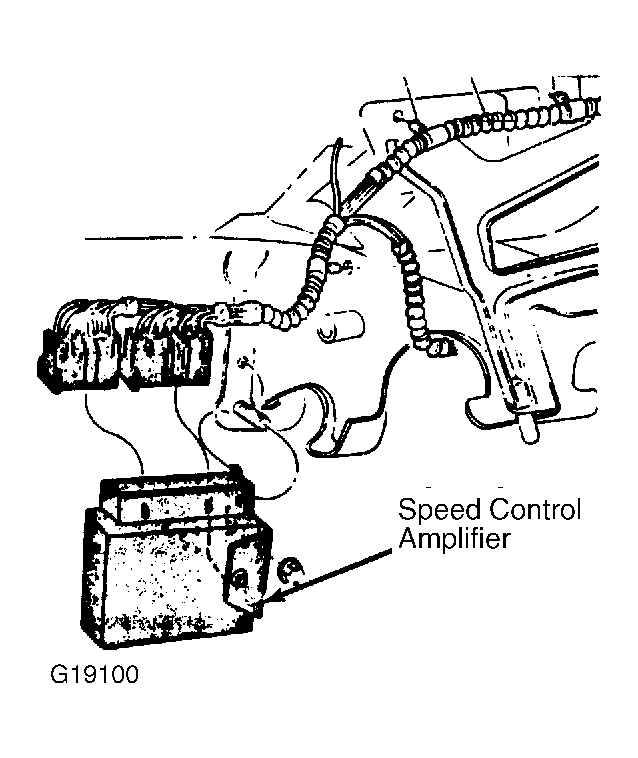

| Speed Control Amplifier | Left cowl area. See Figure. |
| Turbo Overboost Buzzer | Behind right side of instrument panel, above glove box. See Figure. |
| Upshift Indicator Module | Above brake pedal. |

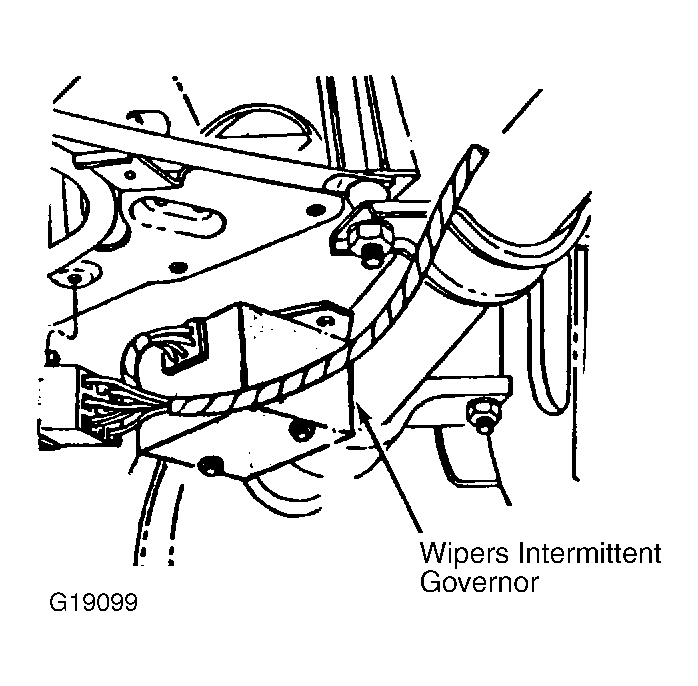

| Wipers Intermittent Governor | Under left side of instrument panel, on shake brace. See Figure. |
