Mercury
>>
1983
>>
Capri Base, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System
>>
Ignition System - DURA-Spark II
>>
Description
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Ignition System - DURA-Spark II: Description: Notes

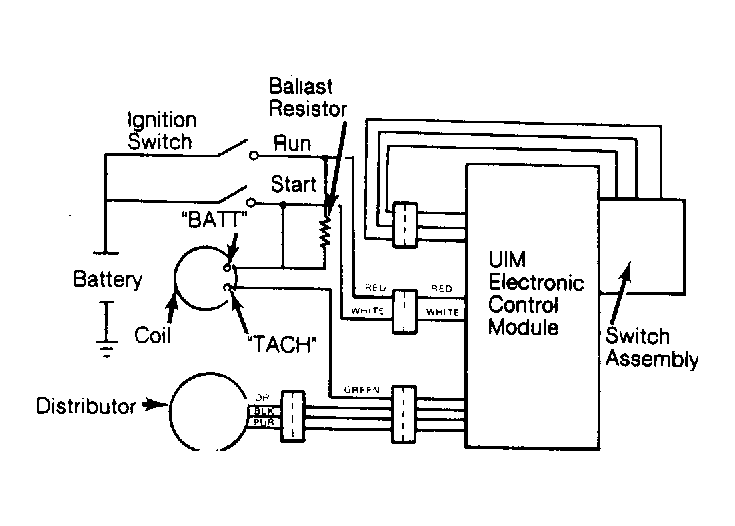

Fig 1: Dura-Spark II Ignition System Wiring Diagram
