Wiring Diagrams

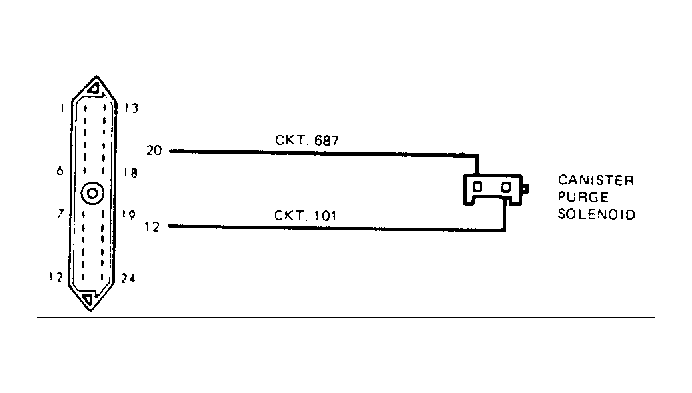

Fig 1: Canister Purge Test Wiring Diagram

G197

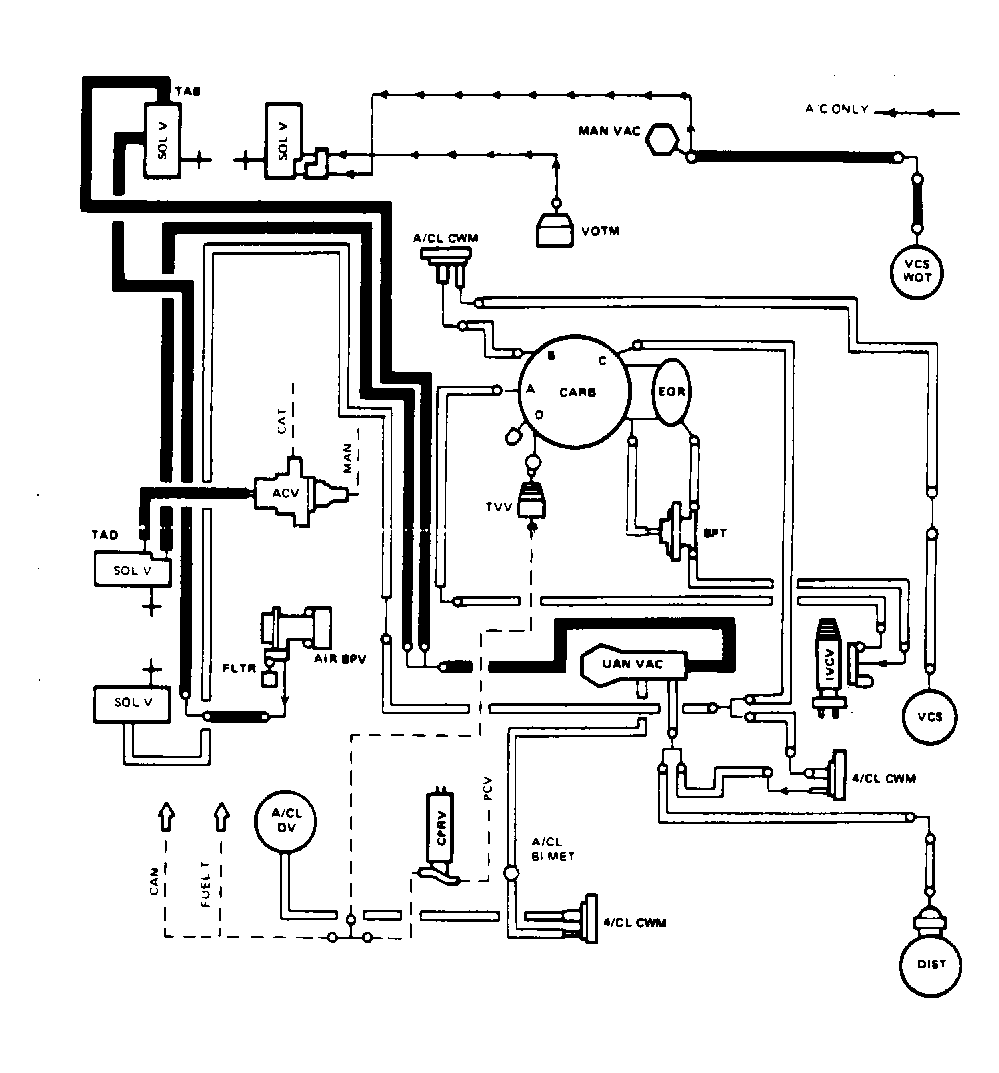

Fig 2: 2.3L 4-Cylinder MCU System Vacuum Diagram

G198
