Toe-In Adjustment
- Loosen the 2 clamp bolts on each tie rod assembly. Adjust toe. If steering wheel spokes are in their normal position, lengthen or shorten both tie rods equally to obtain correct toe.

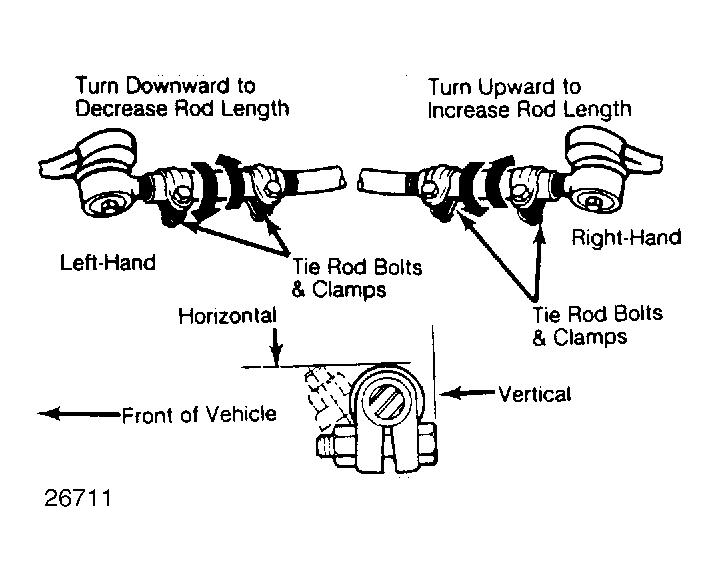

- When toe and steering wheel spoke position are both correct, lubricate clamps, bolts and nuts. Tighten to specifications. The 1 clamp bolts on each side of vehicle must be positioned within limits shown in Fig. Fig 1 . With threaded end of bolts toward front of vehicle.
