Instructions For Using The Sub-Routine Tests
Sub-routines are the following checks which are performed to correct a service code. Be sure to perform check as instructed. After replacing components or repairing circuits, repeat Functional Test and check engine operation.
Observe the following instructions when performing sub-routines:
- Do not measure voltage or resistance at MCU module, or connect test lamps to it (unless specific instructions say to do so).
- Disconnect both ends of a circuit when looking for continuity or shorts. Be sure ignition is turned off.
- Disconnect solenoids and switches from harness before measuring resistance or continuity.
- When more than one service code is indicated, start service with the first code received.
- Use wiring diagrams to locate pin locations and connectors.
NOTE:

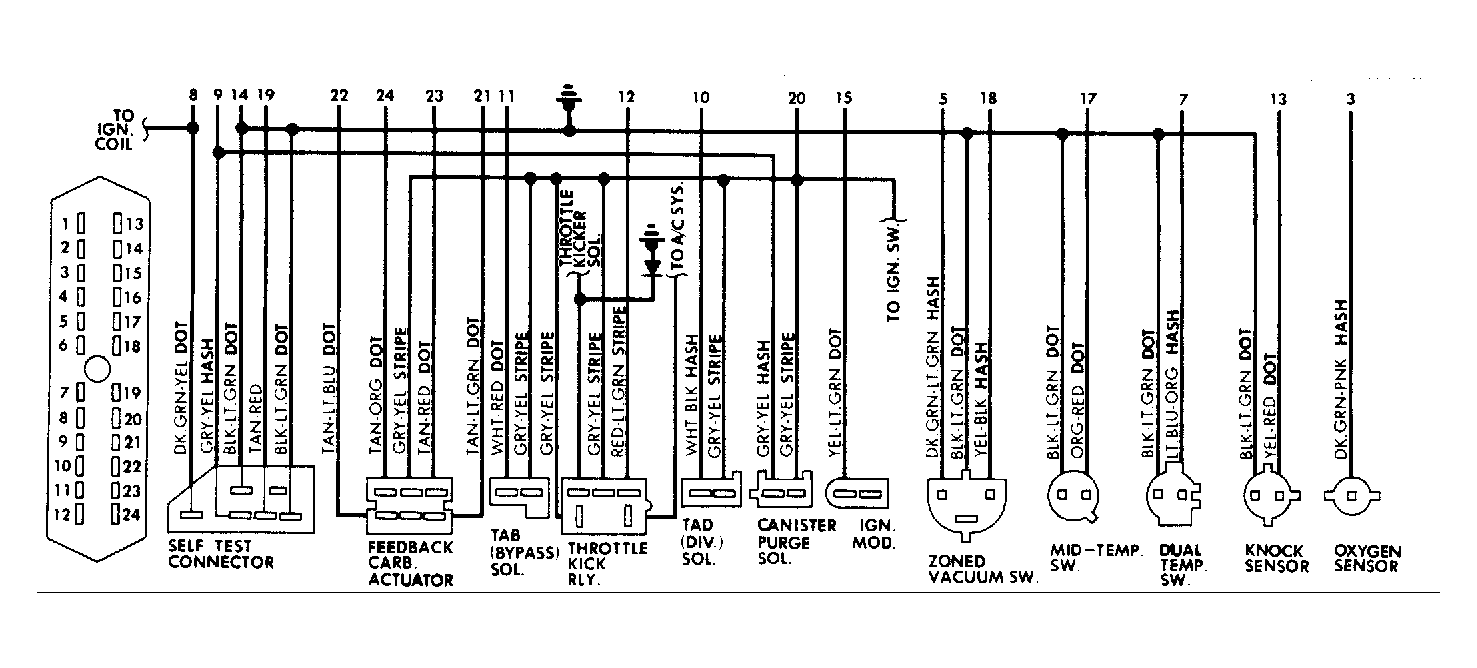

Partial wiring diagrams are provided for most Sub-Routine Tests to aid in servicing. For complete system wiring diagram and connector terminal locations, see Fig 1
.
