Inertia Switch: Notes
- In event of a collision, electrical contacts in inertia switch open and fuel pump automatically shuts off. Fuel pump will shut off even if engine does not stop running. Engine will stop due to lack of fuel.

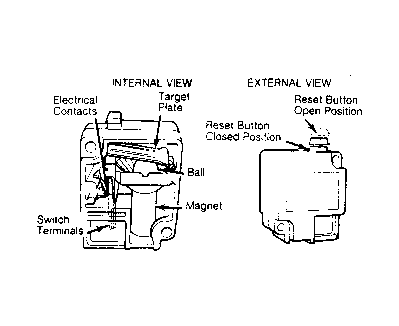

- It is not possible to restart engine until inertia switch is manually reset. Inertia switch is located behind trim panel on the left side of the trunk. To reset inertia switch, depress button on switch. See Fig 1 .
CAUTION:
DO NOT
reset inertia switch until fuel system has been inspected for leaks.
CAUTION:
Use care when opening fuel lines and testing fuel pressure due to danger of fire in case of fuel spillage. System is under residual pressure which MUST be discharged before opening fuel lines.
