Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

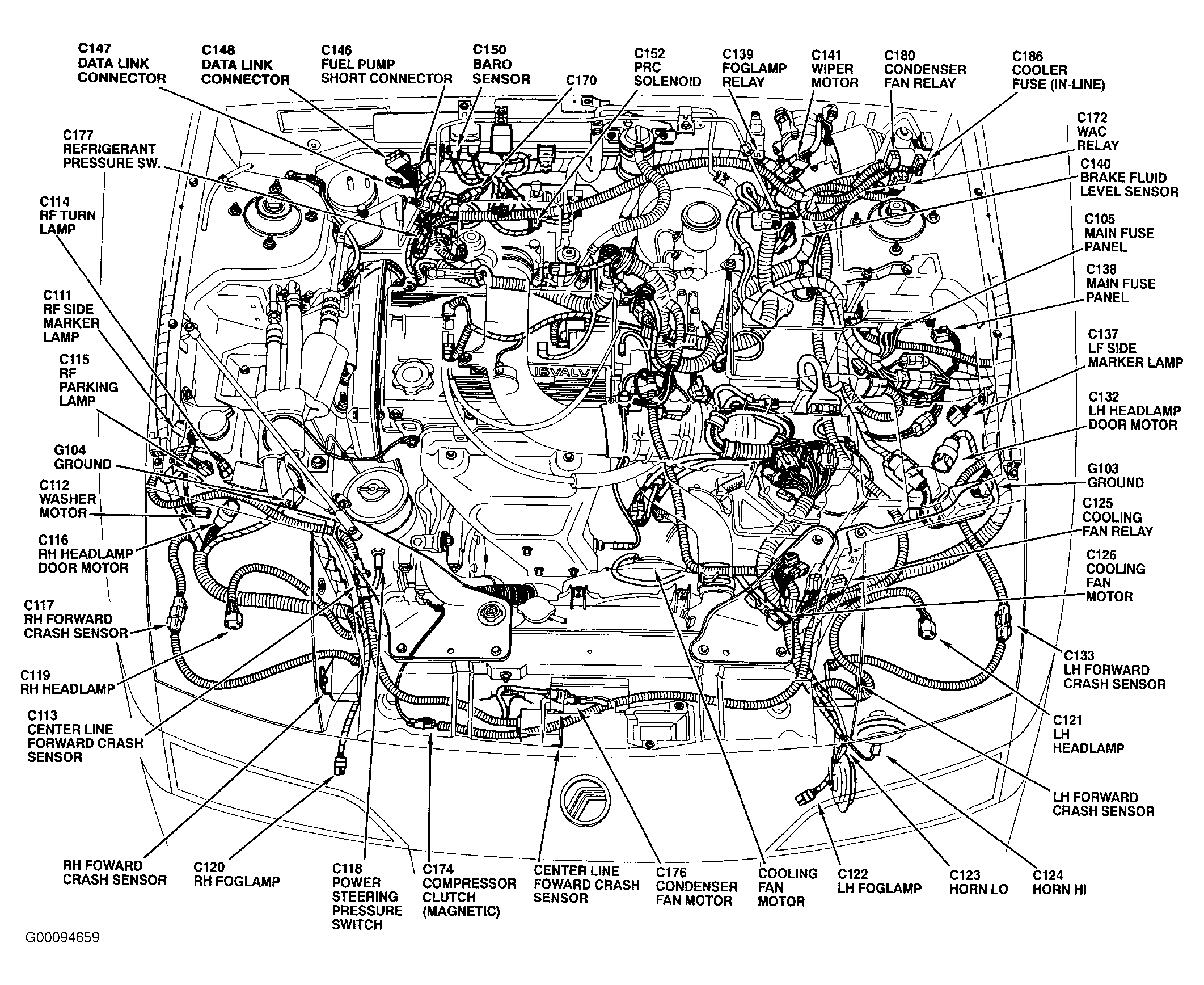

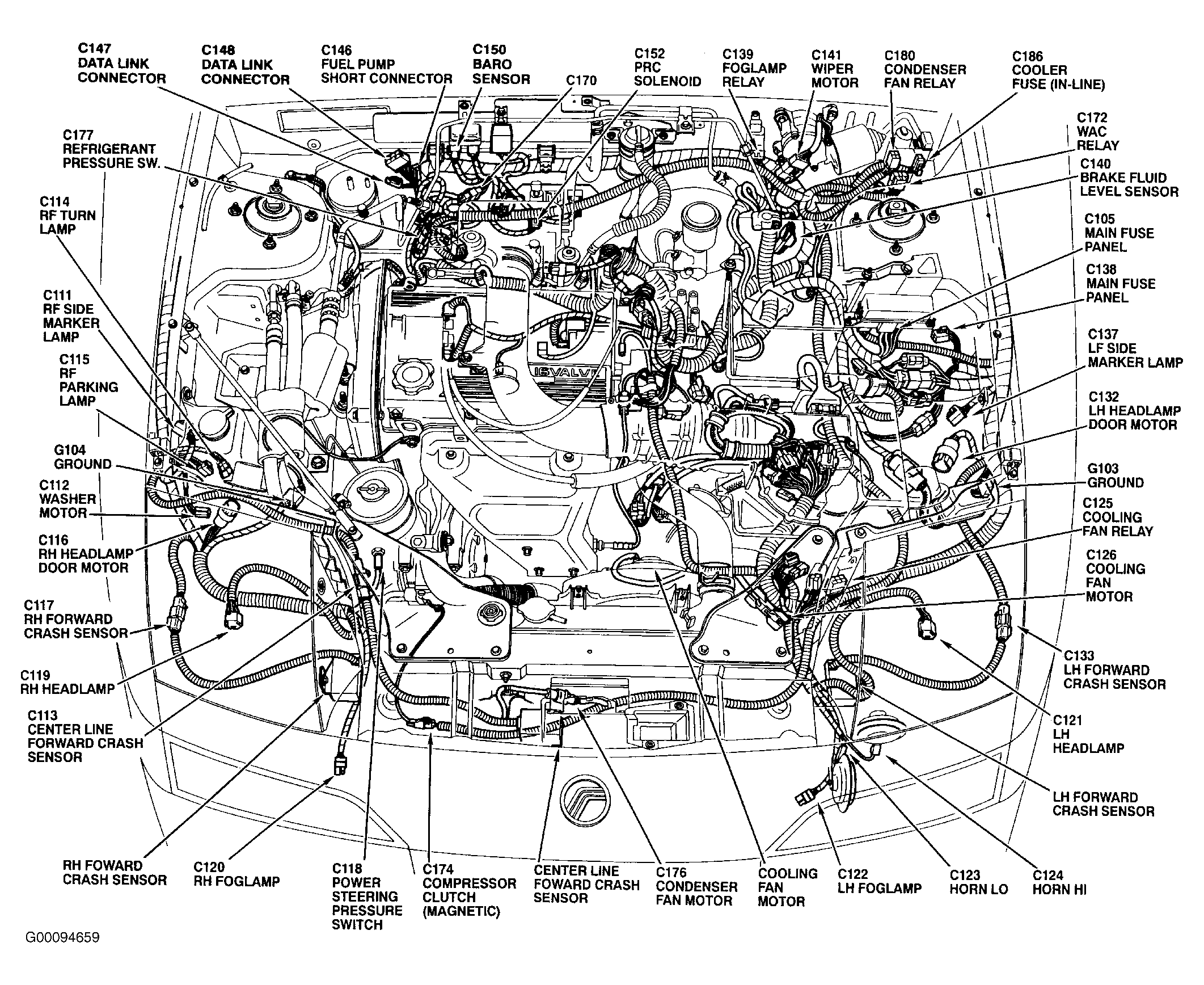

| Ground G103 | Left Front Corner of Engine Compartment. See Fig 1 . |

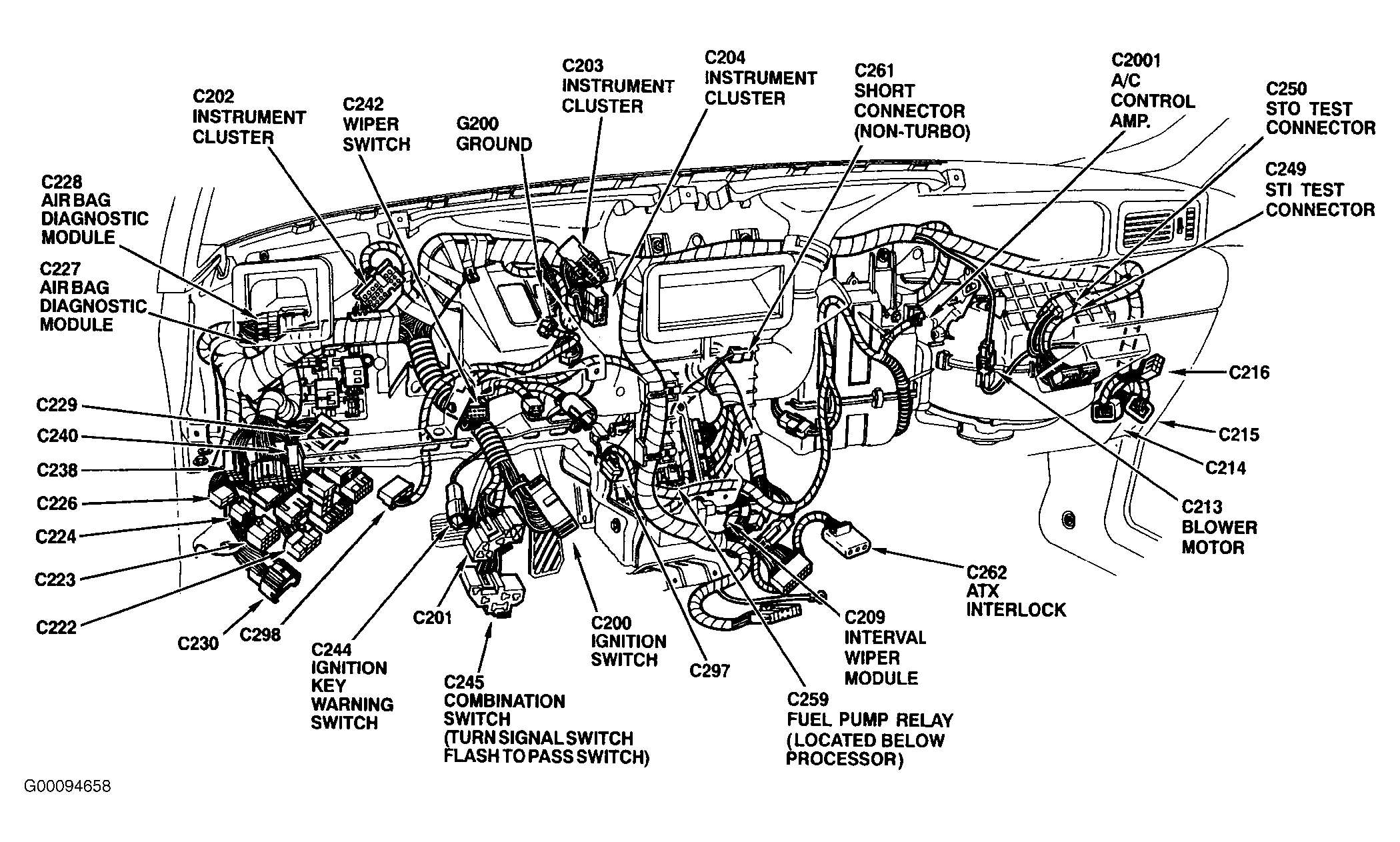

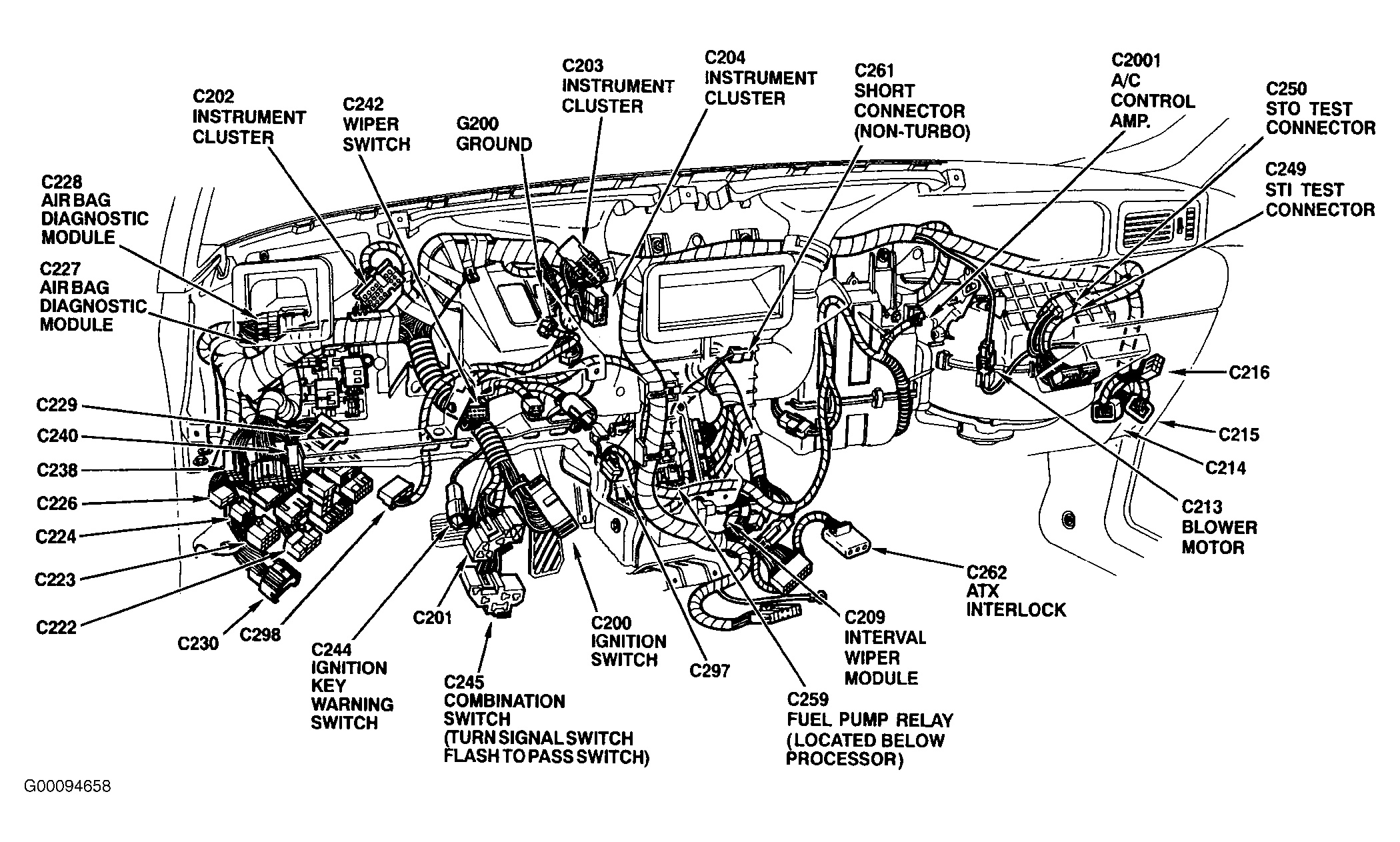

| Ground G200 | Behind Left, Center of Dash. See Fig 2 . |
| Interior Fuse Panel | Lower Left Side Of Instrument Panel |
| Left Power Window Motor | In Left Door |
| Power Window Main Switch | In Left Door |
| Right Power Window Motor | In Right Door |
| Right Power Window Switch | In Right Door |
