On-Vehicle Service: Lubrication
The front door windows are operated by two encased cables. The cables are attached from the motor to the regulator's slider bracket. The cables are secured by nylon fasteners inside the door. Lubrication of the cables is not necessary. The door window mechanism should be well-lubricated to provide ease of operation.

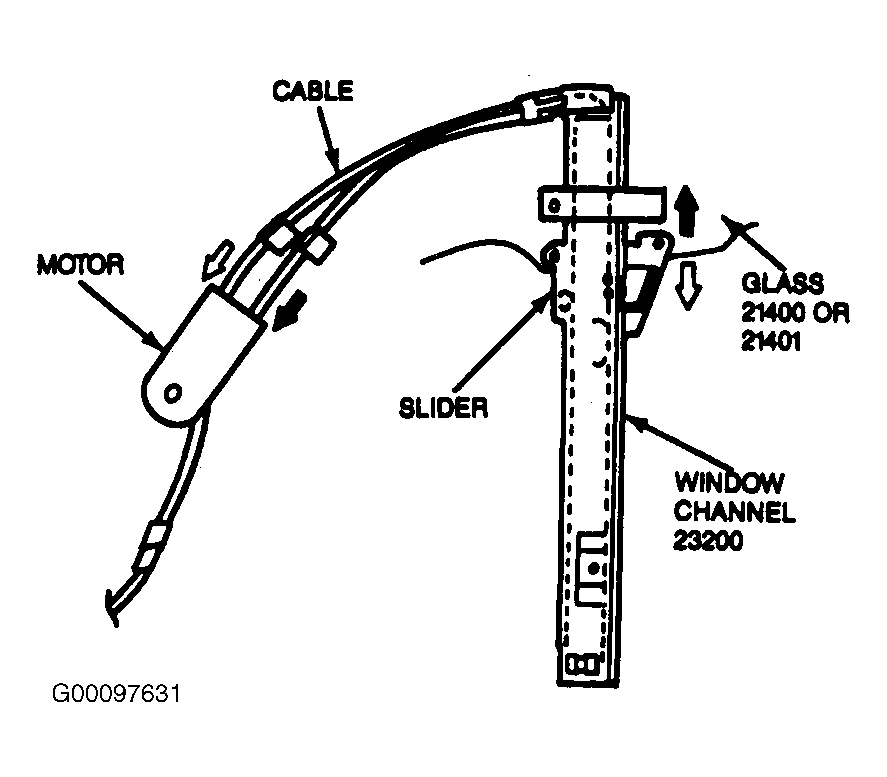

The mechanism should be lubricated whenever the glass channel or window regulator is removed or when excessive effort is required to operate the windows. To lubricate the door window mechanism, apply an even coating of Multi-Purpose Grease (DOAZ-19584-A), or equivalent, to the window regulator guides and entire length of channel. See Fig 1 .
