Solenoid Test

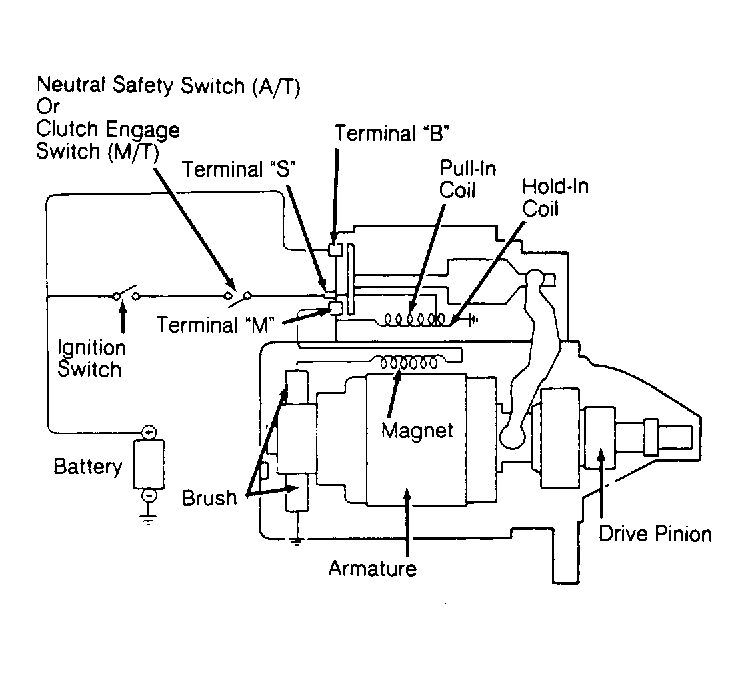

Disconnect wiring and cables from solenoid. Using an ohmmeter, check for continuity between terminal "M" and body of starter solenoid. See Figure. Continuity should exist. If continuity does not exist, replace solenoid.
