Pinpoint Test TP - Throttle Position Sensor: Notes

NOTE: Enter this test only when a Code 12 is displayed during QUICK TESTS procedure or when directed here from another PINPOINT TEST.

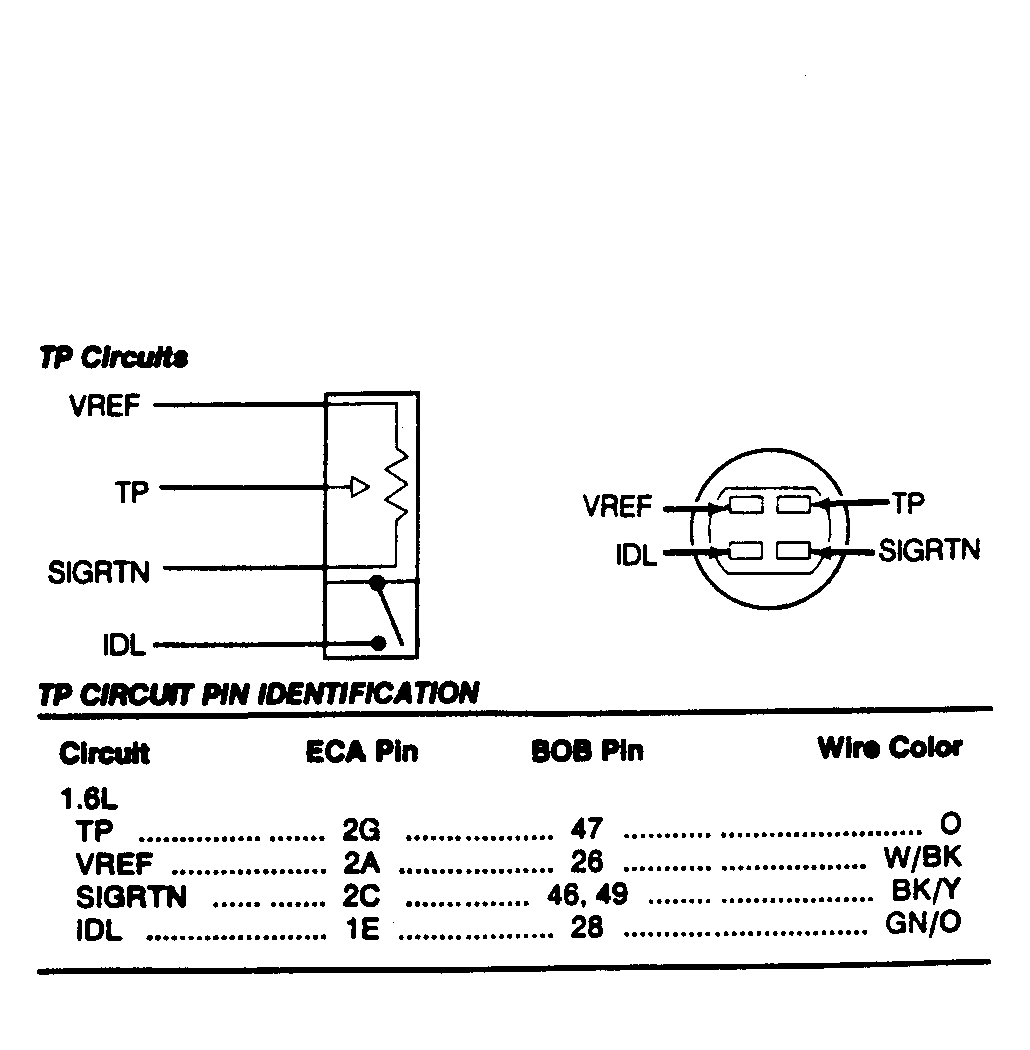

Fig 1: Identifying TP Circuits

TP CIRCUIT PIN IDENTIFICATION

Circuit		ECA Pin	BOB Pin	Wire Color
1.6L
IDL		1E	28	GRN/ORG
SIGRTN		2C	46, 49	BLK/YEL
TP		2G	47	ORG
VREF		2A	26	WHT/BLK
