Fuel Pump Relay

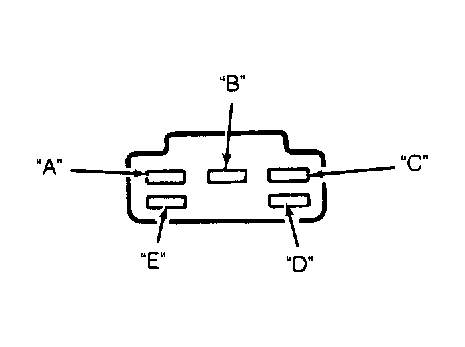

Remove fuel pump relay (located near heater duct under carpet). Using a fused jumper wire, apply 12 volts to relay terminal "B." Connect terminal "A" to ground. See Fig 1 . Measure voltage between terminal "C" and ground, while individually grounding terminals "D" and "E". Verify voltage is as specified. See FUEL PUMP RELAY SPECIFICATIONS table. If voltage is not as specified, replace relay.
FUEL PUMP RELAY SPECIFICATIONS
| Terminal "D" | Terminal "E" | Terminal "C" Voltage |
|---|---|---|
| Open | Open | Less Than One |
| Grounded | Open | Greater Than 10 |
| Open | Grounded | Less Than 10 |
| Grounded | Grounded | Greater Than 10 |
