Component Locations

COMPONENT LOCATIONS

Component	Location
Ground G200	Attached to Cowl Panel, Behind Left Center of Instrument Panel
Left And Right Power Window Switch	In Center Console
Left Door Power Window Motor	In Left Hand Door
Right Door Power Window Motor	In Right Hand Door

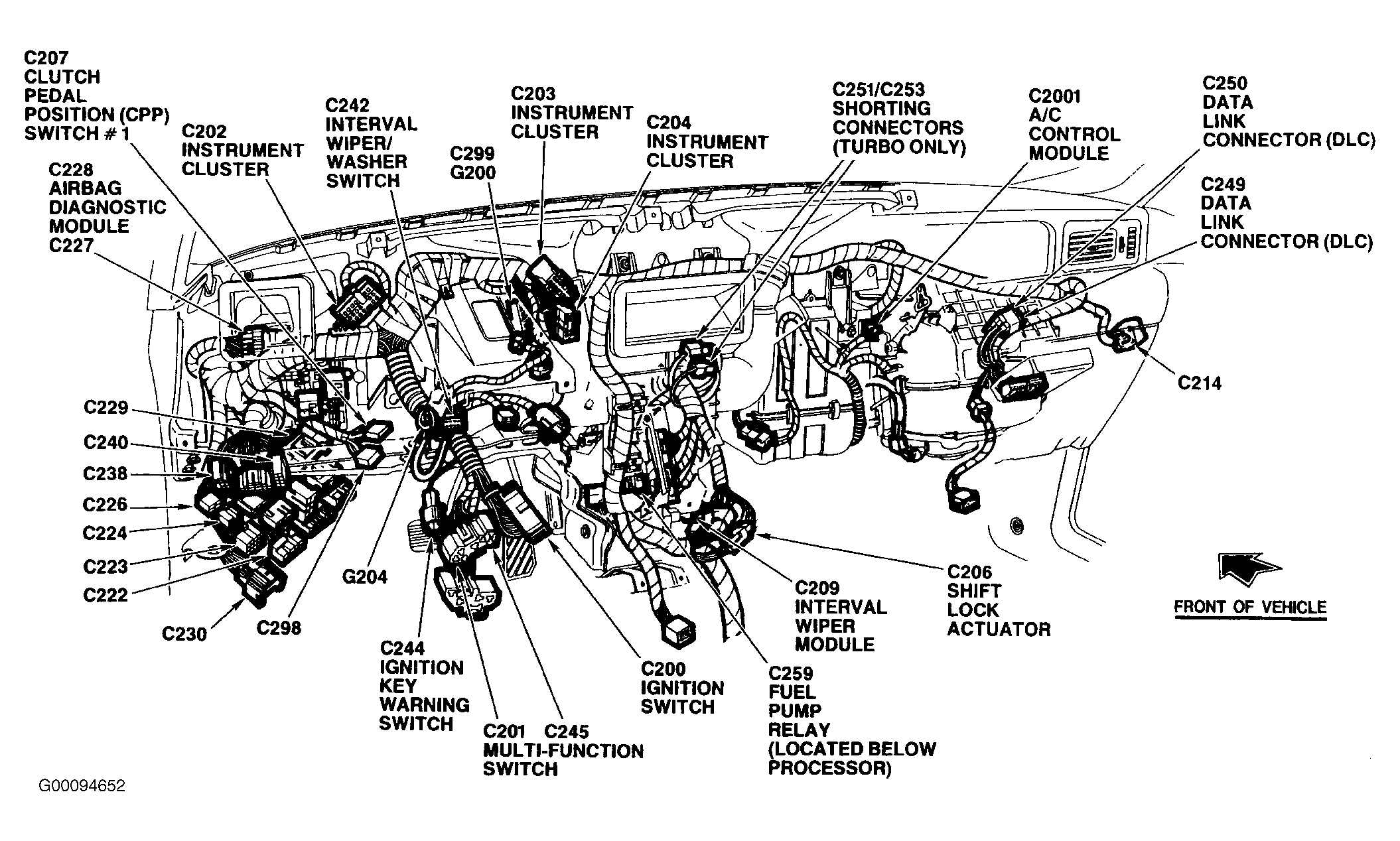

Fig 1: Locating Ground G200

G00094652

Courtesy of FORD MOTOR CO.

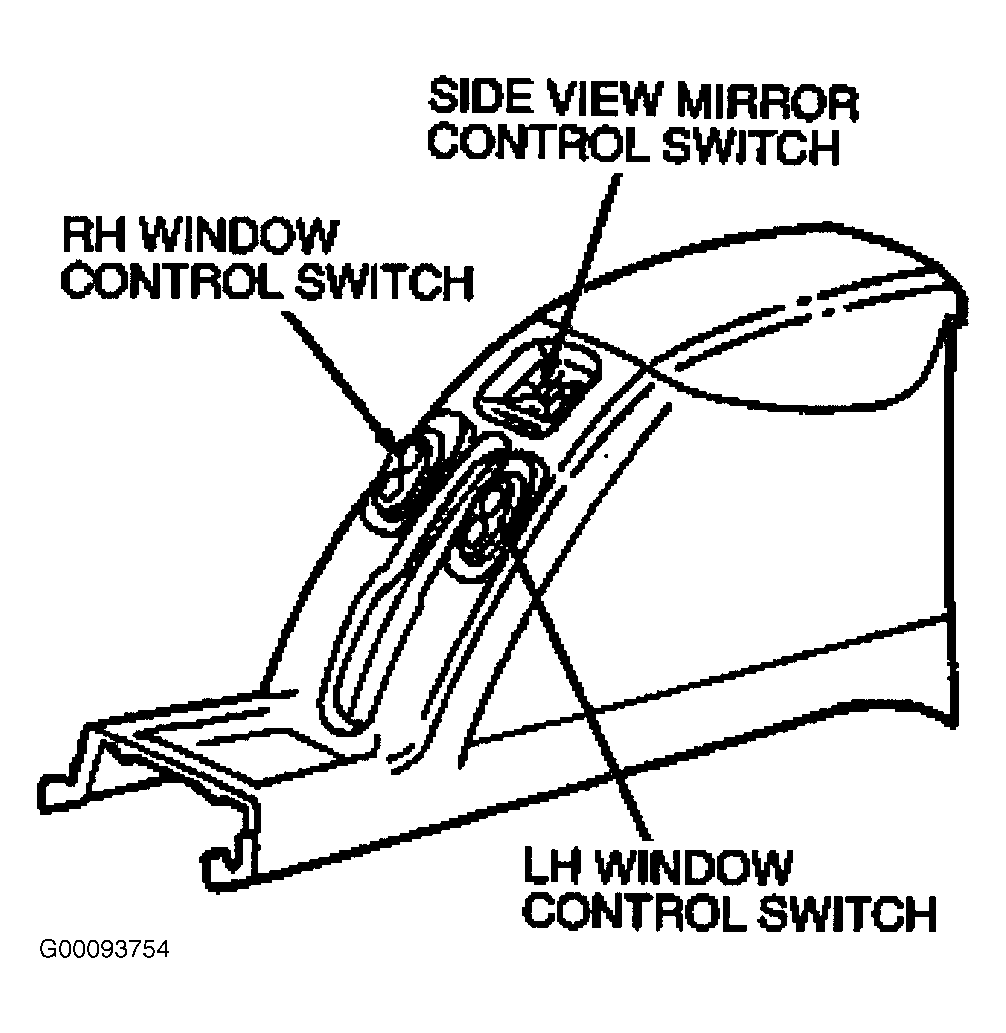

Fig 2: Locating Power Window Switches

G00093754

Courtesy of FORD MOTOR CO.

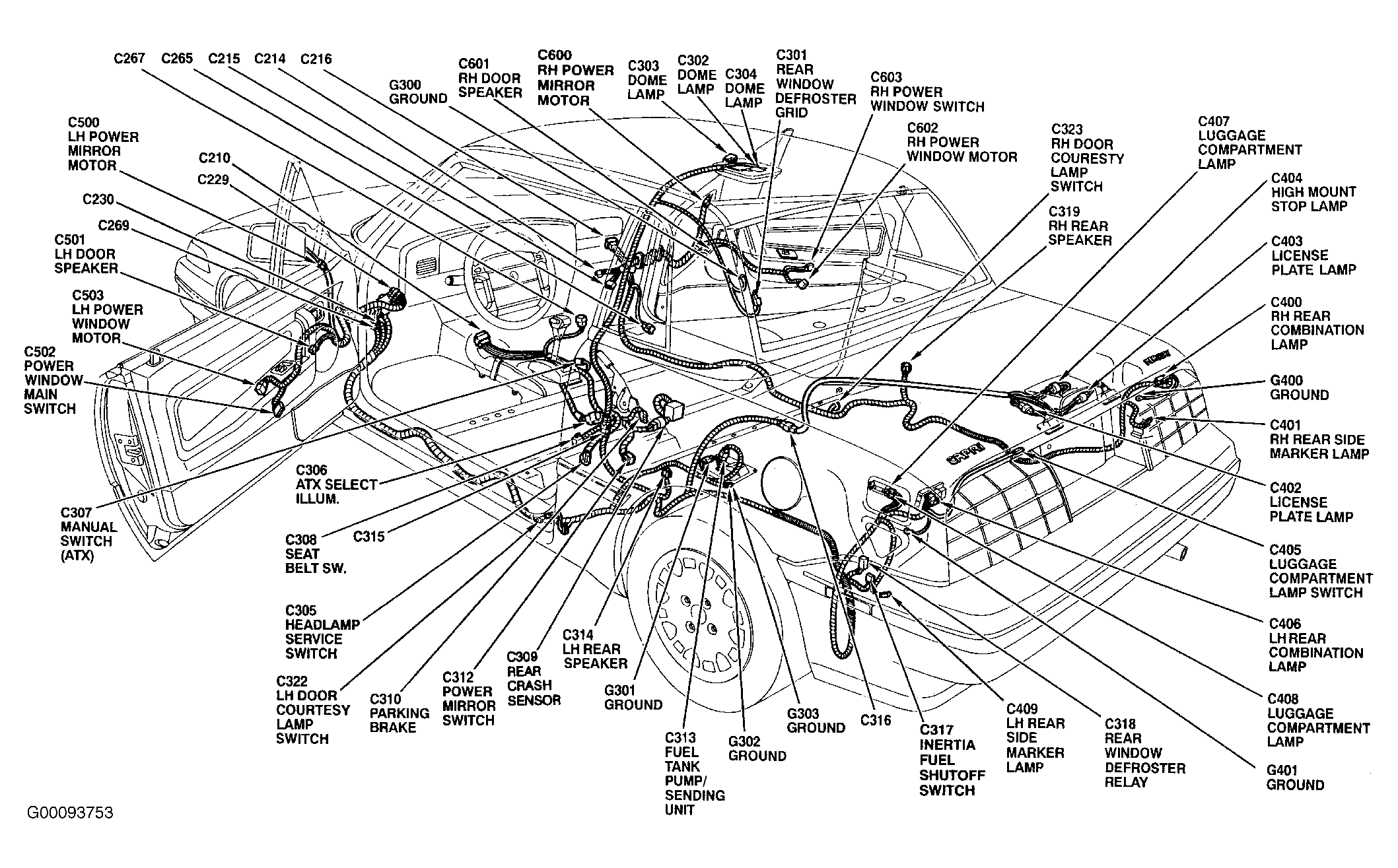

Fig 3: Locating Power Window Motors

G00093753

Courtesy of FORD MOTOR CO.
