A6: Check Left Power Window Switch

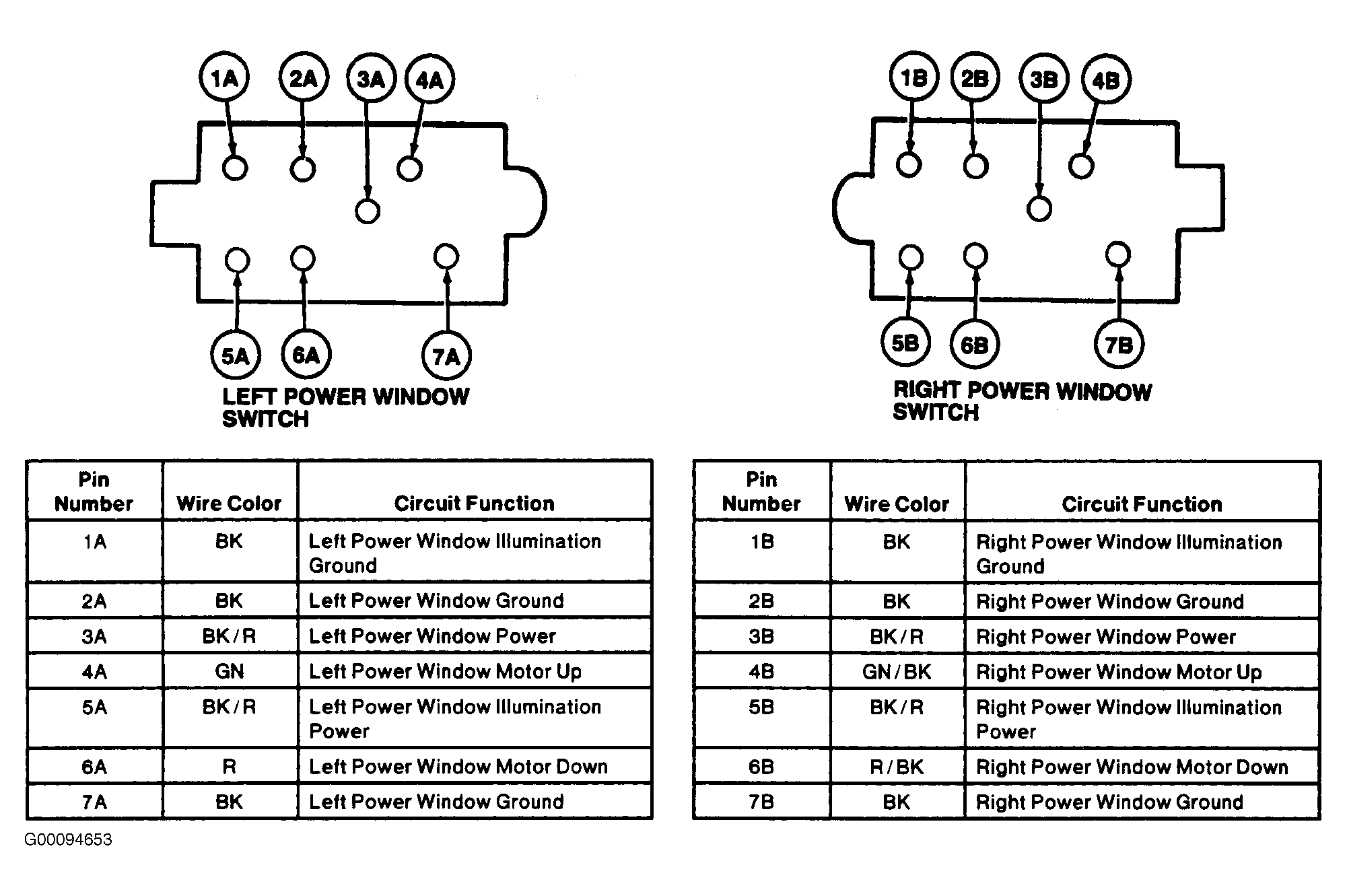

With the ignition key in the OFF position, disconnect left power window switch connector. Measure resistance of Red and Green wire terminals to the following wire terminals on the left power window switch connector, with the switch in the correct position. See Figure and Fig 1 . Are all resistances correct? If yes, go to the next step. If no, replace the left power window switch.

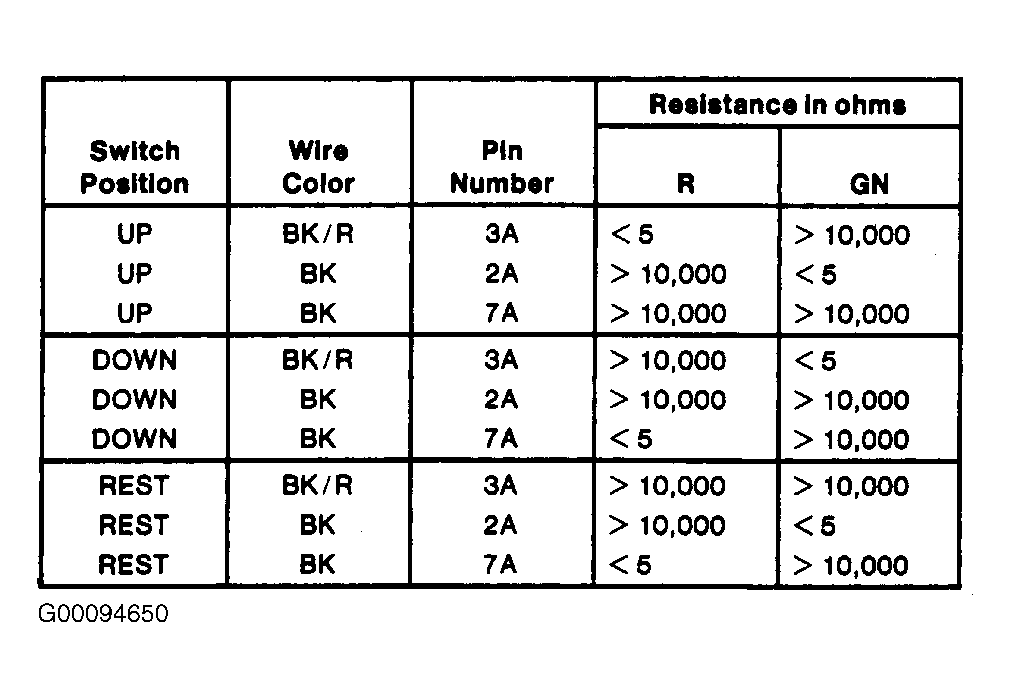

Fig 1: Testing Left Power Window Switch
G00094650Courtesy of FORD MOTOR CO.
