Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Air Bag Diagnostic Module | Behind left side of instrument panel. |
| A/C Control Module | Behind lower right side of instrument panel. |
| A/T Control Module (4EAT) | On right side of instrument panel, above glove box. |
| Cruise Control Module | Below center of instrument panel, at console. |

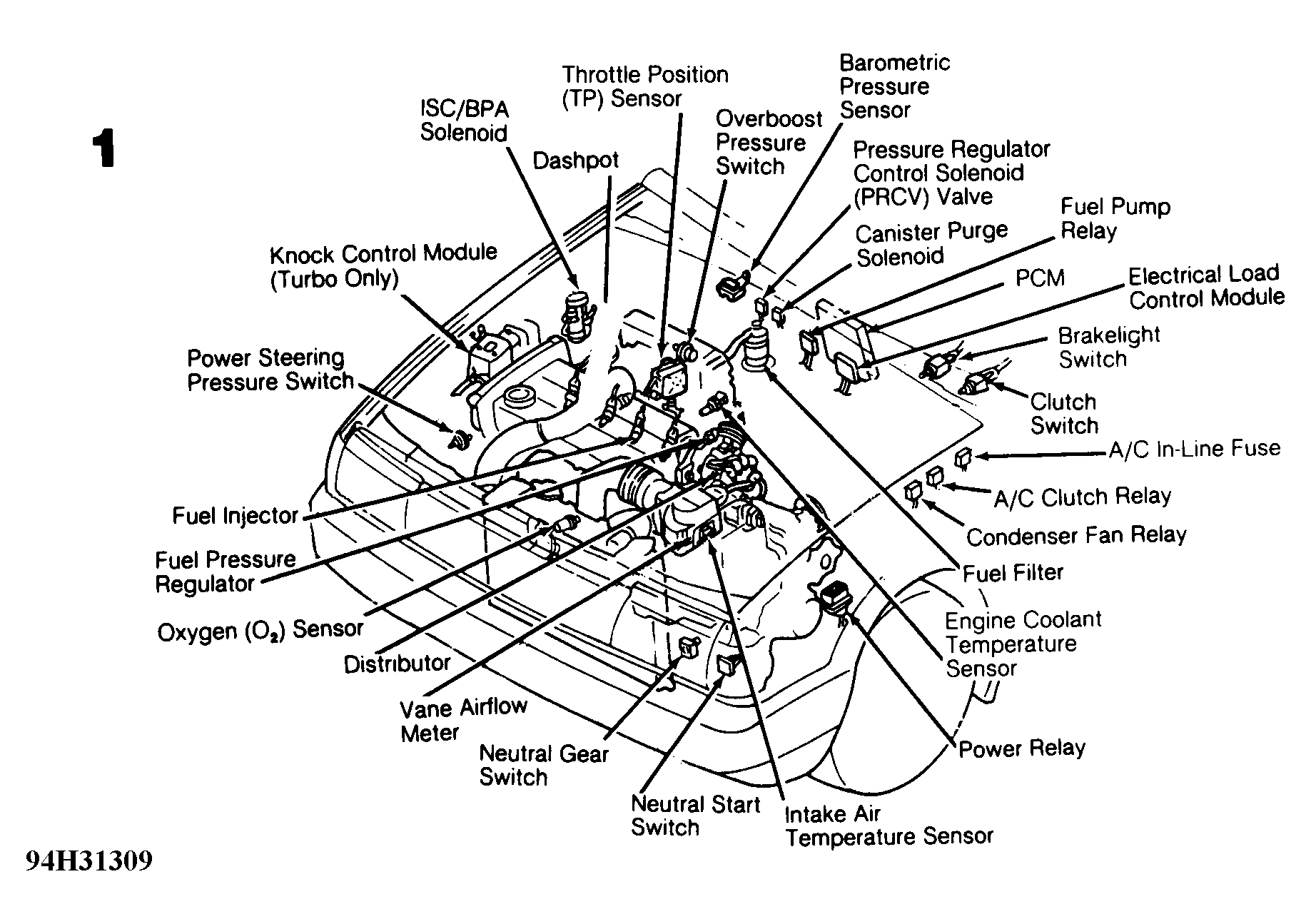

| Electrical Load Control Module | Behind center of instrument panel. See Figure . |
| Headlight Control Module | Behind center of instrument panel, below radio. |
| Interval Wiper Module | Below center of instrument panel, at console. |
| Knock Control Module (Turbo) | On right side of engine bay, on fender panel. See Figure . |
| Panel Light Control Module | Behind left side of instrument panel. |
| Powertrain Control Module (PCM) | Behind center of instrument panel. See Figure . |
| Warning Chime Module | Behind left side of instrument panel. |
