Fuel Pump Relay

Remove fuel pump relay, located below center of instrument panel, under PCM. Continuity should not exist between terminals "A" and "C". See Fig 1 . Using fused jumper wires, apply 12 volts to relay terminals "B" and "C". Continuity should exist between terminals "A" and "C". Replace relay if operation is not as specified.

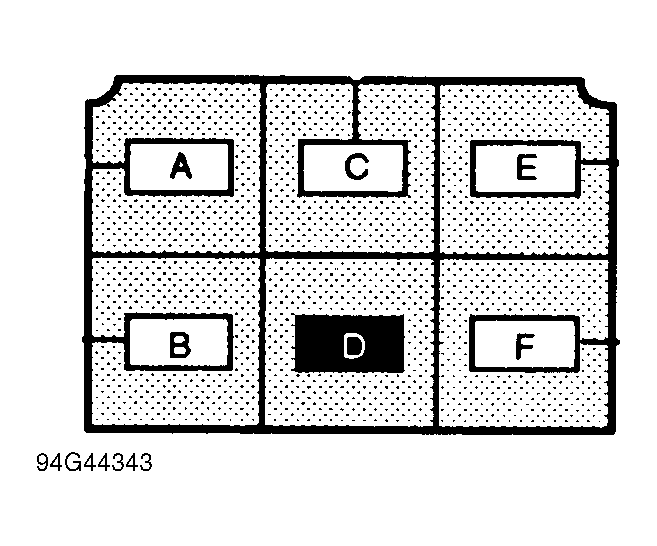

Fig 1: Identifying Fuel Pump Relay Terminals
G94G44343Courtesy of FORD MOTOR CO.
