Component Locations

COMPONENT LOCATIONS

Component Location
Circuit Breaker Behind Left Side Of Instrument Panel, Near Cowl Panel, Left Of Instrument Panel Fuse Block
Diode Junction Block Behind Top Left Side Of Instrument Panel, Taped To Main Wiring Harness
Instrument Fuse Panel Behind Instrument Panel, Left Of Steering Column
Left front Power Window Motor In Center Of Left Front Door
Master Window Control Switch Front Of Left Front Door, In Armrest
Power Window Module In Rear Of Left Front Door

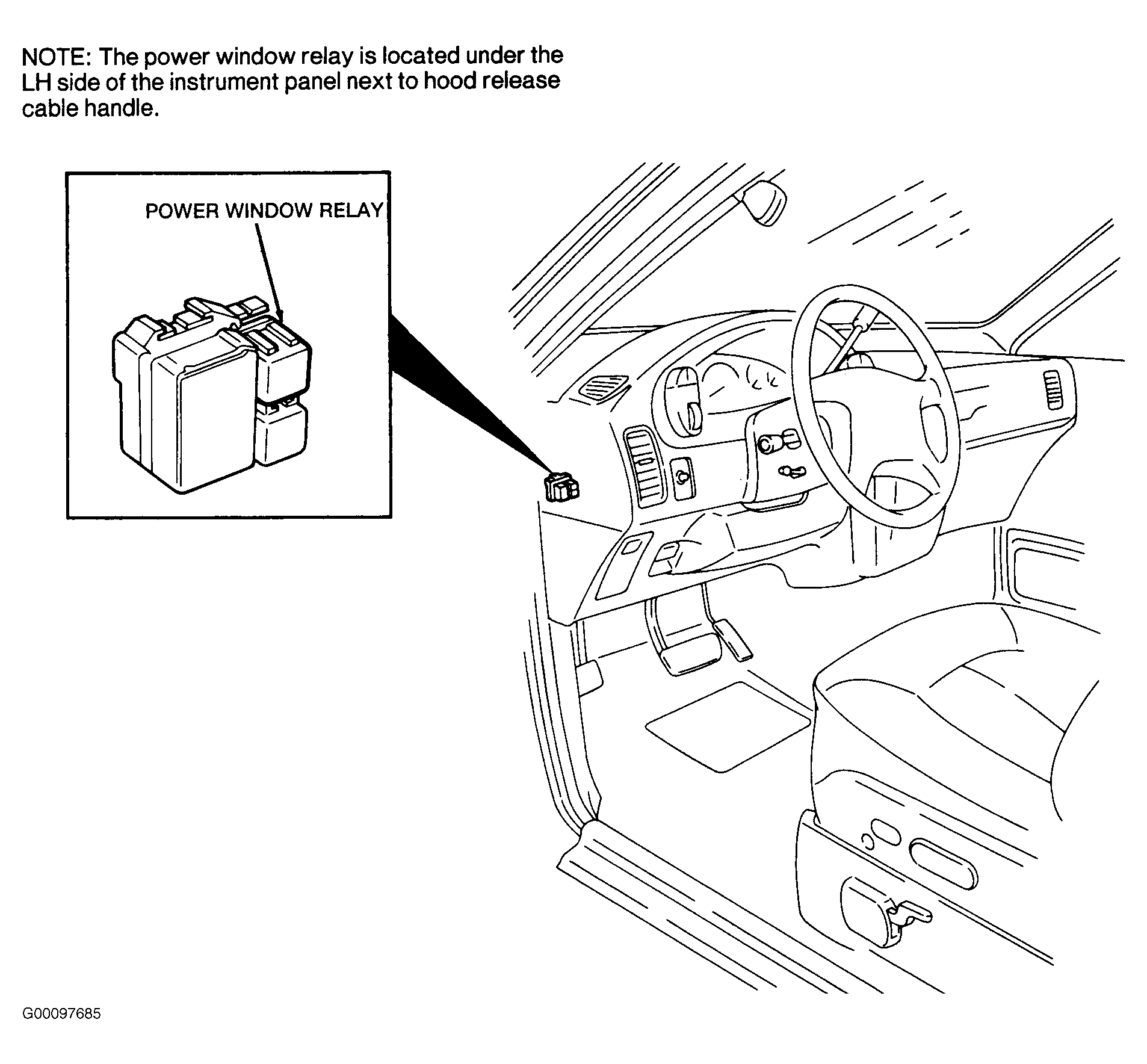

Power Window Relay Behind Left Side Of Instrument Panel. See Figure.

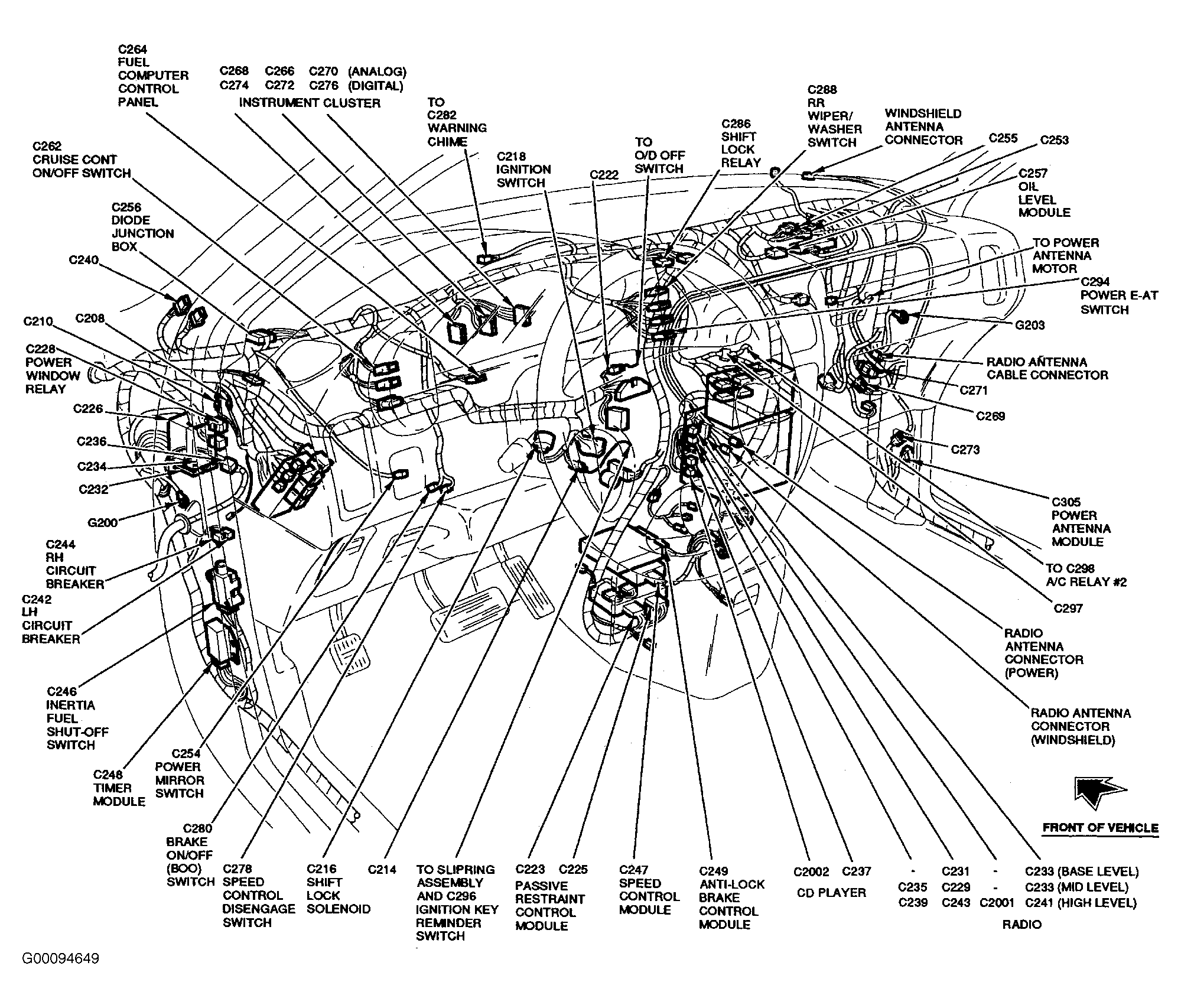

Fig 1: Locating Power Window System Components (1 of 2)
G00097649Courtesy of FORD MOTOR CO.

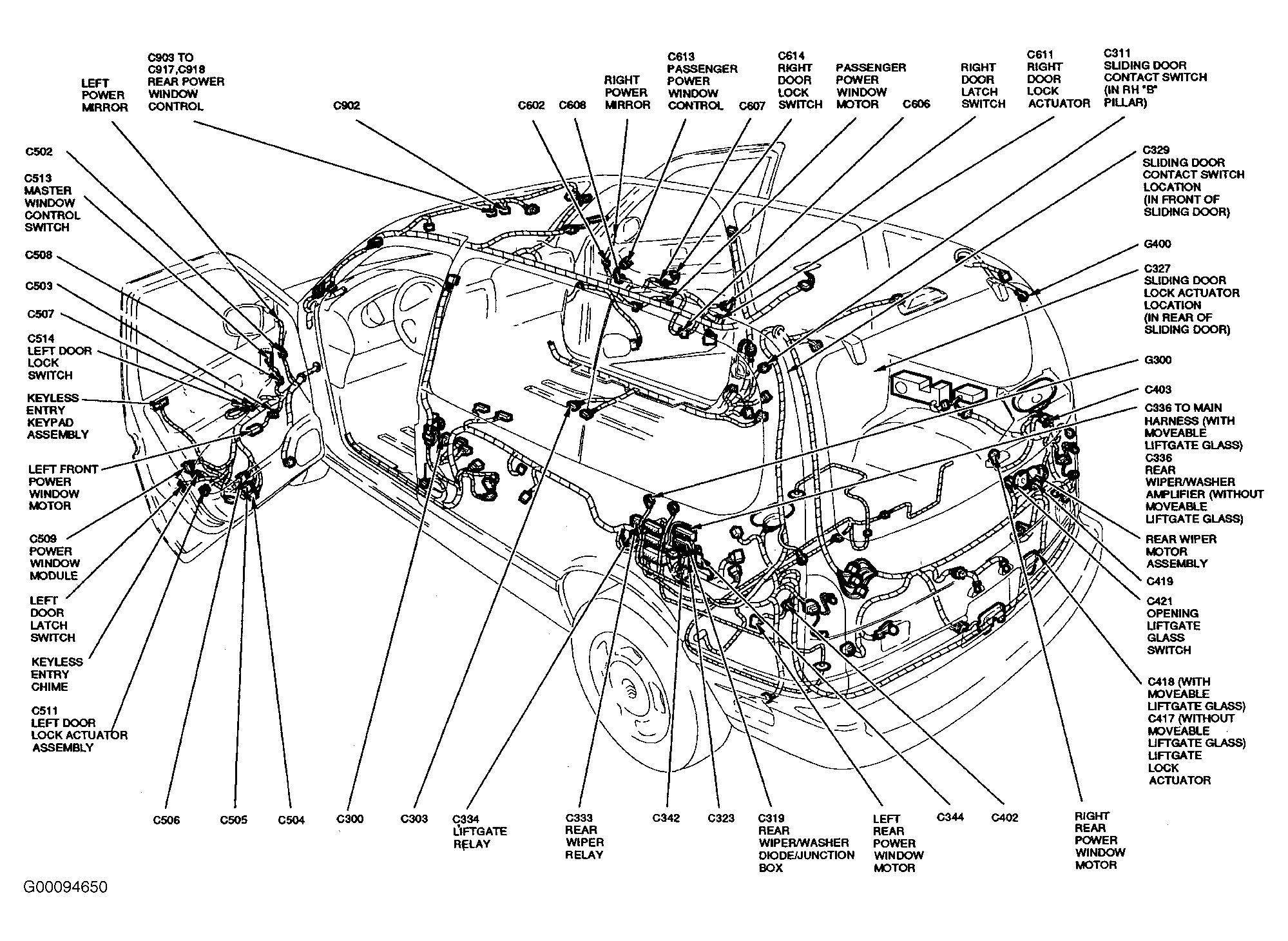

Fig 2: Locating Power Window System Components (2 of 2)
G00097650Courtesy of FORD MOTOR CO.
