Master Switch
- Turn the ignition switch to OFF position.

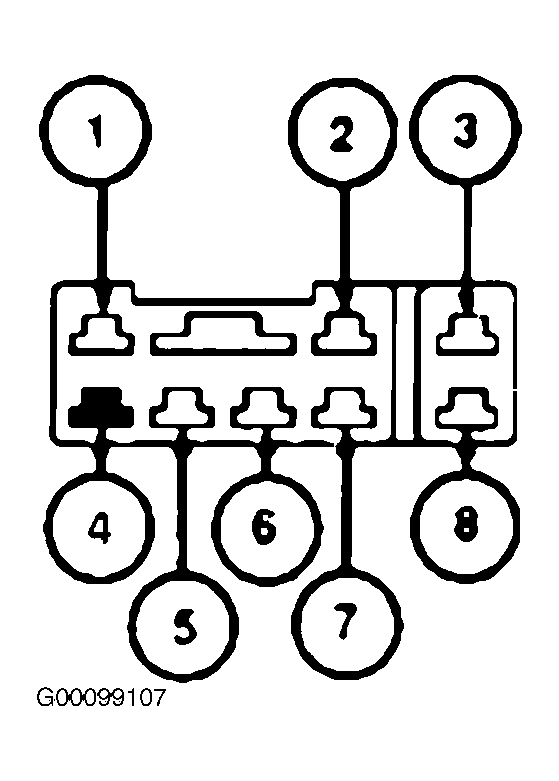

- Disconnect the master window regulator control switch connector located on the left front door trim panel. Measure the resistance between the specified wire terminals on the master window regulator control switch. See MASTER WINDOW SWITCH TEST table. See Figure.
- If the master window regulator control switch does not operate as specified, replace the master window regulator control switch. See POWER WINDOW SWITCH under REMOVAL & INSTALLATION.
MASTER WINDOW SWITCH TEST
| Control Switch | Switch Position | Test Between Terminals No. |
|---|---|---|
| Left | UP | 1-7 |
| Left | Neutral | 1-8 |
| Left | DOWN | 2-1, 2-8 &1-8 |
| Left | One-Touch | 3-2, 3-1, 3-8, 2-1, 2-8 &1-8 |
| Right | UP | 8-6 & 7-5 |
| Right | Neutral | 8-6, 8-5 & 6-5 |
| Right | DOWN | 8-5 & 7-6 |
| Lock | OFF | 8-6 |
