Right Front Switch
- Turn the ignition switch to OFF position.
- Remove the right window regulator control switch. See POWER WINDOW SWITCH under REMOVAL & INSTALLATION.
- Leave the electrical connector connected.
- Turn the ignition switch to ON position.

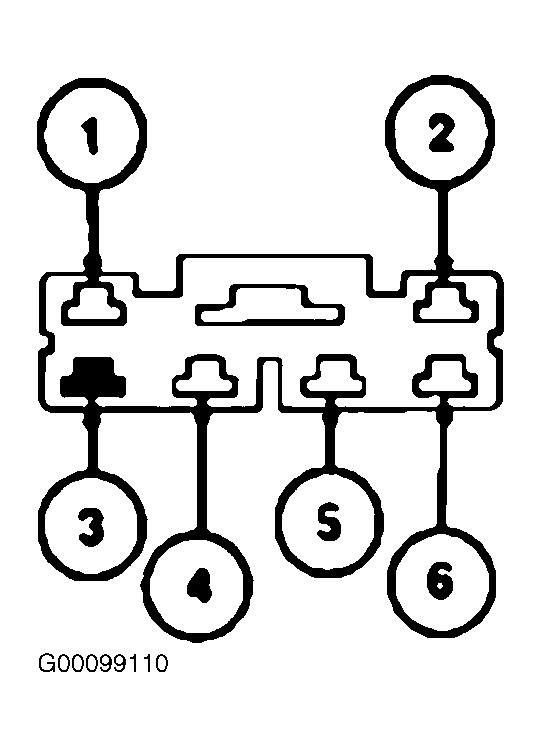

- Check for voltage at the right window regulator control switch terminals, while moving the right window regulator control switch. See RIGHT WINDOW CONTROL SWITCH TEST . See Fig 1.
RIGHT WINDOW CONTROL SWITCH TEST
| Switch Position | Check Terminal No. | Voltage |
|---|---|---|
| UP | 1 | Less Than 1 |
| UP | 4 | More Than 10 |
| Neutral | 1 | Less Than 1 |
| Neutral | 4 | Less Than 1 |
| DOWN | 1 | More Than 10 |
| DOWN | 4 | Less Than 1 |
