Power Rear Quarter Glass Switch

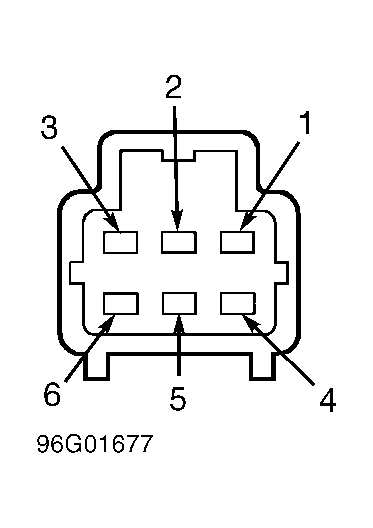

Disconnect power rear quarter window switch located in control panel on the roof mounted overhead console. Using ohmmeter, check continuity between indicated terminals with switch in indicated position. See the POWER REAR QUARTER GLASS SWITCH CONTINUITY table. See Fig 1 . If resistances are not as specified, replace switch.
POWER REAR QUARTER GLASS SWITCH CONTINUITY
| Switch Position/Terminal Nos. | Continuity | ||
|---|---|---|---|
| Left | |||
| OPEN | |||
| 6 & 3 | Yes | ||
| 5 & 3 | No | ||
| 6 & 4 | No | ||
| 5 & 4 | Yes | ||
| Normal | |||
| 6 & 3 | No | ||
| 5 & 3 | No | ||
| 6 & 4 | No | ||
| 5 & 4 | No | ||
| CLOSE | |||
| 6 & 3 | No | ||
| 5 & 3 | Yes | ||
| 6 & 4 | Yes | ||
| 5 & 4 | No | ||
| Right | |||
| OPEN | |||
| 2 & 3 | Yes | ||
| 1 & 3 | No | ||
| 2 & 4 | No | ||
| 1 & 4 | Yes | ||
| Normal | |||
| 2 & 3 | No | ||
| 1 & 3 | No | ||
| 2 & 4 | No | ||
| 1 & 4 | No | ||
| CLOSE | |||
| 2 & 3 | No | ||
| 1 & 3 | Yes | ||
| 2 & 4 | Yes | ||
| 1 & 4 | No | ||
