Diagnostic Aids

Perform this test only when directed here. This test is intended to diagnose the following:

• Fuel supply system.
• Fuel pressure regulator and fuel return.
• Fuel filter.
• Engine vacuum.
• Fuel Injectors.

To prevent replacement of good components, be aware the following items may be the cause of problem:

• Leaking fuel lines.
• Damaged vacuum lines.
• Leaking fuel injectors.
• Ensure sufficient fuel in tank.
• Inertia switch tripped.
• Blown 15-amp FUEL PUMP or 10-amp RELAYS fuse.
  WARNING: Fuel may be under high pressure even when engine is not running. To relieve fuel pressure, remove 15-amp FUEL PUMP fuse located in interior fuse panel. Start engine and run until stalling. If engine does not start, crank engine several times. When disconnecting fuel lines, cover with shop towel.
  NOTE: See SYMPTOM DIRECTORY  table for proper starting diagnostic step.

1. 1) Check System Integrity

   Turn ignition off. Inspect fuel system for leaks, damaged, kinked or cracked hoses. Inspect wiring harness for damage or loose connectors. Ensure battery is fully charged and fuses are okay. If vehicle does not start, ensure vehicle has fuel in tank and inertia fuel shutoff switch is not tripped. Repair or replace as necessary. If no faults are found, go to next step.
2. 2) Check Fuel Pressure

   Release fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE in REMOVAL, OVERHALL & INSTALLATION - TRUCKS article. Turn ignition off. Install fuel pressure gauge. Turn ignition on and observe fuel pressure. Start engine and observe fuel pressure. If fuel pressure is about 43 psi (294 kPa) with key on engine off and about 34 psi (234 kPa) with engine running, go to step  40). If fuel pressure is zero, go to next step. If fuel pressure is low, go to step  20). If fuel pressure is high, go to step  30).
3. 3) Check Power To Fuel Pump Relay

   Turn ignition off. Unplug fuel pump harness connector. Turn ignition on. Within 5 seconds of turning ignition switch on, measure voltage at Light Green/Red wire at fuel pump harness connector. If voltage is greater than 10 volts, go to step  9). If voltage is 10 volts or less, go to next step.
4. 4) Check Power To Fuel Pump Relay

   Remove fuel pump relay from engine compartment left relay block. Turn ignition on. Measure voltage on Black/Red wire at fuel pump relay connector. If voltage is greater than 10 volts, go to next step. If voltage is 10 volts or less, check 15-amp FUEL PUMP fuse and 10-amp RELAYS fuse. If fuse repeatedly blows, repair shorted circuit. See appropriate wiring diagram in WIRING DIAGRAMS article.
5. 5) Check Fuel Pump Relay

   Turn ignition off. Remove fuel pump relay from engine compartment relay block. Apply battery voltage between relay terminals "A" and "B". Measure resistance between relay terminals "C" and "D". See Fig 1. Resistance should be less than 5 ohms. Remove battery voltage. Resistance between terminals "C" and "D" should be greater than 10 k/ohms. Replace relay if resistance is not as specified. If resistance is okay, go to next step.

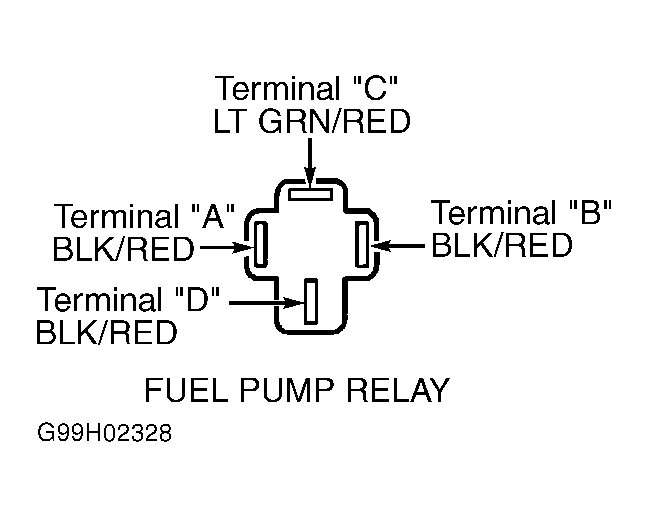

   Fig 1: Identifying Fuel Pump Relay Terminals

   Courtesy of FORD MOTOR CO.
6. 6) Check Relay Ground Circuit

   Turn ignition off. Remove fuel pump relay from engine compartment relay block. Disconnect PCM and inspect connector for damage. Measure resistance of FPR circuit (Blue/Red wire) between fuel pump relay connector and PCM connector terminal No. 11. If resistance is less than 5 ohms, go to next step. If resistance is 5 ohms or more, repair Blue/Red wire for open circuit.
7. 7) Check Fuel Pump Power Wire For Open

   Turn ignition off. Remove fuel pump relay from engine compartment relay block. Disconnect fuel pump harness connector. Measure resistance of Light Green/Red wire circuit between fuel pump harness connector and relay harness connector. If resistance is less than 5 ohms, go to next step. If resistance is greater than 5 ohms, repair open Light Green/Red wire. Restore all electrical connections and repeat QUICK TEST .
8. 8) Check Fuel Pump Power Wire For Short

   Turn ignition off. Remove fuel pump relay from engine compartment relay block. Disconnect fuel pump harness connector. Ensure inertia switch is not tripped. Measure resistance between Light Green/Red wire at fuel pump relay connector and ground. Also measure resistance between Blue/Red and Black/Red wires at fuel pump relay harness connector. See Fig 2. If resistances are greater than 10 k/ohms, go to next step. If resistance is less than 10 k/ohms, repair shorted wire in question. Restore all electrical connections and repeat QUICK TEST .

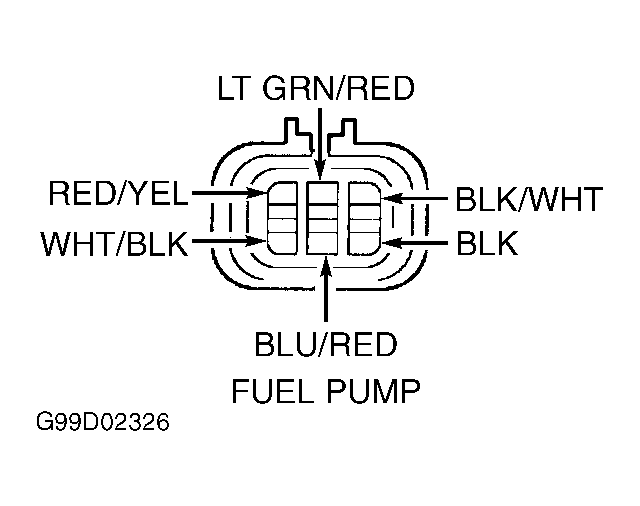

   Fig 2: Identifying Fuel Pump Connector Terminals

   Courtesy of FORD MOTOR CO.
9. 9) Check Fuel Pump

   Turn ignition off. Disconnect fuel pump. Measure resistance between Black/White and Light Green/Red wire terminals on fuel pump. If resistance is 0.2-5.0 ohms, go to next step. If resistance is not 0.2-5.0 ohms, replace fuel pump. Restore all electrical connections and repeat QUICK TEST .
10. 10) Check Fuel Pump Ground

    Turn ignition off. Remove fuel pump relay from engine compartment relay block. Disconnect fuel pump harness connector. Measure resistance of Black/White wire between fuel pump harness connector and ground. If resistance is less than 5 ohms, go to step  13). If resistance is greater than 5 ohms, go to next step.
11. 11) Check Inertia Fuel Shutoff Switch

    Turn ignition off. Disconnect Inertia Fuel Shutoff (IFS) switch. If IFS switch is tripped, reset switch. Vigorously shake IFS switch to ensure switch trips. Measure resistance of IFS switch Black/White and Black terminals. See Fig 3. See IFS SWITCH TESTING  table. If resistances are to specification and switch trips when shaken, go to next step. If resistances are not to specification, replace IFS switch. Repeat QUICK TEST .
    Fig 3: Identifying Inertia Fuel Shutoff Switch Connector Terminals

    Courtesy of FORD MOTOR CO.
    IFS SWITCH TESTING



    Switch Condition	Resistance
    Open (Tripped)	More Than 10,000 Ohms
    Closed (Set)	Less Than 5 Ohms

12. 12) Check Ground At IFS Switch

    Turn ignition off. Disconnect IFS switch. Measure resistance of Black wire between IFS harness connector and ground. If resistance is greater than 5 ohms, repair Black wire. Restore electrical connections and repeat QUICK TEST . If resistance is less than 5 ohms, repair Black/White wire between IFS switch and fuel pump.
13. 13) Check Fuel Pump Deadhead Pressure

    Restore all electrical connections. Relieve fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE in REMOVAL, OVERHAUL & INSTALLATION - TRUCKS article. Connect a fuel pressure gauge to fuel filter. Close all valves on fuel pressure gauge to check deadhead pressure (maximum fuel pump pressure). Turn ignition on and off 5 times to build maximum pressure. If maximum fuel pressure is 43 psi (294 kPa), go to step  21). If fuel pressure is less than 43 psi (294 kPa), replace fuel pump. Repeat QUICK TEST .
    NOTE: A break in step numbering sequence occurs at this point. Procedure skips from step 13) to step 20). No test procedures have been omitted.
14. 20) Check Fuel Pump Power Supply

    Turn ignition off. Disconnect fuel pump harness connector. Turn ignition on. Measure voltage at Light Green/Red wire at fuel pump harness connector. If voltage is greater than 10 volts, go to next step. If voltage is 10 volts or less, go to step  3).
15. 21) Check Fuel Filter

    Relieve fuel pressure. Remove fuel filter. Check fuel filter for restriction. Replace if necessary. If fuel filter is okay, go to next step.
16. 22) Check Pressure Regulator Diaphragm

    Relieve fuel pressure. Install fuel pressure gauge to fuel system service port. Start engine and operate for 10 seconds. Turn ignition off and wait 10 seconds. Start engine again and operate for 10 seconds. Turn ignition off. Disconnect and inspect vacuum hose from fuel pressure regulator. If hose is wet with fuel, replace fuel pressure regulator. If hose is dry, connect a vacuum pump to port on pressure regulator and apply vacuum. If fuel pressure decreases when vacuum is applied, go to next step. If fuel pressure does not change, replace fuel pressure regulator.
17. 23) Check Fuel Pump Volume

    Relieve fuel pressure. Install fuel pressure gauge to fuel system service port. Route fuel pressure gauge by-pass hose into a measuring container. Turn ignition on. Fuel pump will run for 5 seconds. Turn ignition off. Turn ignition on again and let pump run for 5 seconds. If amount of fuel collected is 3-5 ounces (94-157 cc), go to next step. If amount of fuel collected is less than 3 ounces (94 cc), clean fuel pump inlet screen and repeat this test. If fuel volume is still not adequate, replace fuel pump and recheck fuel pressure and volume.
18. 24) Check Fuel Pump Check Valve

    Install fuel pressure gauge. Turn ignition on. Fuel pump will run for 5 seconds. Turn ignition off. Note fuel pressure. Recheck fuel pressure after 3 minutes. If fuel pressure drops more than 8 psi (55 kPa) within 3 minutes, replace fuel pump. Recheck fuel pressure and repeat QUICK TEST . If fuel pressure does not drop 8 psi (55 kPa) within 3 minutes, go to step  40).
    NOTE: A break in step numbering sequence occurs at this point. Procedure skips from step 24) to step 30). No test procedures have been omitted.
19. 30) Check Regulator For Cause Of High Pressure

    Inspect fuel pressure regulator for dents that could cause higher than normal spring tension on pressure regulator valve. Remove vacuum hose from pressure regulator and inspect for fuel leakage. Replace pressure regulator if necessary. If fuel pressure regulator is okay, go to next step.
20. 31) Check Fuel Return Line

    Relieve fuel pressure. Disconnect fuel return line at pressure regulator and at fuel tank. Blow through fuel return line with 5-10 psi (35-69 kPa) of regulated shop air. If return line is restricted, repair or replace as necessary. If line is not restricted, replace fuel pressure regulator and recheck fuel pressure.
    NOTE: A break in step numbering sequence occurs at this point. Procedure skips from step 31) to step 40). No test procedures have been omitted.
21. 40) Inspect Fuel Injectors

    With engine idling (cranking if engine won't start) listen for a regular clicking sound from each injector using a stethoscope. If a regular clicking sound can be heard from each injector, go to step  43). If a regular clicking sound cannot be heard from each injector, go to next step.
22. 41) Check Fuel Injector Resistance

    Relieve fuel pressure. Disconnect fuel injector harness connectors. Measure resistance of each fuel injector. If resistance is 10-14 ohms, go to next step. If resistance is not 10-14 ohms, replace faulty injector(s) and return to step  40). If testing in step 40)  shows components are okay, go to step  43).
23. 42) Check Fuel Injector Signal

    Disconnect injector. Insert fuel injector checker noid light into injector harness connector. Start or crank engine and observe noid light. Repeat procedure for all injectors. If all injector circuits indicate continuity, go to next step. If any injector circuit does not indicate continuity, go to TEST H , step 45)  .
24. 43) Check Injectors For Leakage

    Turn ignition off. Relieve fuel pressure. Remove fuel rail assembly from intake manifold (leave hoses and injectors attached). Turn ignition on (do not crank engine). If any injector leakage is observed, replace or clean leaky injector. Repeat QUICK TEST . If no injector leakage is observed, the fuel delivery system is okay, proceed to TEST Z  for intermittent diagnostics.
