Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

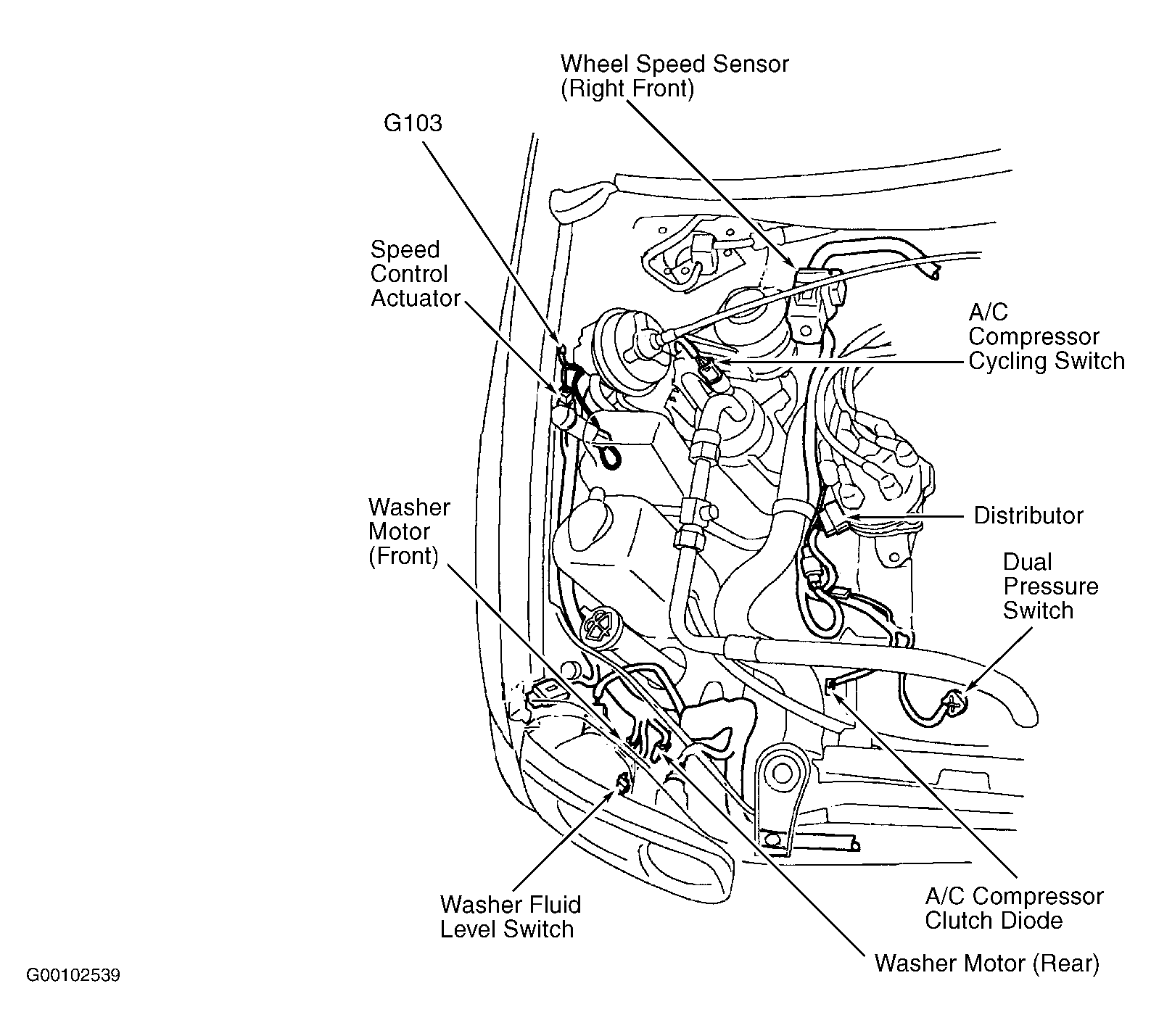

Fig 1: Right Side Of Engine Compartment

Courtesy of FORD MOTOR CO.

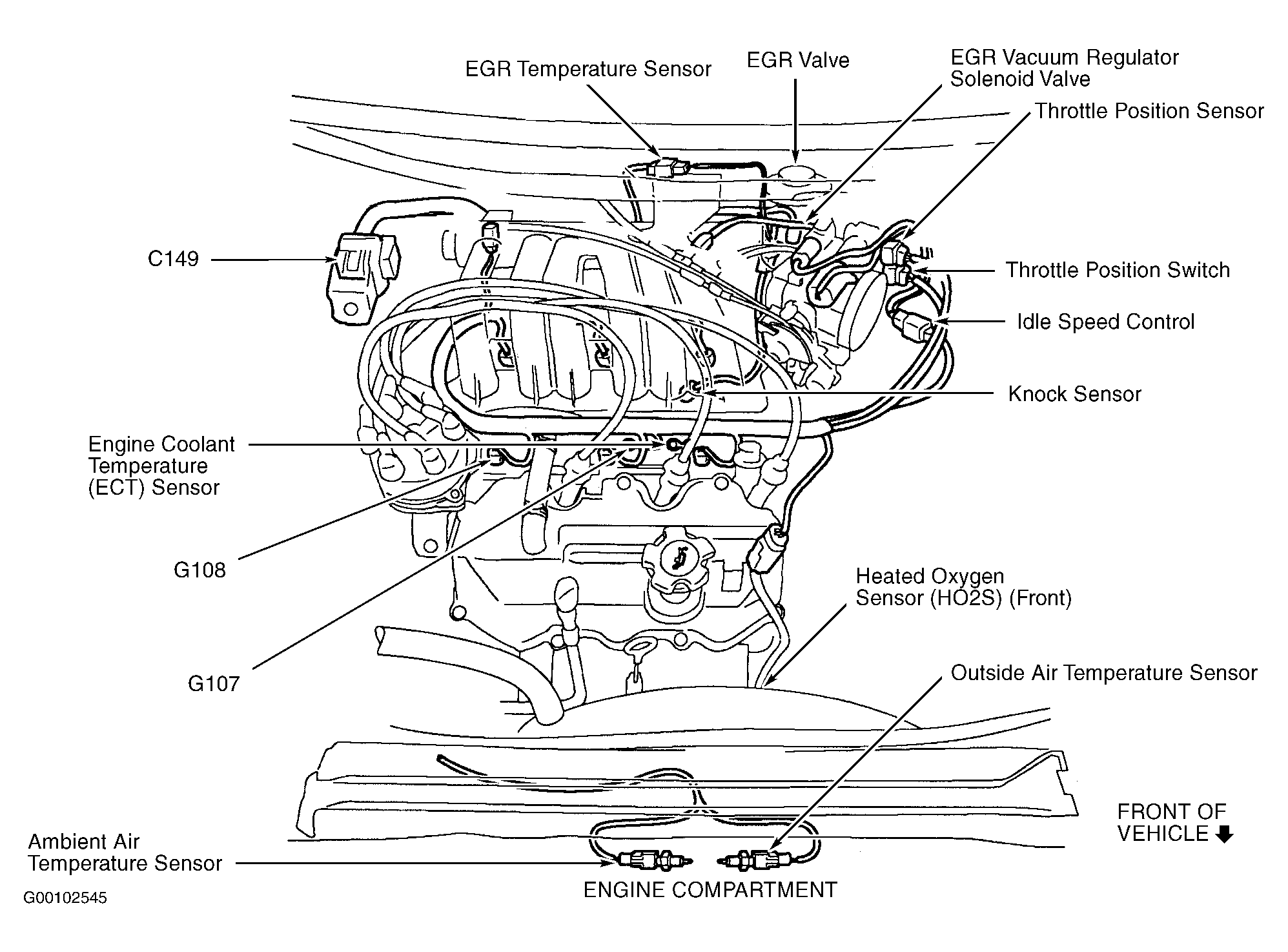

Fig 2: Engine Compartment

Courtesy of FORD MOTOR CO.

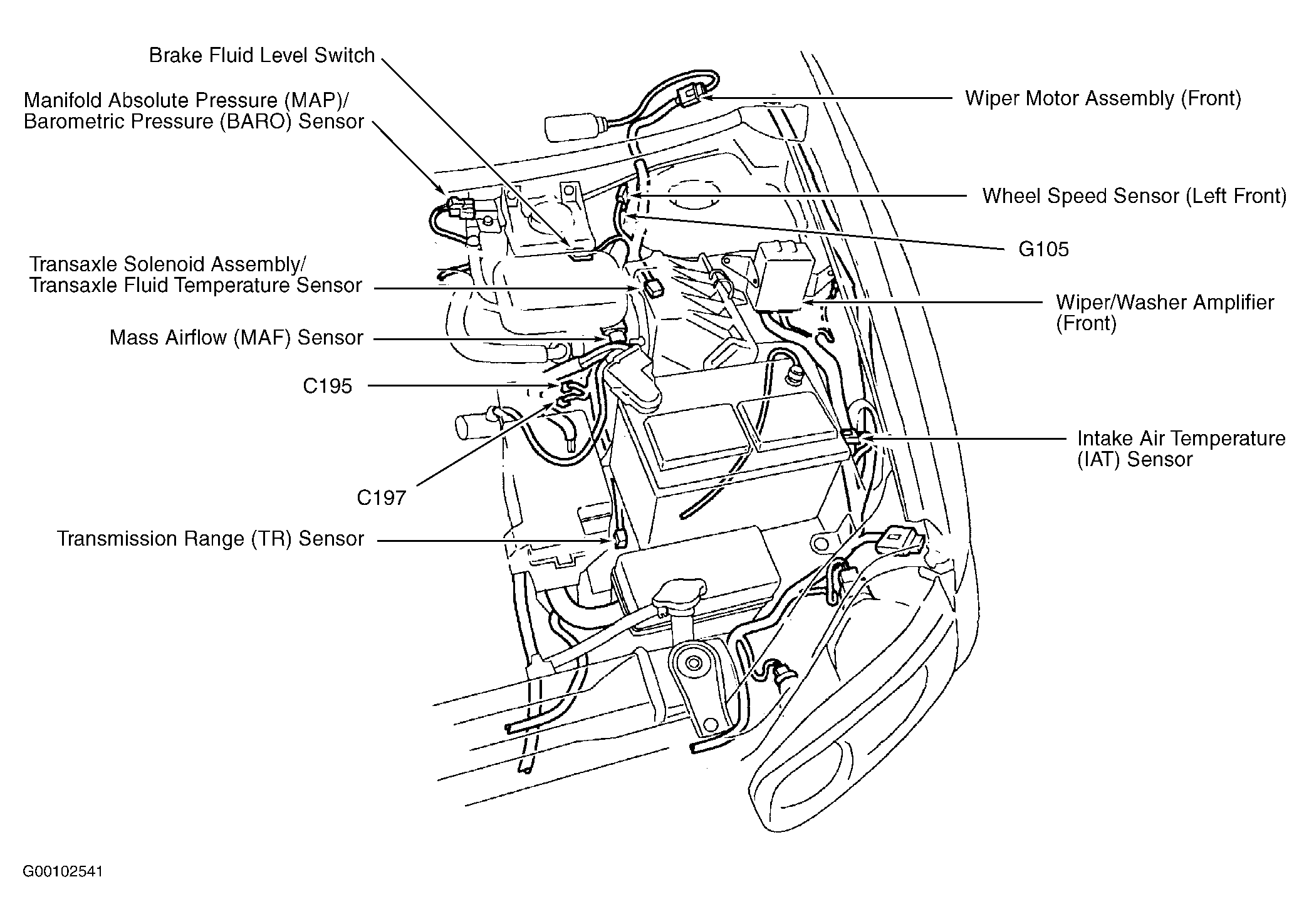

Fig 3: Left Side Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 4: Left Side Of Dash

Courtesy of FORD MOTOR CO.

Fig 5: Center Of Dash

Courtesy of FORD MOTOR CO.

Fig 6: Right Side Of Dash

Courtesy of FORD MOTOR CO.

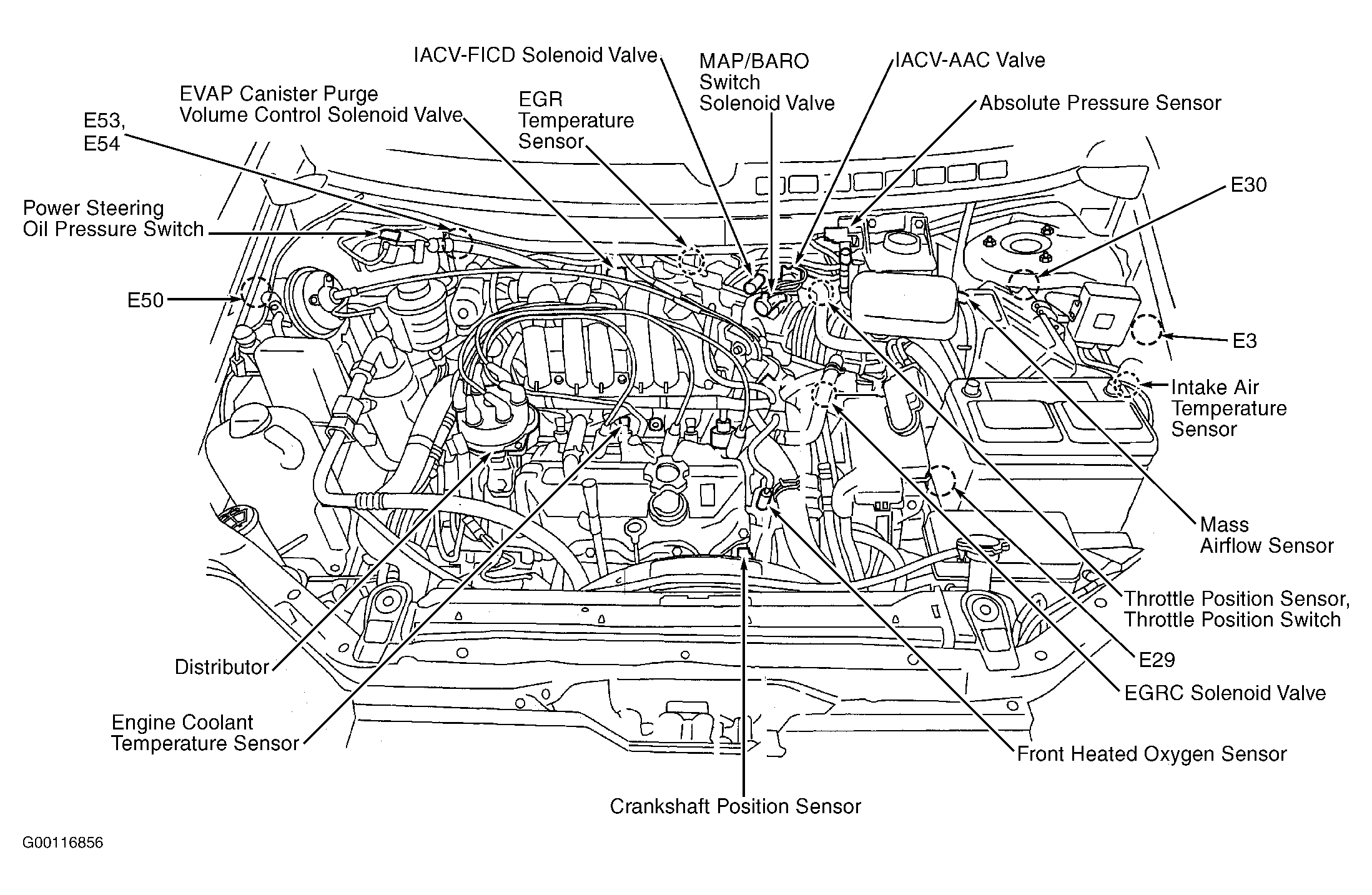

Fig 7: Engine Compartment
