Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | On left side of engine compartment, below master cylinder. |

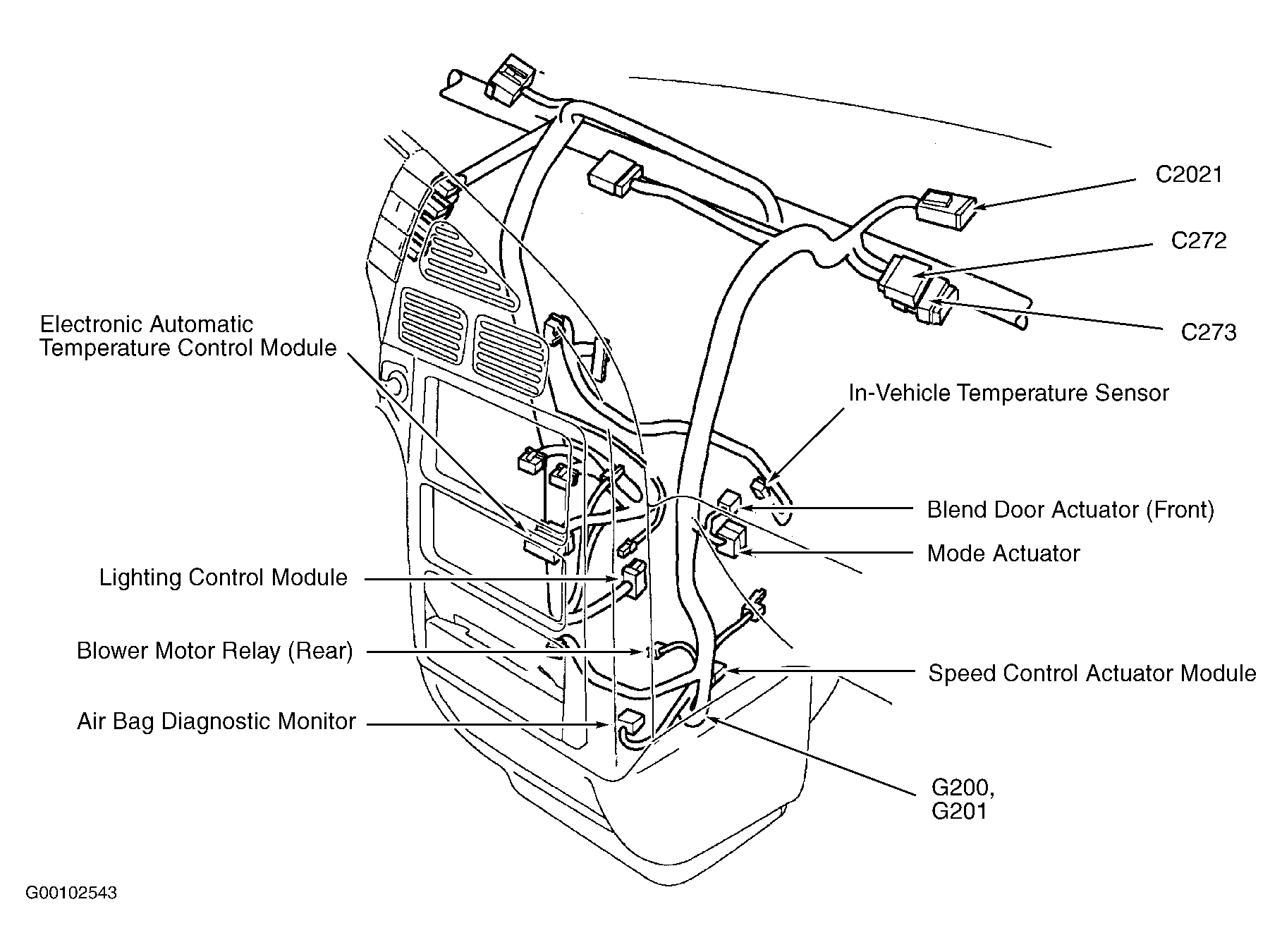

| Air Bag Diagnostic Monitor | Behind center of dash. See Figure. |

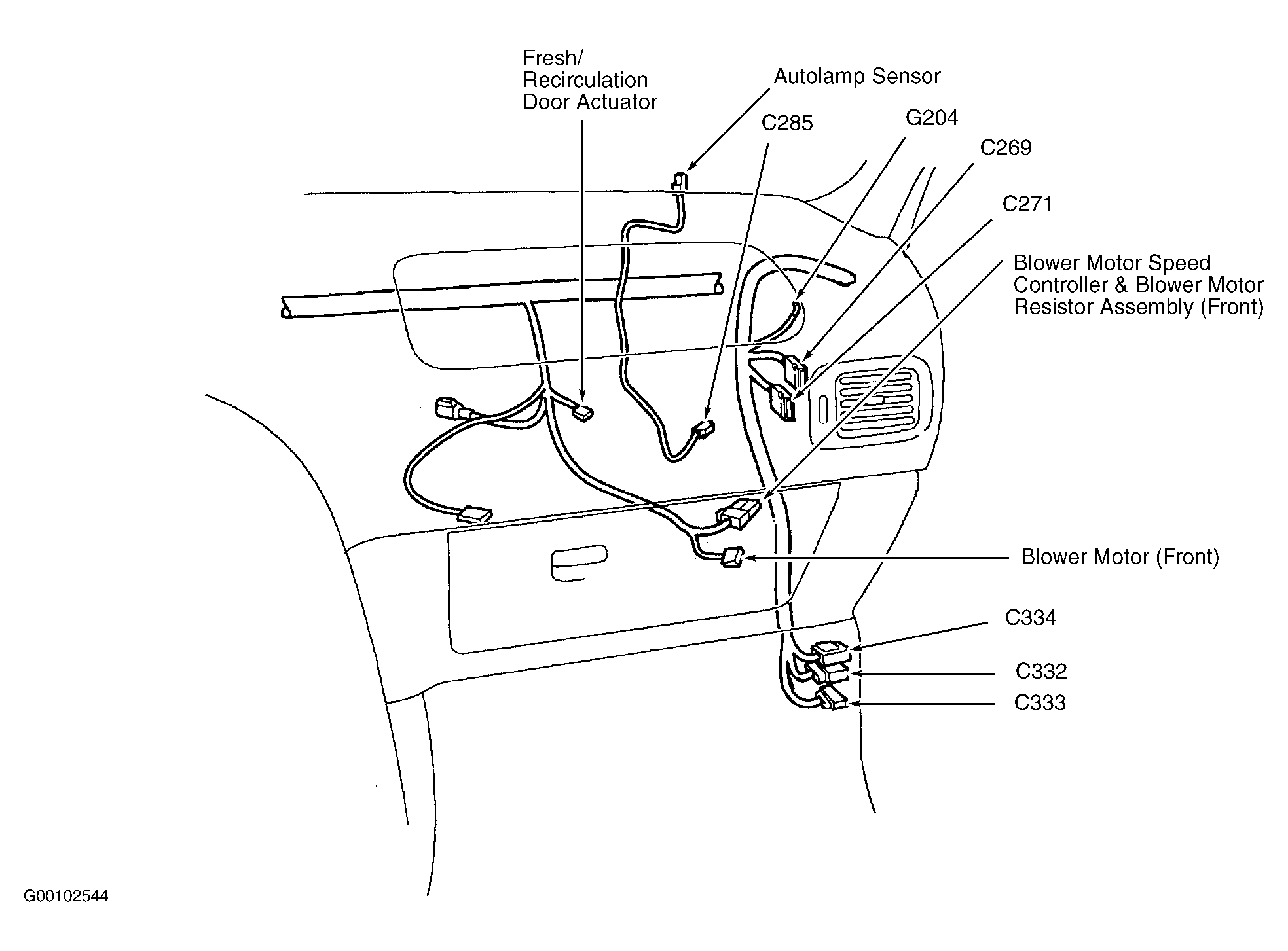

| Blower Motor Speed Controller (Front) | Behind right side of dash. See Figure. |
| Driver's Seat Module | Under driver's seat. |
| Electronic Automatic Temperature Control (EATC) Module | Behind center of dash. See Figure. |

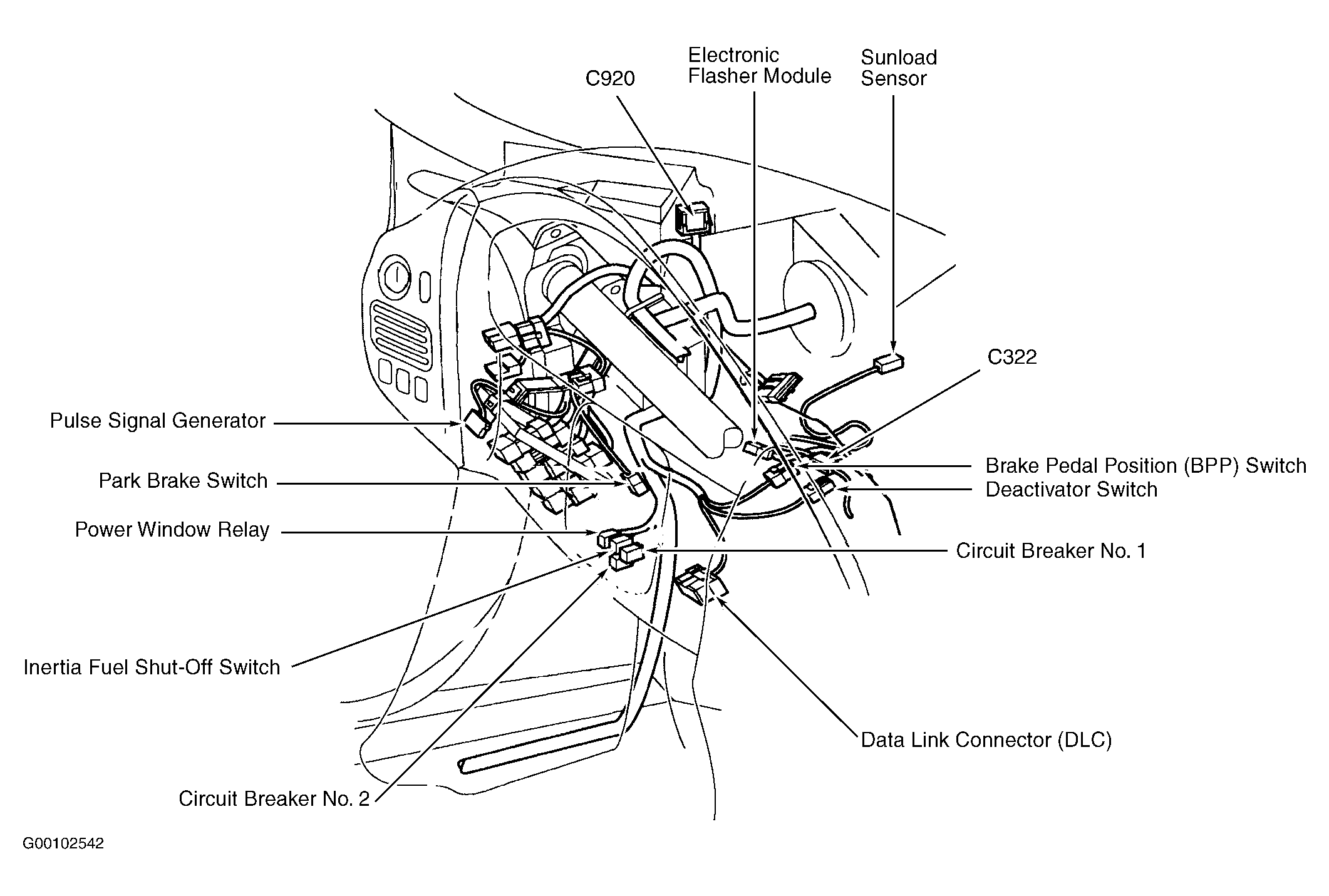

| Electronic Flasher Module | Behind left side of dash, to right of steering column. See Figure. |
| Fuel Pump Module | At fuel tank. |
| Lighting Control Module | Behind center of dash. See Figure. |
| Passenger's Air Bag Module | Behind right side of dash. |
| Powertrain Control Module (PCM) | Behind right side of dash, behind glove box. |
| Rear Seat Entertainment (RSE) Module | Under rear center console. |
| Smart Entry Control/Timer Module | Behind top center of dash. |
| Speed Control Actuator Module | Behind center of dash, mounted on center dash support bracket. See Figure. |
| Trailer Tow Control Unit | Behind panel, left rear of luggage compartment. |
| Transaxle Control Module (TCM) | Behind instrument cluster. |
