Knock Sensor: Installation

Install the knock sensor and bolt. Connect the electrical connector.

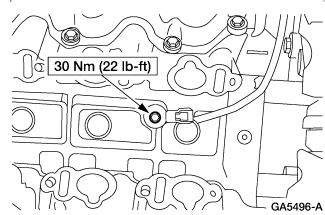

Fig 1: Identifying Knock Sensor
Courtesy of FORD MOTOR CO.
Install the coolant crossover tube. Position the coolant crossover tube. Install the bolts.

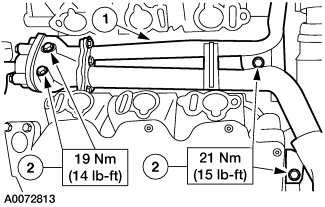

Fig 2: Identifying Coolant Crossover Tube
Courtesy of FORD MOTOR CO.
Install the water bypass hose. Position the hose. Position the clamp.

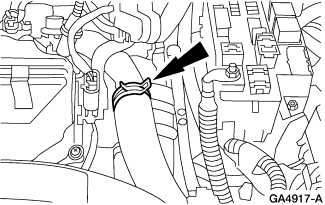

Fig 3: Identifying Water Bypass Hose
Courtesy of FORD MOTOR CO.
Connect the lower radiator hose to the coolant crossover tube and position the clamp.

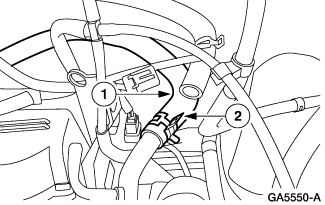

Fig 4: Identifying Lower Radiator Hose
Courtesy of FORD MOTOR CO.
Connect the heater core hose to the coolant crossover tube. Connect the tube. Position the clamp.

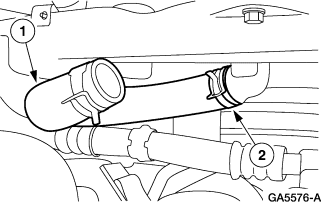

Fig 5: Identifying Heater Core Hose
Courtesy of FORD MOTOR CO.
Install the lower intake manifold. For additional information, refer to LOWER INTAKE MANIFOLD .
