Knock Sensor: Removal

Remove the lower intake manifold. For additional information, refer to LOWER INTAKE MANIFOLD .
Disconnect the heater core hose from the coolant crossover tube. Release the clamp. Disconnect the hose.

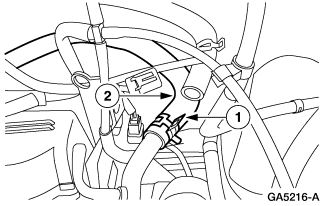

Fig 1: Identifying Heater Core Hose
Courtesy of FORD MOTOR CO.
Release the clamp and remove the lower radiator hose from the coolant crossover tube.

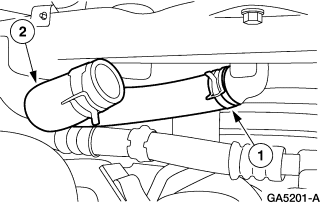

Fig 2: Identifying Lower Radiator Hose
Courtesy of FORD MOTOR CO.
Remove the water bypass hose from the thermostat housing. Release the clamp. Remove the hose.

Fig 3: Identifying Water Bypass Hose
Courtesy of FORD MOTOR CO.
Remove the coolant crossover tube. Remove the bolts. Remove the tube.

Fig 4: Identifying Coolant Crossover Tube
Courtesy of FORD MOTOR CO.
Remove the knock sensor (KS). Disconnect the electrical connector. Remove the bolt.
