Lamp Portion

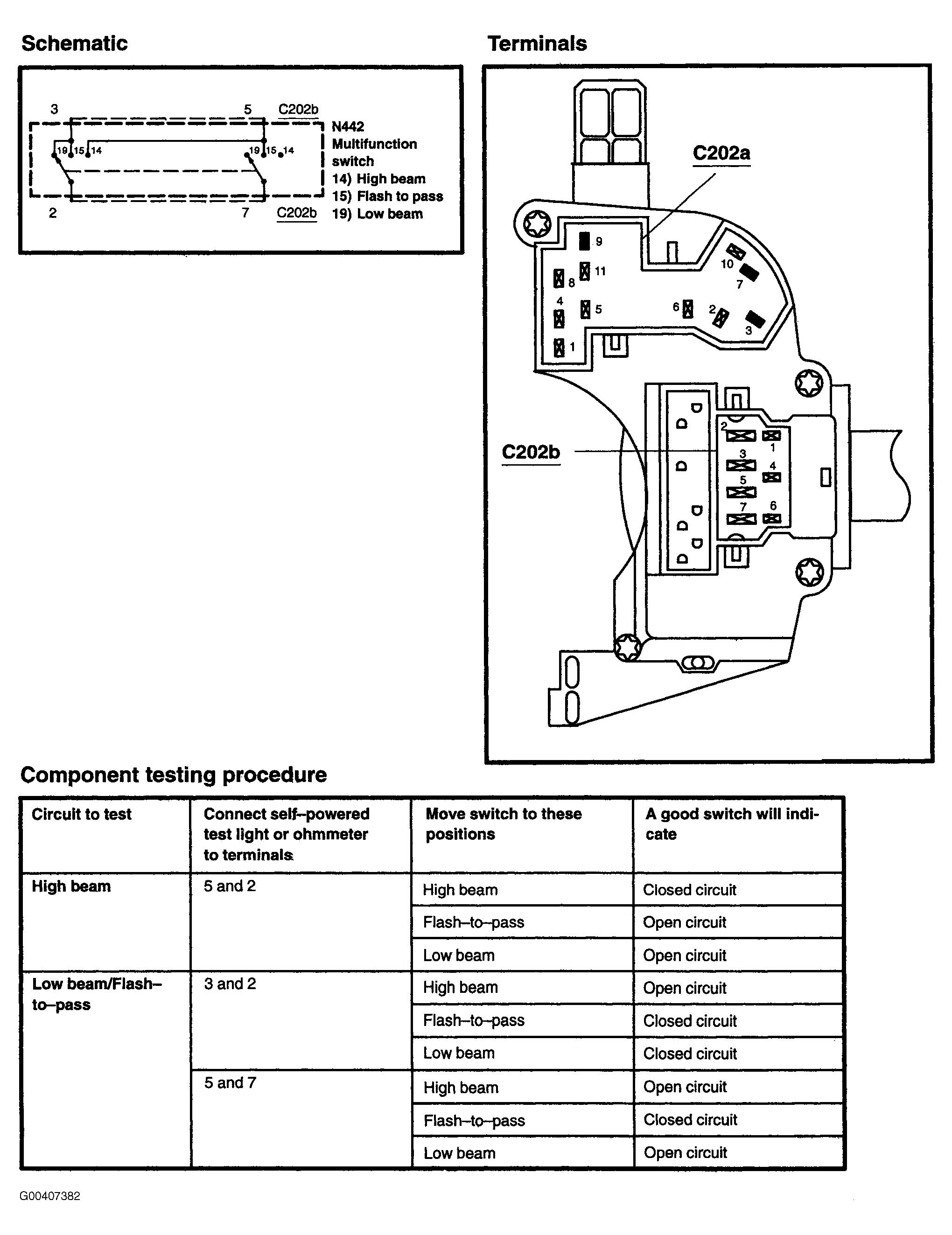

Fig 1: Testing Multifunction Switch (Lamp Portion) (1 Of 3)
G00407382Courtesy of FORD MOTOR CO.

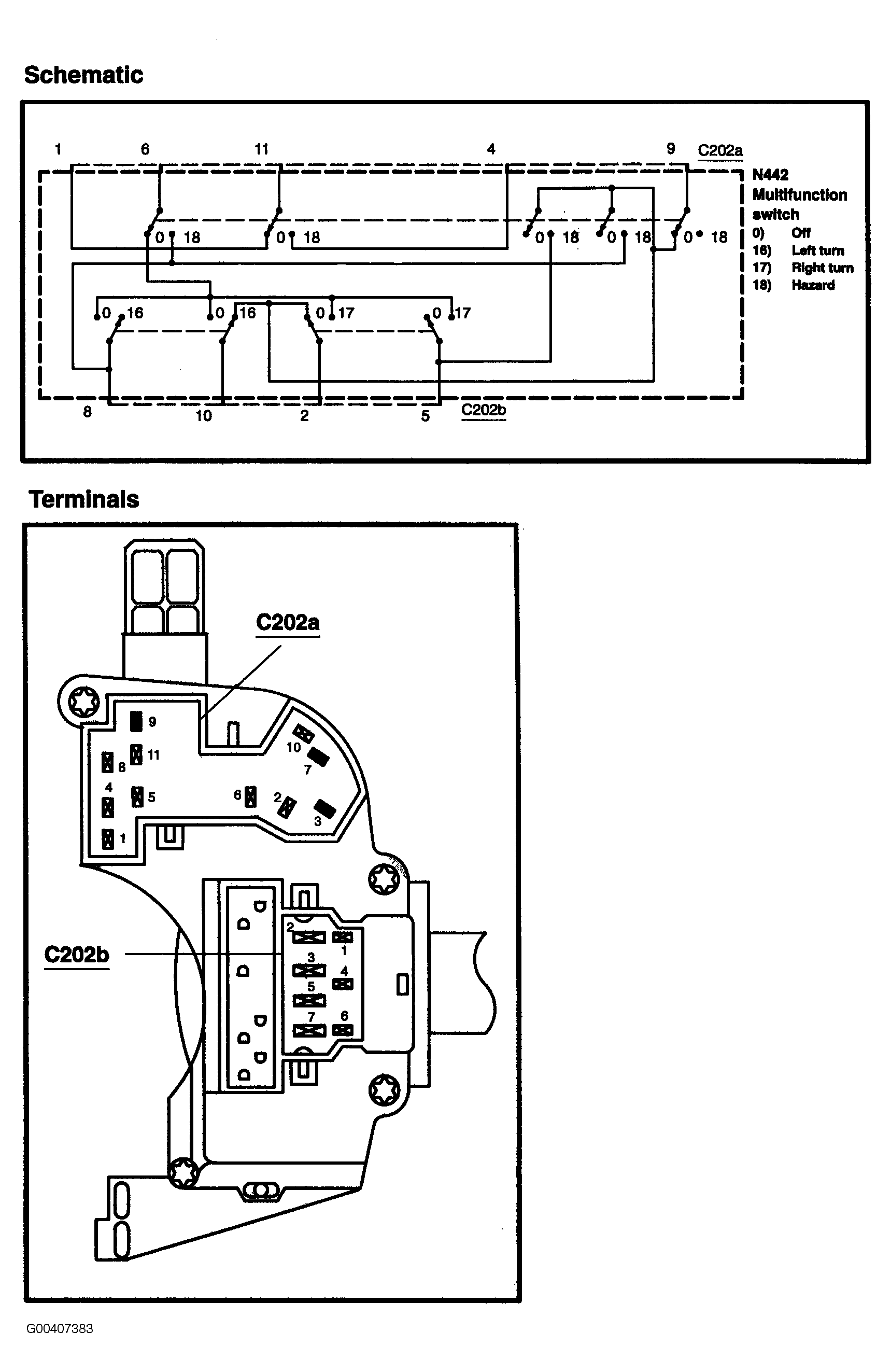

Fig 2: Testing Multifunction Switch (Lamp Portion) (2 Of 3)
G00407383Courtesy of FORD MOTOR CO.

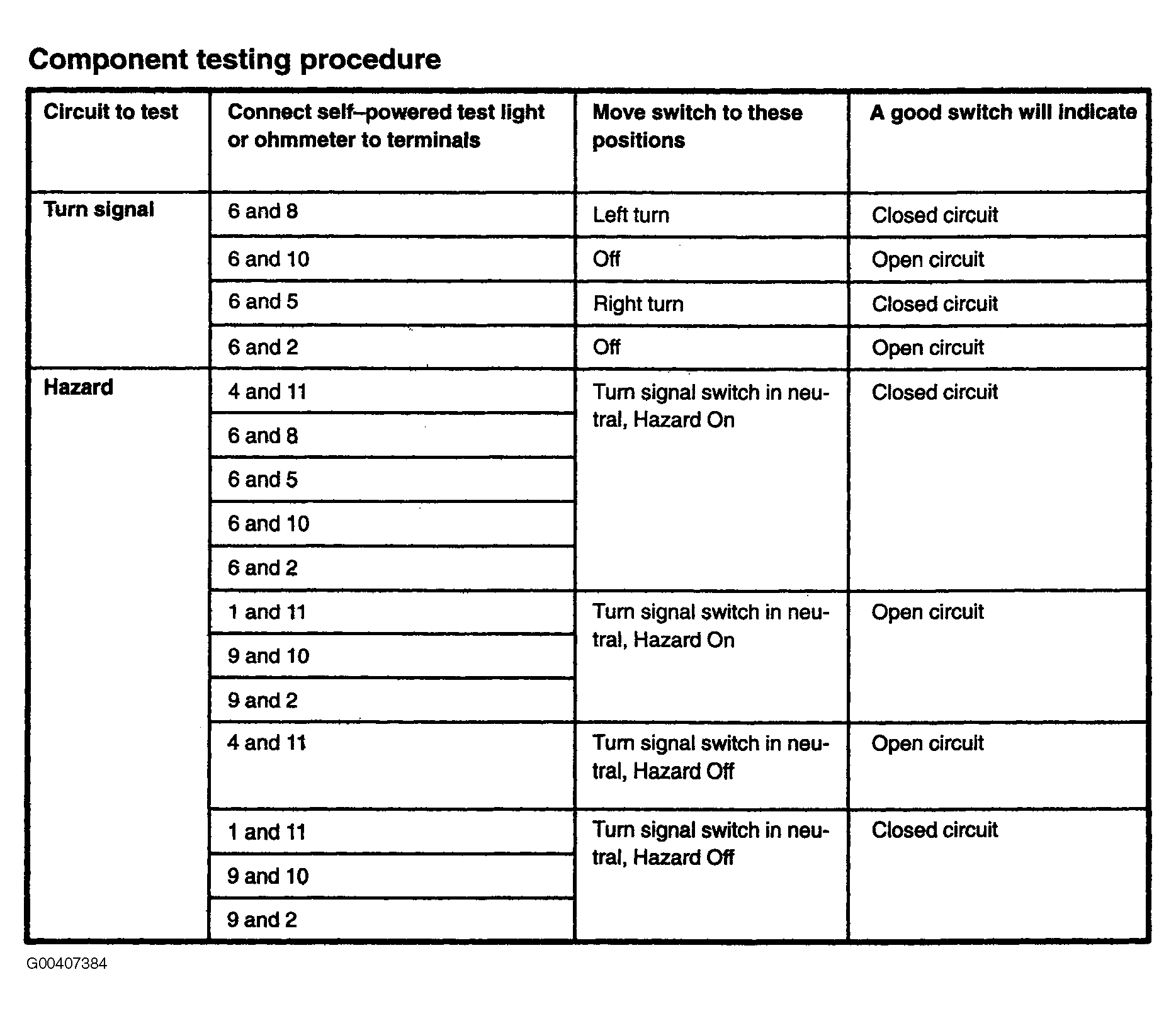

Fig 3: Testing Multifunction Switch (Lamp Portion) (3 Of 3)
G00407384Courtesy of FORD MOTOR CO.
