Master Window Adjust Switch

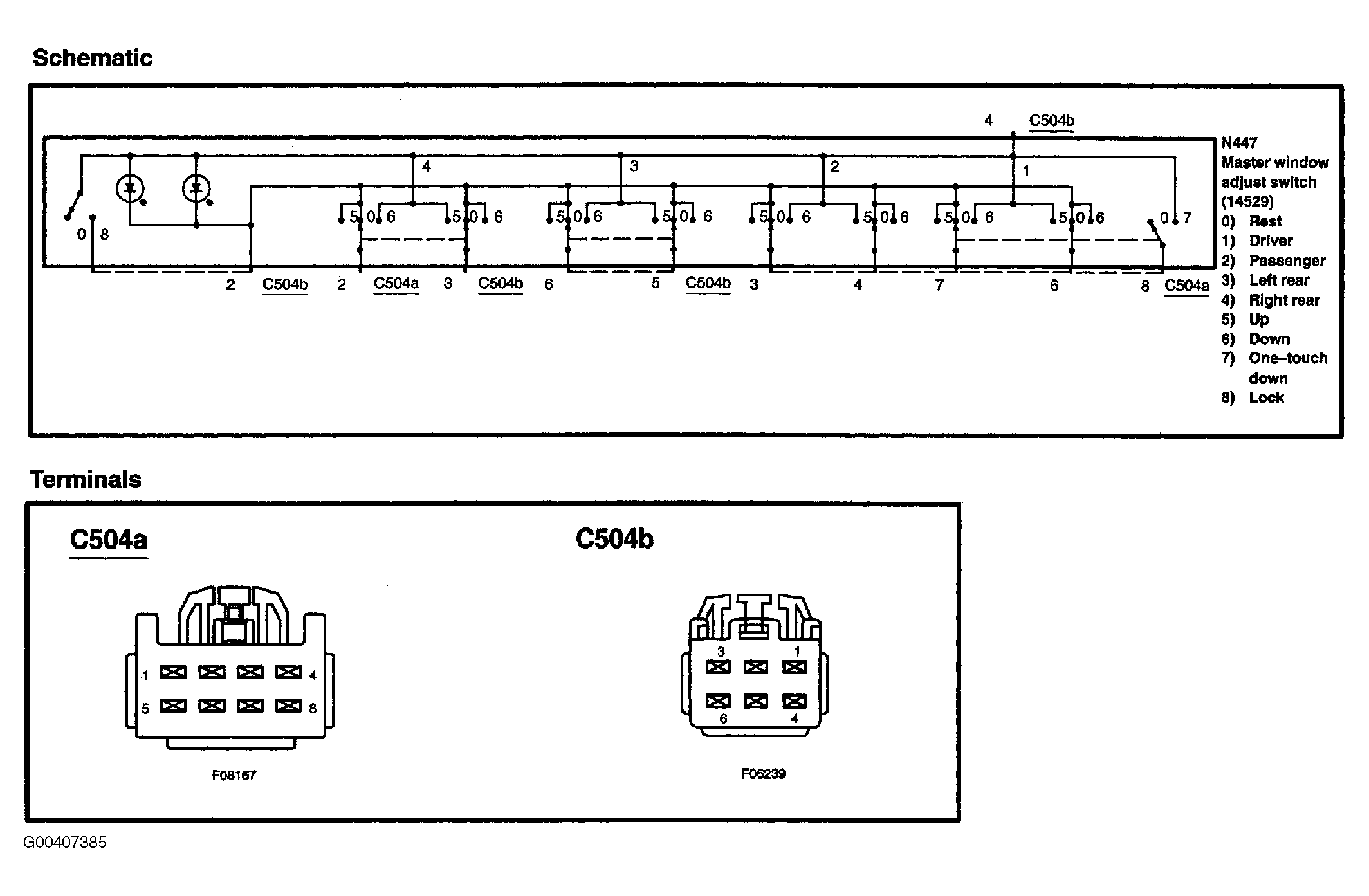

Fig 1: Testing Master Window Switch (1 Of 2)
G00407385Courtesy of FORD MOTOR CO.

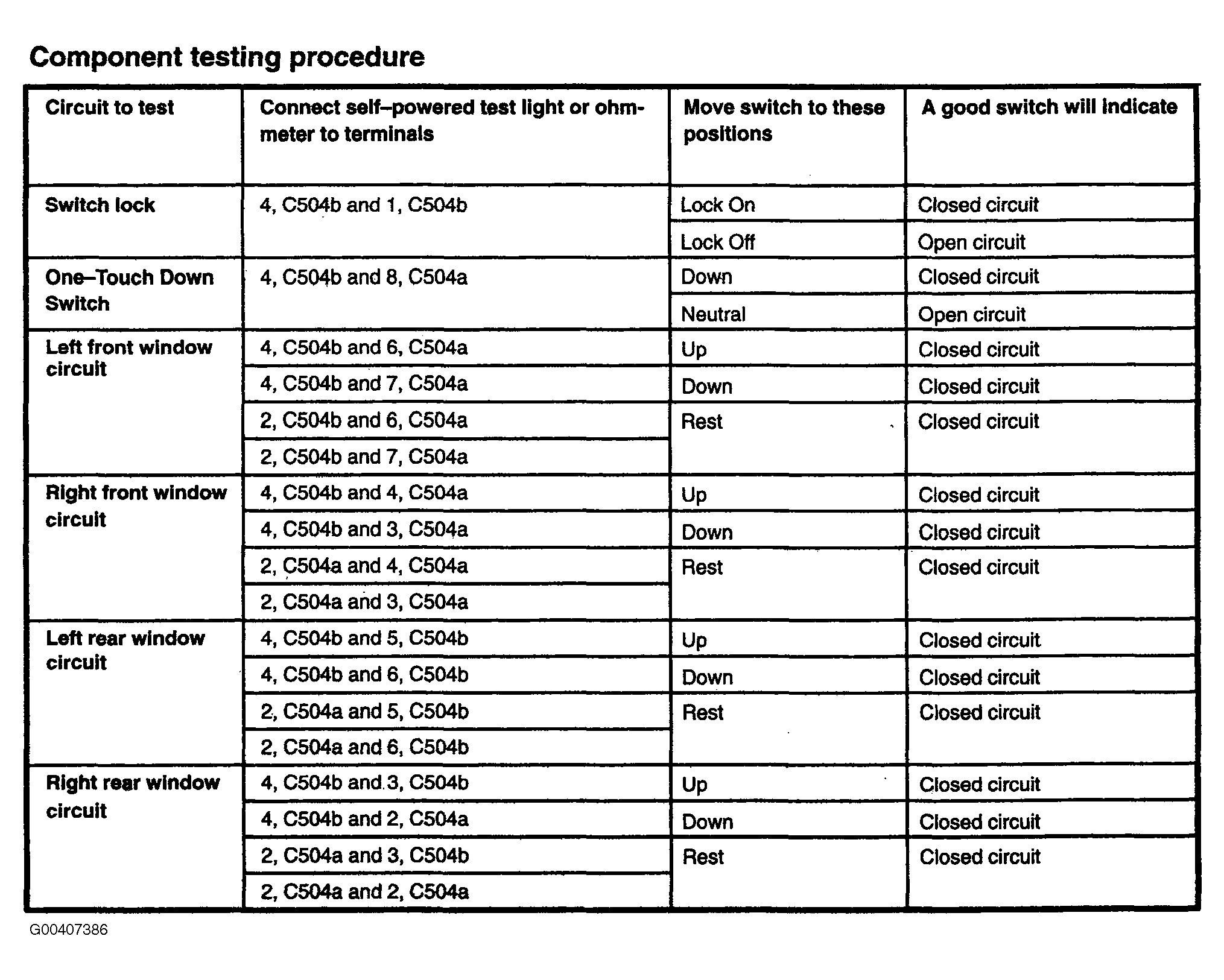

Fig 2: Testing Master Window Switch (2 Of 2)
G00407386Courtesy of FORD MOTOR CO.
