ABS Control Module Parameter Identification (PID) Index

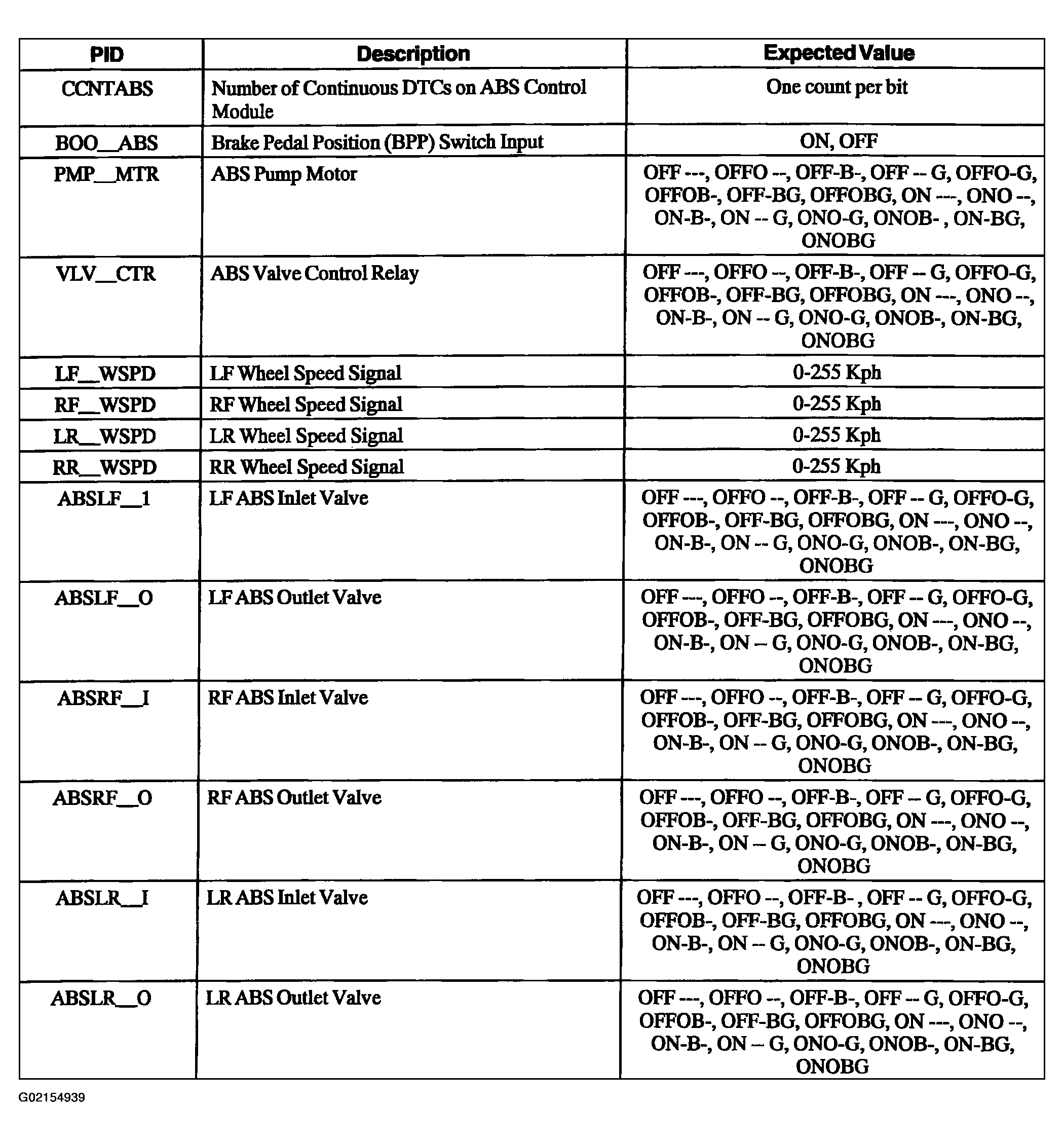

Fig 1: ABS Control Module Parameter Identification (PID) Index
G02154939Courtesy of FORD MOTOR CO.

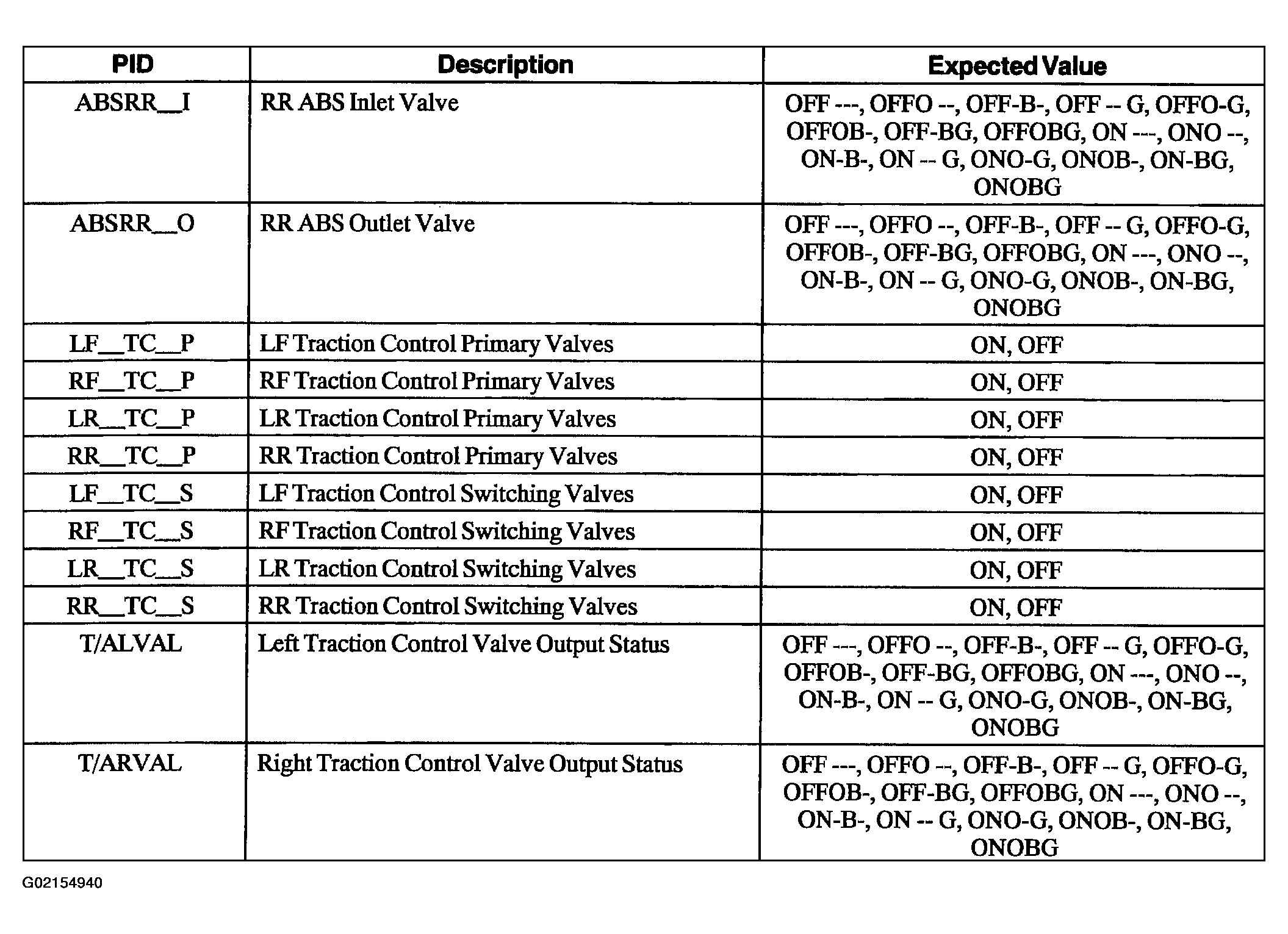

Fig 2: ABS Control Module Parameter Identification (PID) Index
G02154940Courtesy of FORD MOTOR CO.
