Pinpoint Test N: The Traction Control Cannot Be Disabled

Fig 1: Pinpoint Test N: The Traction Control Cannot Be Disabled (Step N1)
G02154970Courtesy of FORD MOTOR CO.

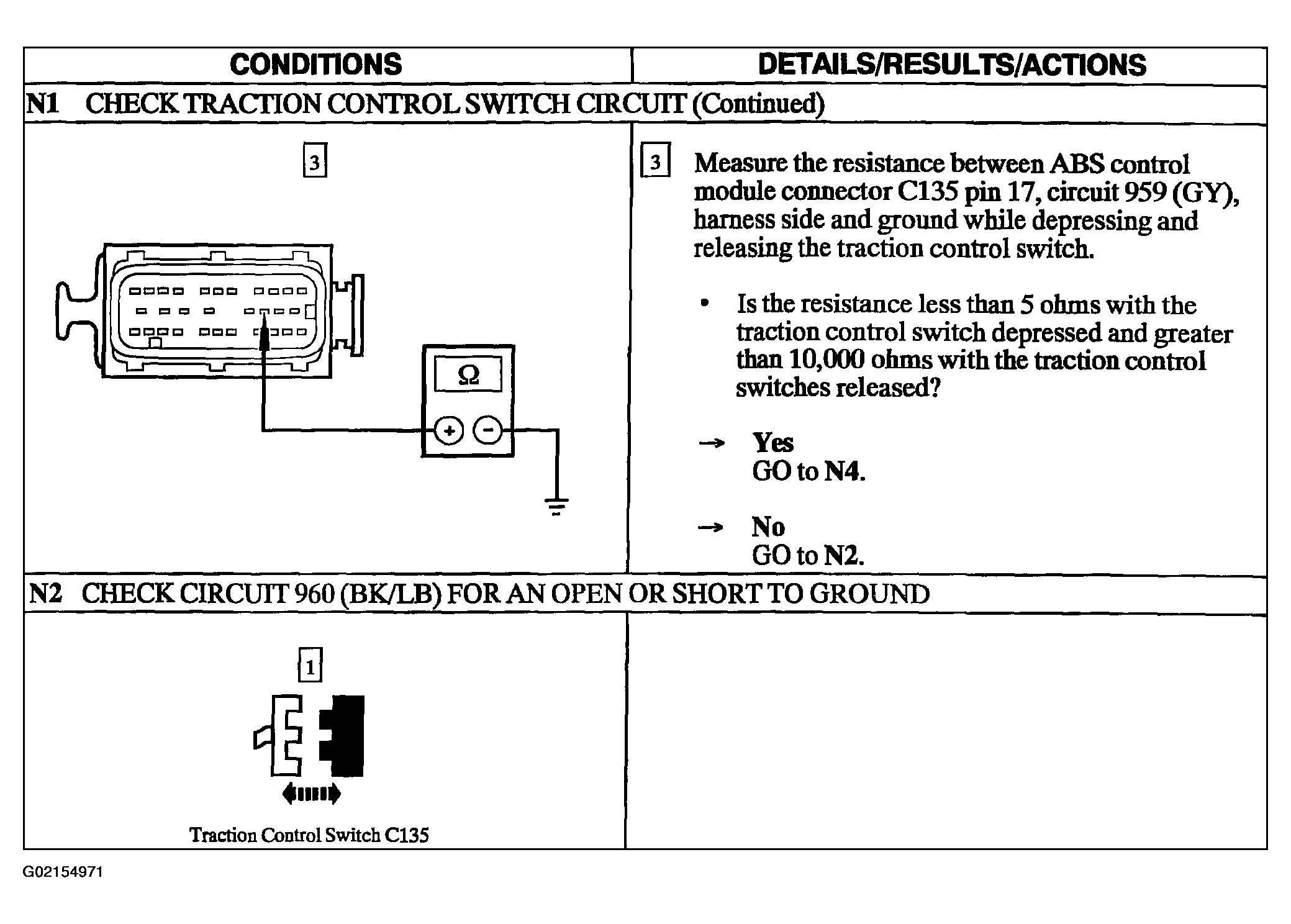

Fig 2: Pinpoint Test N: The Traction Control Cannot Be Disabled (Step N1 Cont. & N2)
G02154971Courtesy of FORD MOTOR CO.

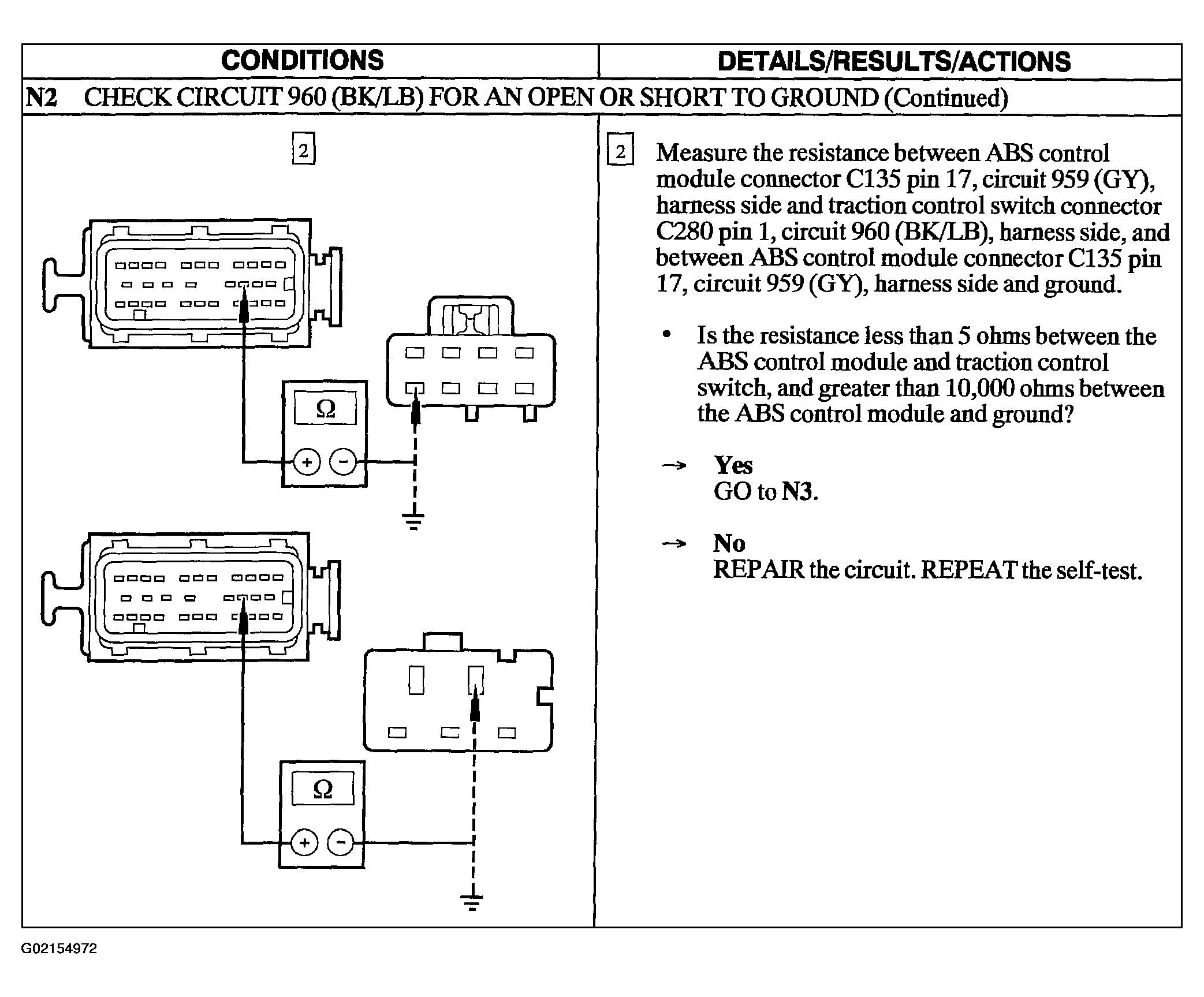

Fig 3: Pinpoint Test N: The Traction Control Cannot Be Disabled (Step N2 Cont.)
G02154972Courtesy of FORD MOTOR CO.

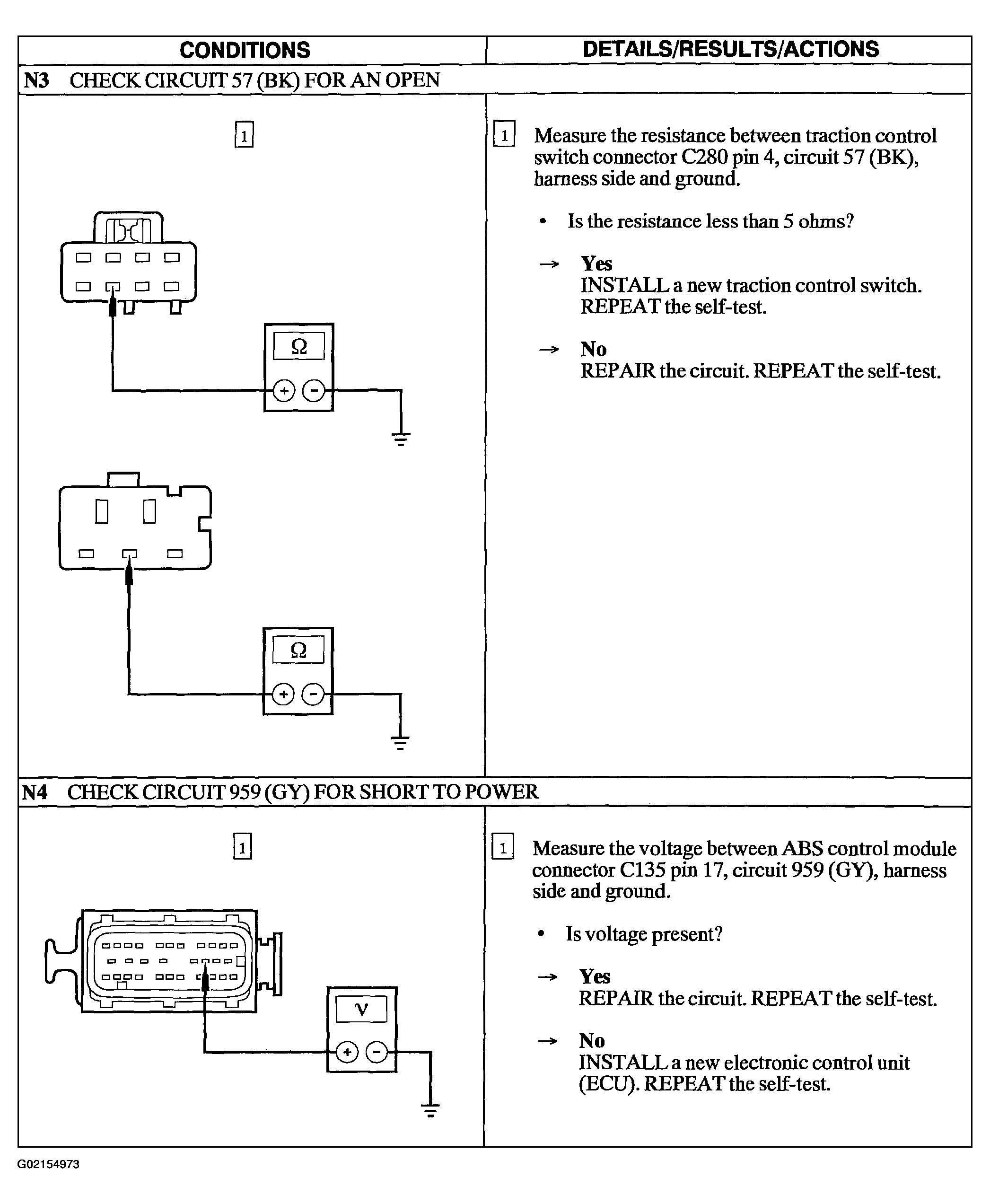

Fig 4: Pinpoint Test N: The Traction Control Cannot Be Disabled (Step N3 & N4)
G02154973Courtesy of FORD MOTOR CO.
