Component Locations

WARNING: This page is about a different car, the 2002 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

For module communications network components location, see Fig 1

COMPONENT LOCATIONS

Component Location
Anti-Lock Brake System Control Module Right Front Of Engine Compartment, Behind Radiator
Central Junction Box Behind Left Side Of Instrument Panel
Data Link Connector Under Instrument Panel Between Steering Column And Radio
Generic Electronic Module Behind Instrument Panel, Next To Central Junction Box
In-Line Harness Connector C140 Left Rear Corner Of Engine Compartment
In-Line Harness Connector C144 Right Front Corner Of Engine Compartment
In-Line Harness Connector C134 Behind Right Front Kick Panel
In-Line Harness Connector C314 Behind Left Side Of Instrument Panel, Near "A" Pillar
Powertrain Control Module Behind Right Front Kick Panel
Restraint Control Module Behind Left Center Of Instrument Panel

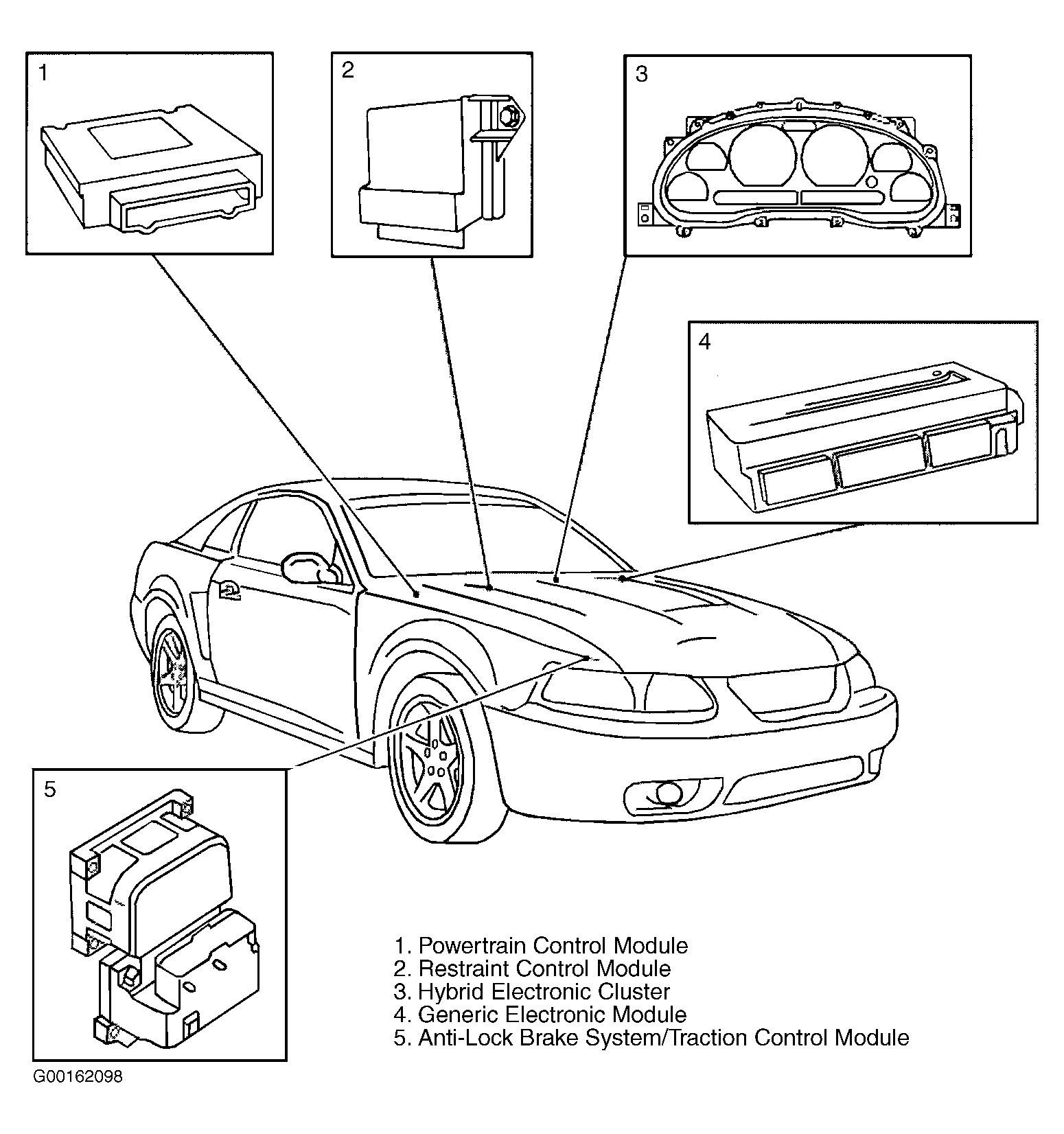

Fig 1: Locating Electronic Modules & Electronic Cluster
G00162098Courtesy of FORD MOTOR CO.
