Adjustable Pedals Indexing
WARNING: This page is about a different car, the 2002 Mercury Grand Marquis and 2002 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

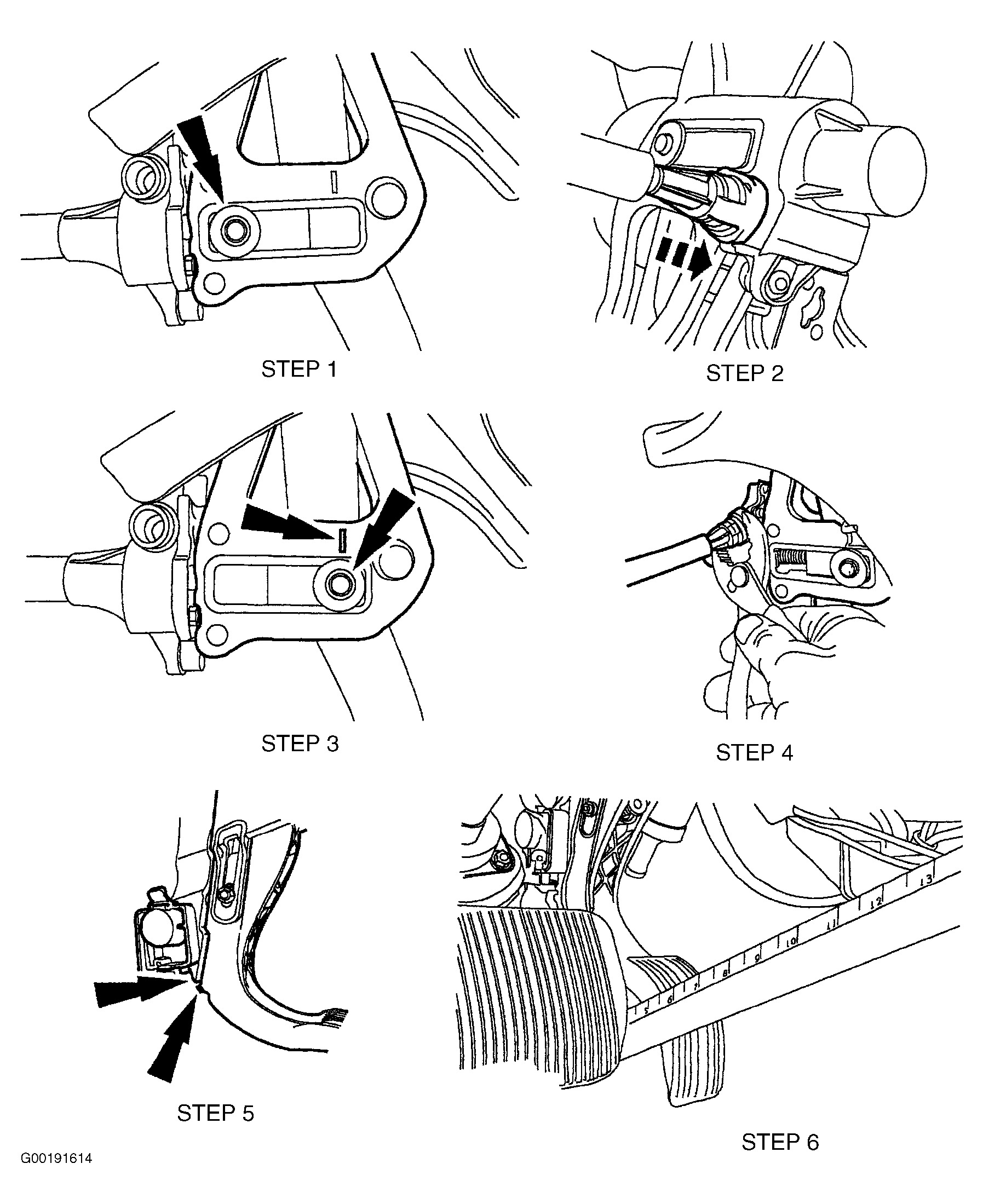

Connect pedal motor harness connector. Operate switch until accelerator pedal is at top of travel. See STEP 1 in Fig 1. Connect drive cable to brake pedal assembly. See STEP 2 in Fig 1. Operate switch until brake pedal is at bottom of travel (index mark). See STEP 3 in Fig 1. Disconnect drive cable at brake pedal assembly. See STEP 4 in Fig 1. Operate switch until accelerator pedal is at bottom of travel (index mark). See STEP 5 in Fig 1. Connect drive cable to brake pedal assembly. See STEP 2 in Fig 1. Check pedal adjustment travel, pedals should move at least 2" (50 mm). See STEP 6 in Fig 1. If pedals move as specified, indexing is complete.
