Inspection and Verification: Notes

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Visually inspect for obvious signs of electrical damage. Refer to the following chart:

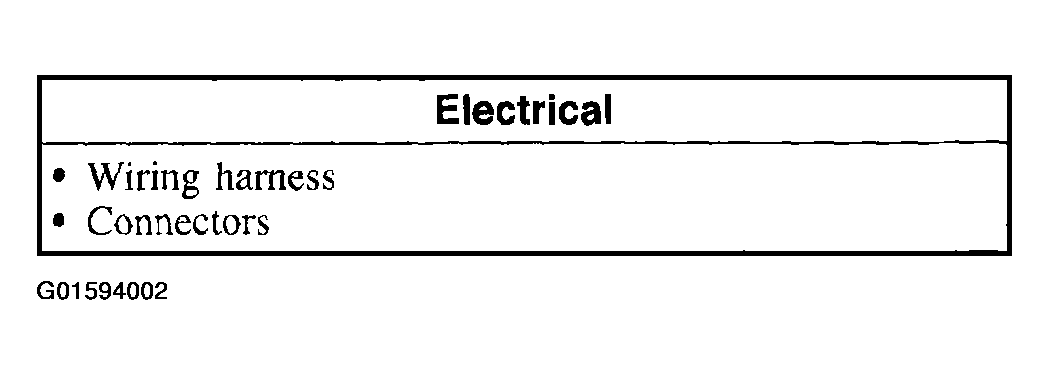

Fig 1: Identifying Visual Inspection Chart
G01594002Courtesy of FORD MOTOR CO.
