Power Liftgate Module C4174a
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

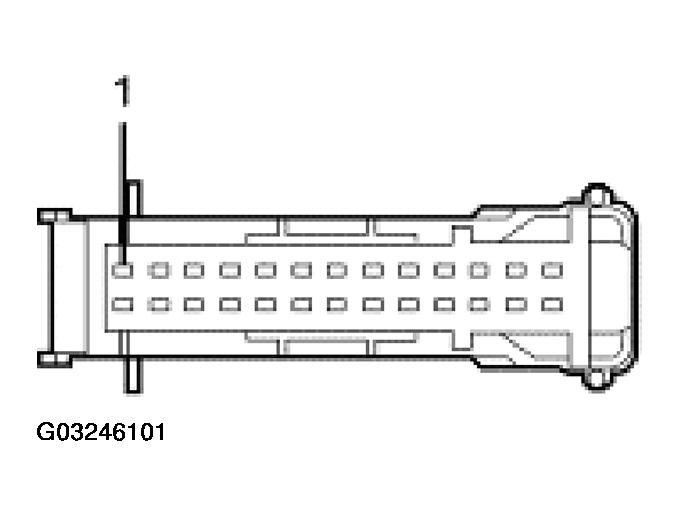

POWER LIFTGATE MODULE C4174A CONNECTOR CIRCUIT REFERENCE
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 70 (LB/WH) ISO 9141 communication circuit | Less than 5 ohms between the power liftgate module in and the DLC. Greater than 10,000 ohms to ground with all network modules disconnected. |
