Connecting Rod - Piston Pin Side Clearance

  1. Measure the clearance between the connecting rod and the piston. Verify the measurement is within specification.
    • If out of specification, install new components as necessary.

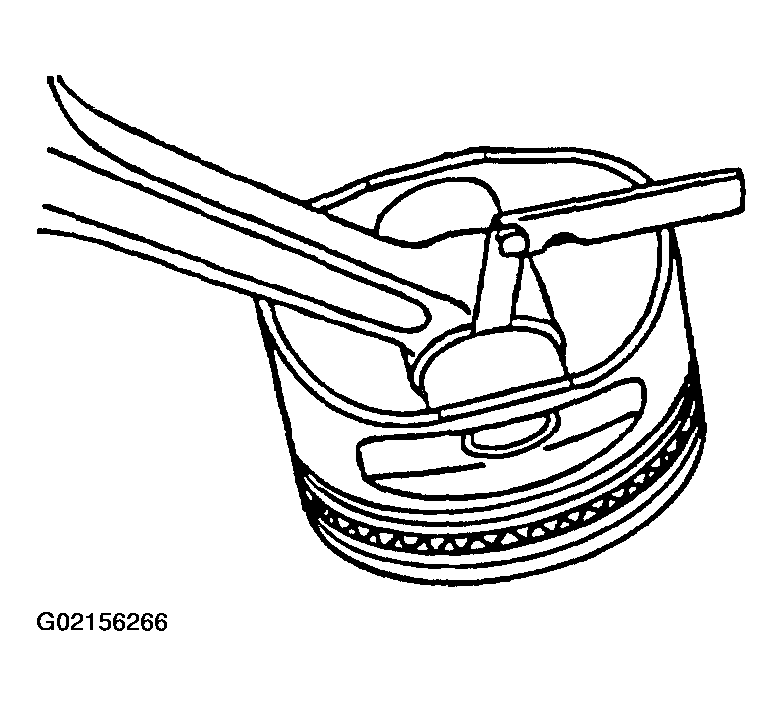

    Fig 1: Measuring Connecting Rod Piston Pin Side Clearance
    G02156266Courtesy of FORD MOTOR CO.
