Valve - Spring Installed Length

  1. Measure the installed length of each valve spring.
    • If out of specification, install new components.

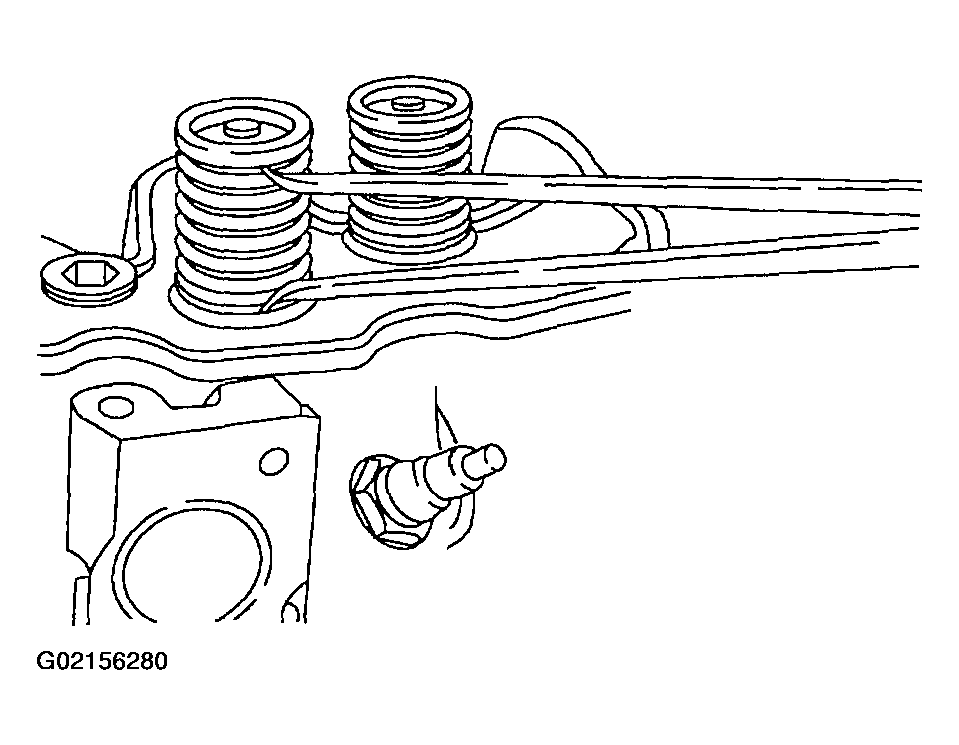

    Fig 1: Measuring Valve Spring Installed Length
    G02156280Courtesy of FORD MOTOR CO.
