Valve - Spring Squareness

  1. Measure the out-of-square on each valve spring.
    • Turn the valve spring and observe the space between the top of the valve spring and the square. Install a new valve spring if out of square.

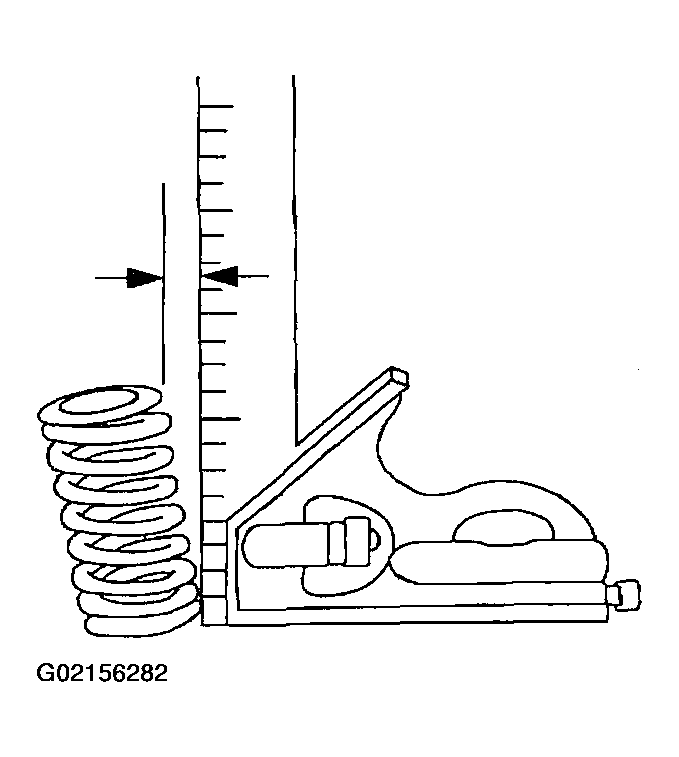

    Fig 1: Measuring Valve Spring Squareness
    G02156282Courtesy of FORD MOTOR CO.
