Ignition Switch Lock Cylinder-Non-Functional: Installation

Install the gear and the bearing.

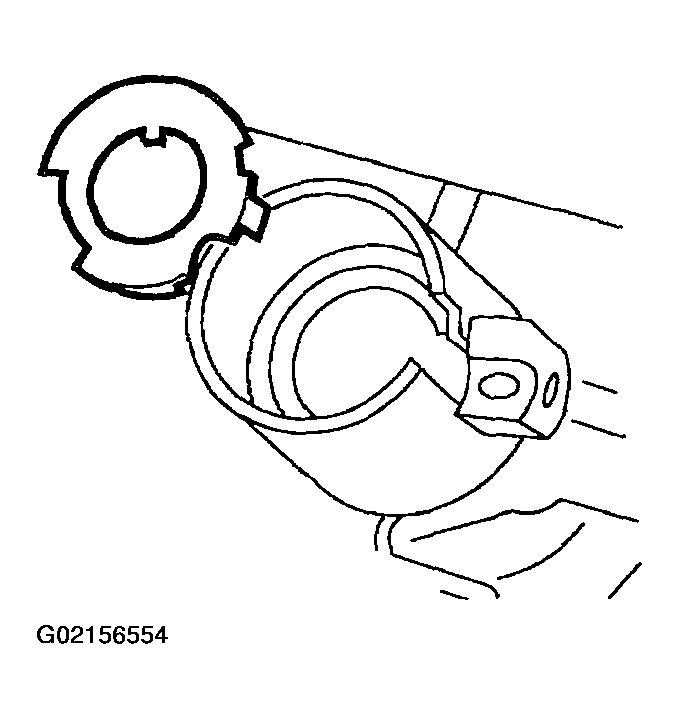

Fig 1: Installing Bearing & Gear
Courtesy of FORD MOTOR CO.
Install the bearing retainer.

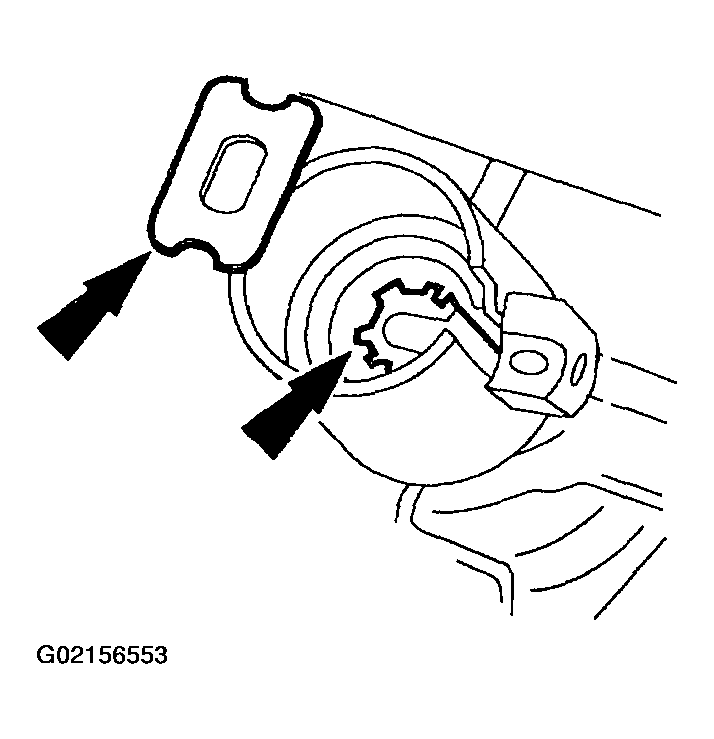

Fig 2: Installing Bearing Retainer
Courtesy of FORD MOTOR CO.
Install a new ignition switch lock cylinder.
- Verify ignition switch lock cylinder operation.

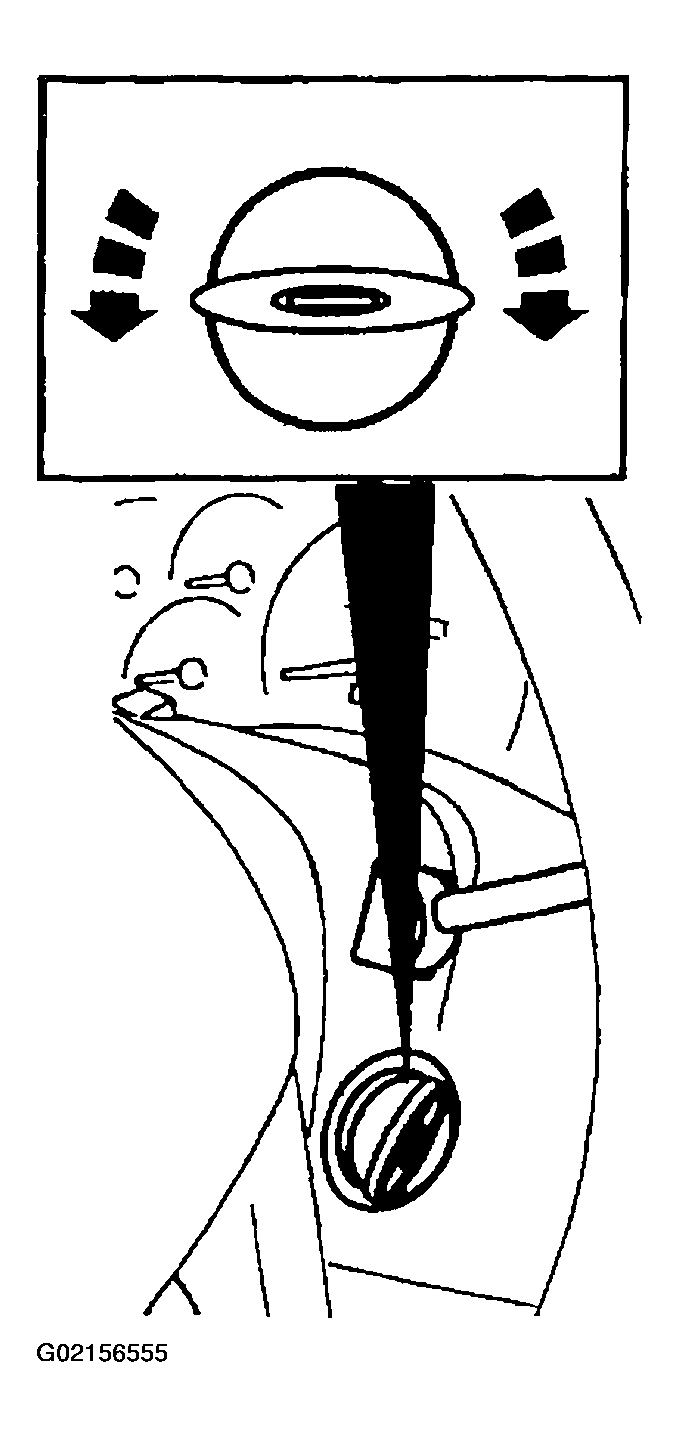

Fig 3: Verifying Ignition Switch Lock Cylinder Operation
Courtesy of FORD MOTOR CO.

WARNING: To reduce the risk of serious personal injury, read and follow all warnings, notes and instructions in the steering wheel removal and installation procedure.

Install the steering wheel. Refer to WHEEL .

WARNING: To avoid the risk of serious personal injury, read and follow all warnings, notes and instructions in the reactivation procedure.

Reactive the supplemental restraint system (SRS). Refer to REACTIVATION .
