Removal And Installation: Wheel: Removal
- Disconnect the battery ground cable (14301) and wait at least one minute.
- Deactivate the supplemental restraint system (SRS). Refer to DEACTIVATION .

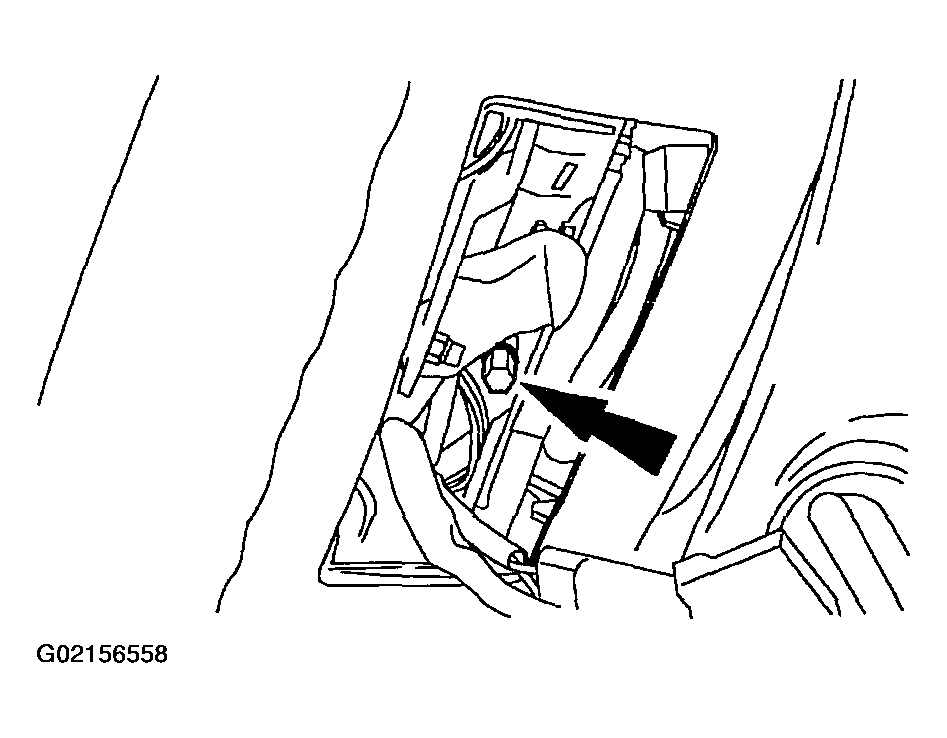

- Open the access door.
- Use a thin bladed screwdriver to carefully pry the access door open.

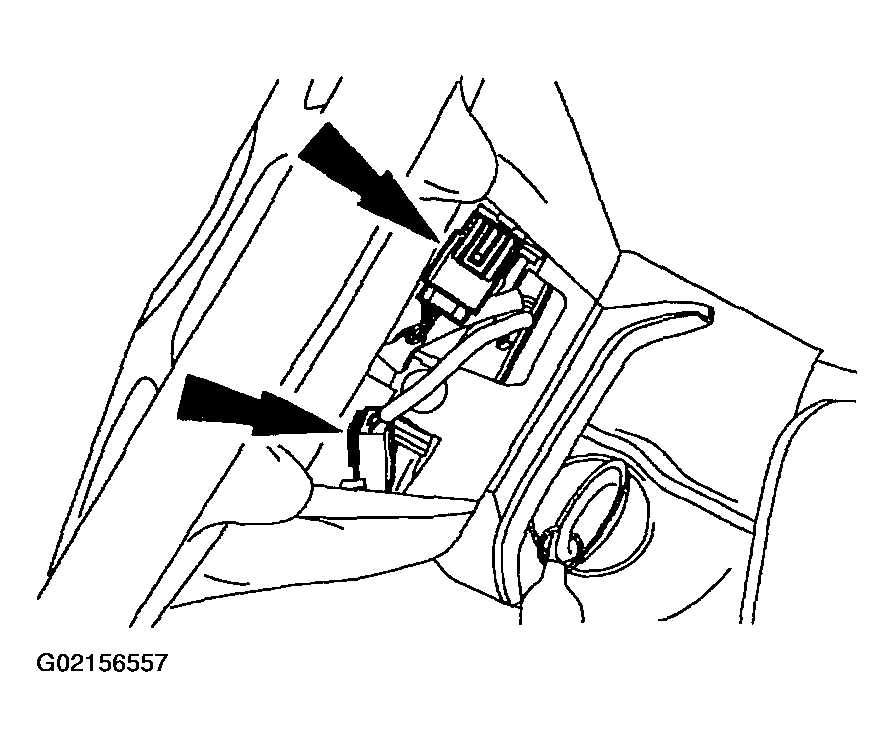

- Disconnect the accessory and air bag module electrical connectors.
- Turn the pinion shaft 120-130 revolutions to release the steering wheel from the column shaft.
NOTE:
The driver air bag (soft pack) and steering wheel can be serviced separately or as an assembly.
NOTE:
In the event of an air bag (soft pack) deployment, the air bag (soft pack) and the steering wheel must be serviced as an assembly.
WARNING:
To avoid the risk of serious personal injury, read and follow all warnings, notes and instructions in the deactivation procedure.
CAUTION:
When removing the steering wheel, care must be taken to prevent damage to the wiring and wiring connectors. Route the wiring through the small opening in the back of the steering wheel as it is removed from the column shaft.
CAUTION:
The pinion shaft must be turned 120-130 revolutions to release the steering wheel. Do not attempt to force the steering wheel from the column. Damage to the steering wheel bolt or the steering column can occur.
