Headlamp Switch

Fig 1: Testing Headlamp Switch (1 Of 2)
G00386588Courtesy of FORD MOTOR CO.

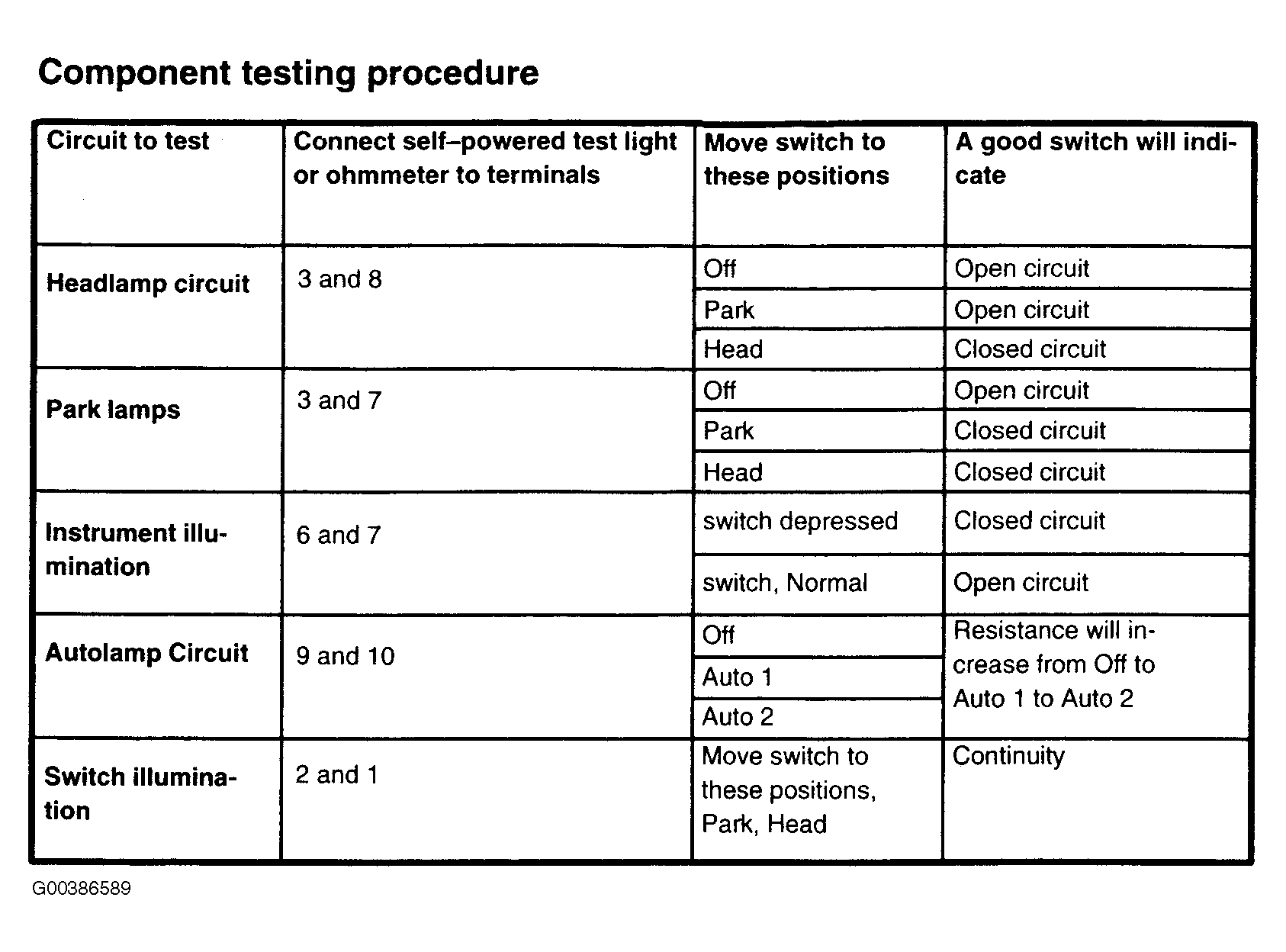

Fig 2: Testing Headlamp Switch (2 Of 2)
G00386589Courtesy of FORD MOTOR CO.
