MULTIFUNCTION Switch

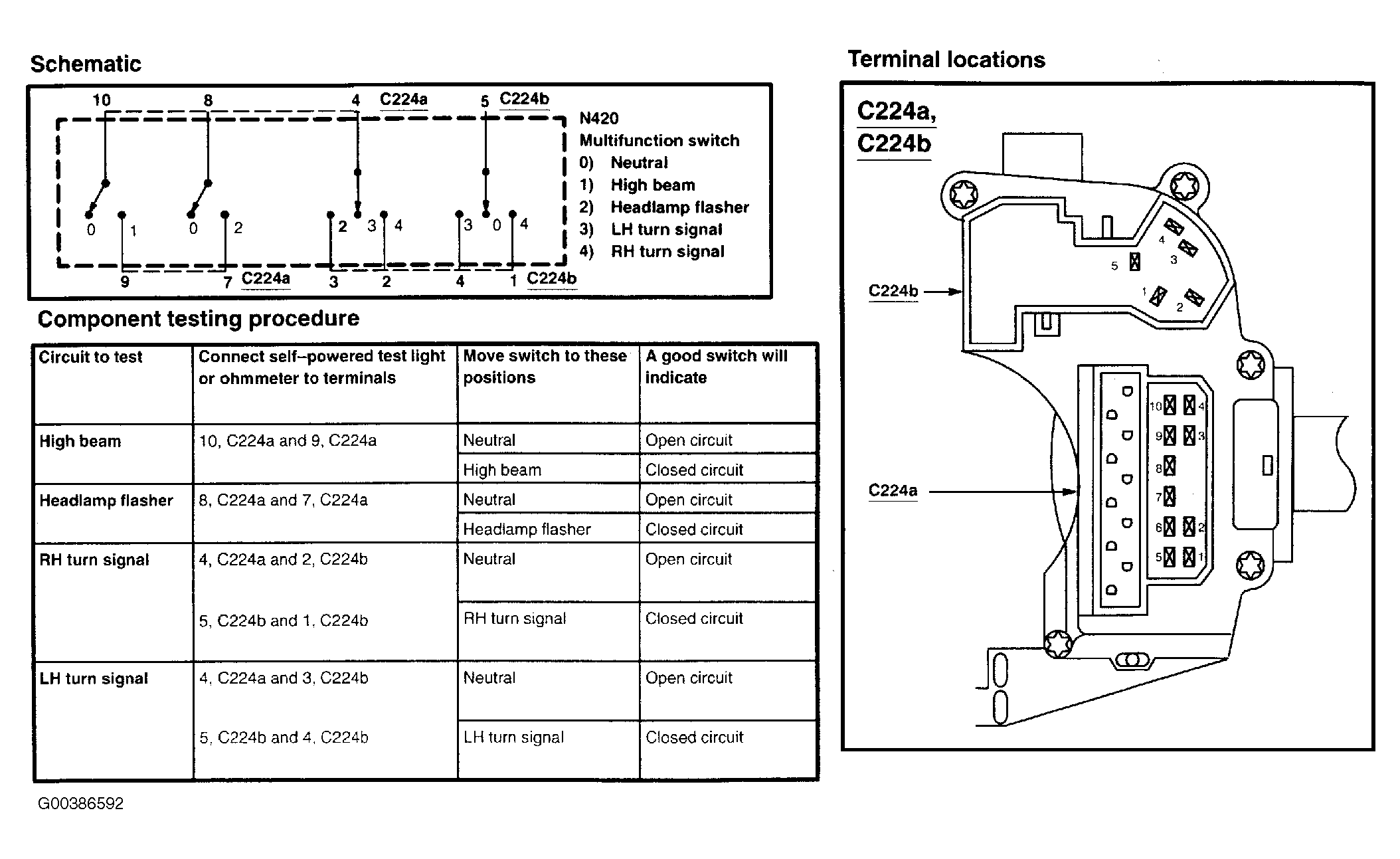

Fig 1: Testing Multifunction Switch (1 Of 2)
G00386592Courtesy of FORD MOTOR CO.

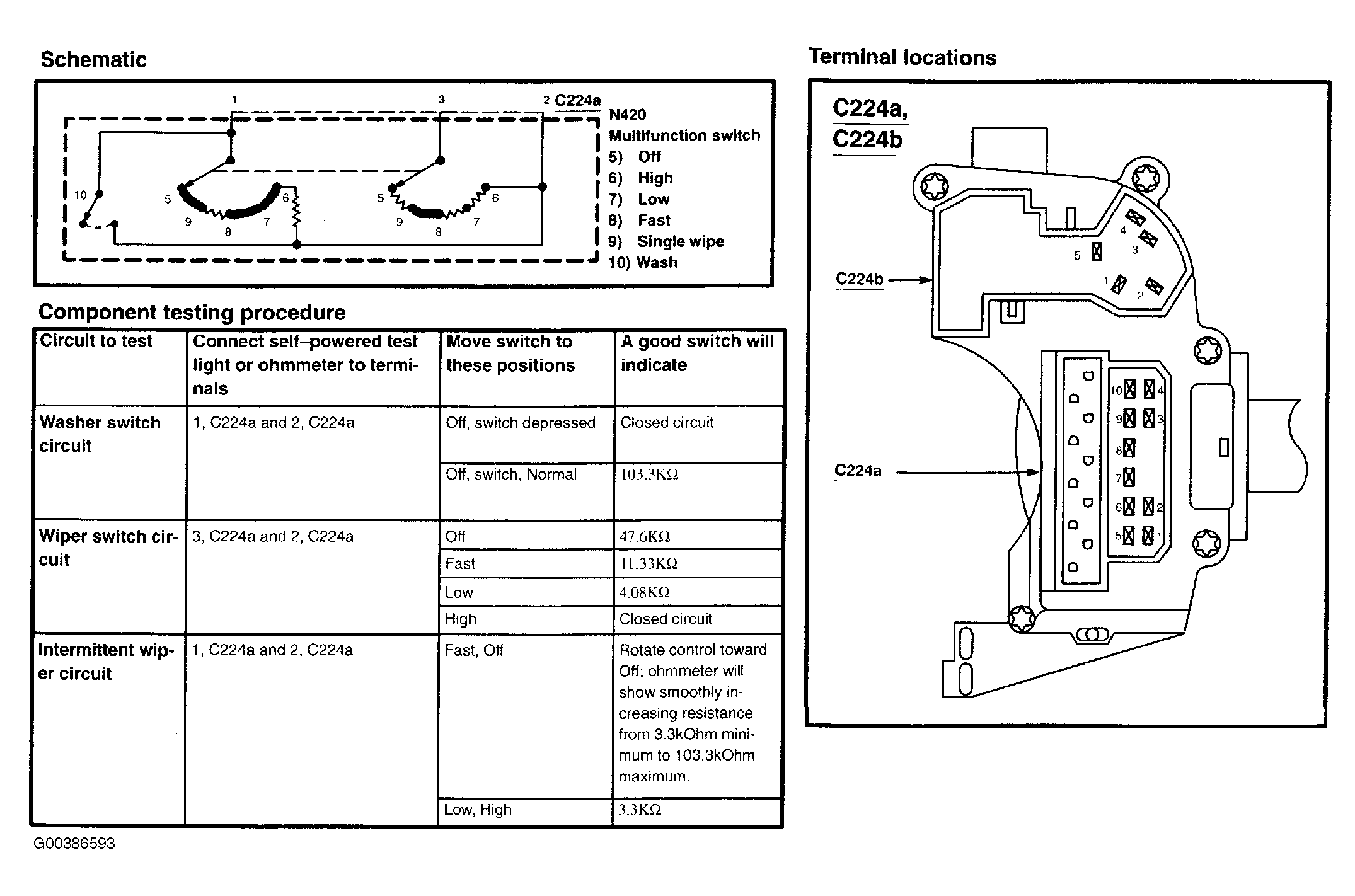

Fig 2: Testing Multifunction Switch (2 Of 2)
G00386593Courtesy of FORD MOTOR CO.
