Power Seat Switch

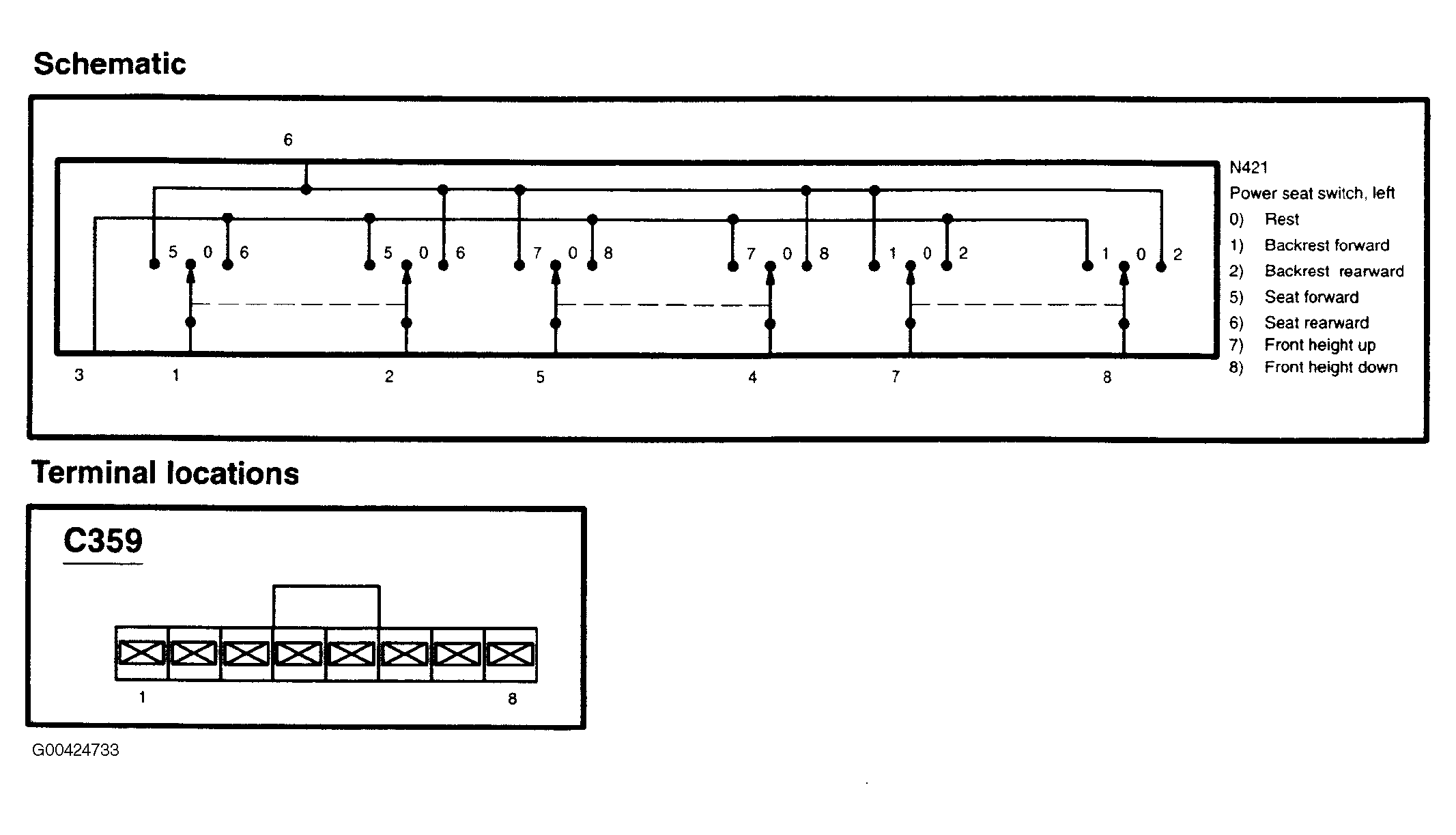

Fig 1: Testing Power Seat Switch - Left (1 Of 2)
G00424733Courtesy of FORD MOTOR CO.

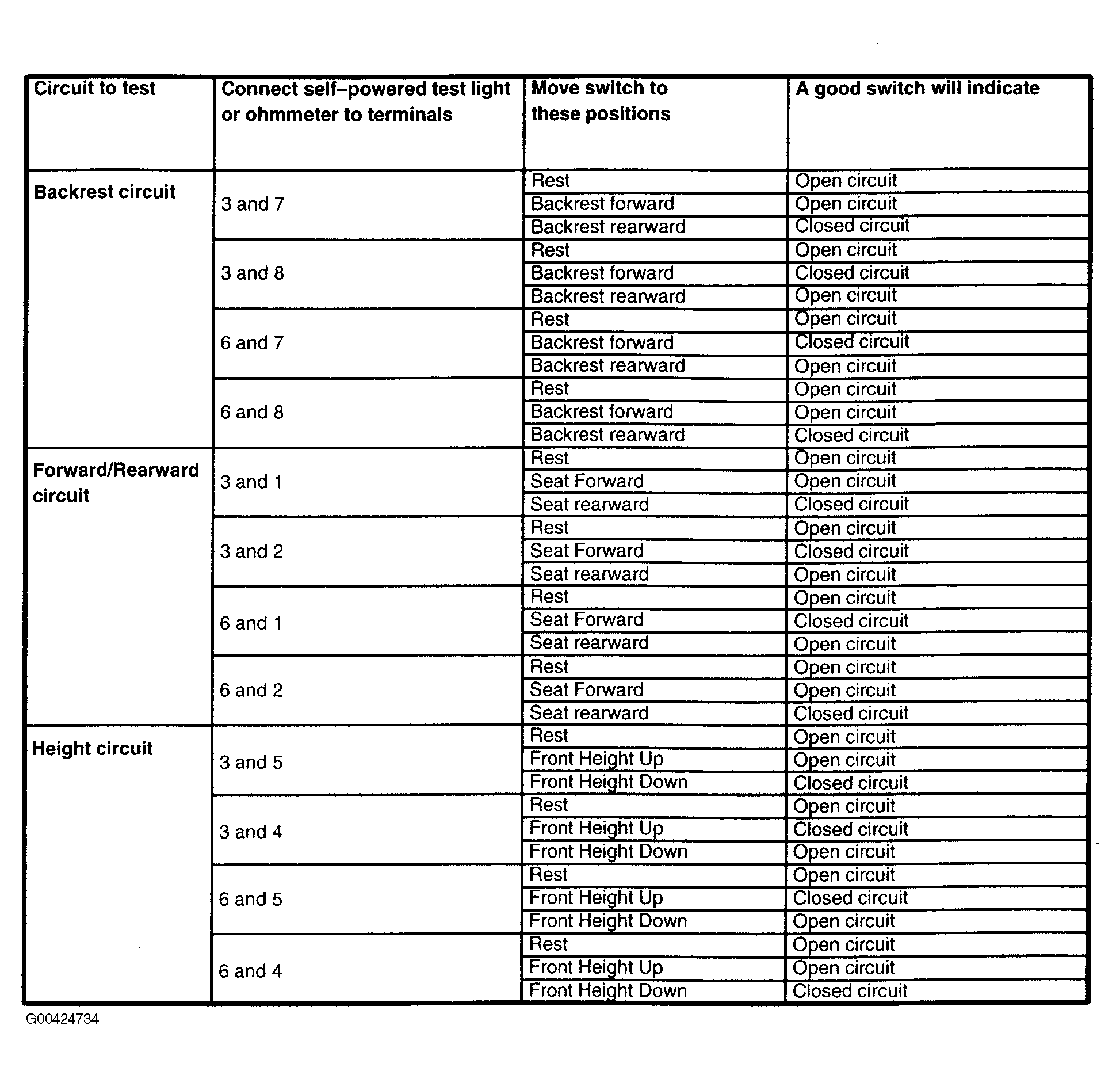

Fig 2: Testing Power Seat Switch - Left (2 Of 2)
G00424734Courtesy of FORD MOTOR CO.

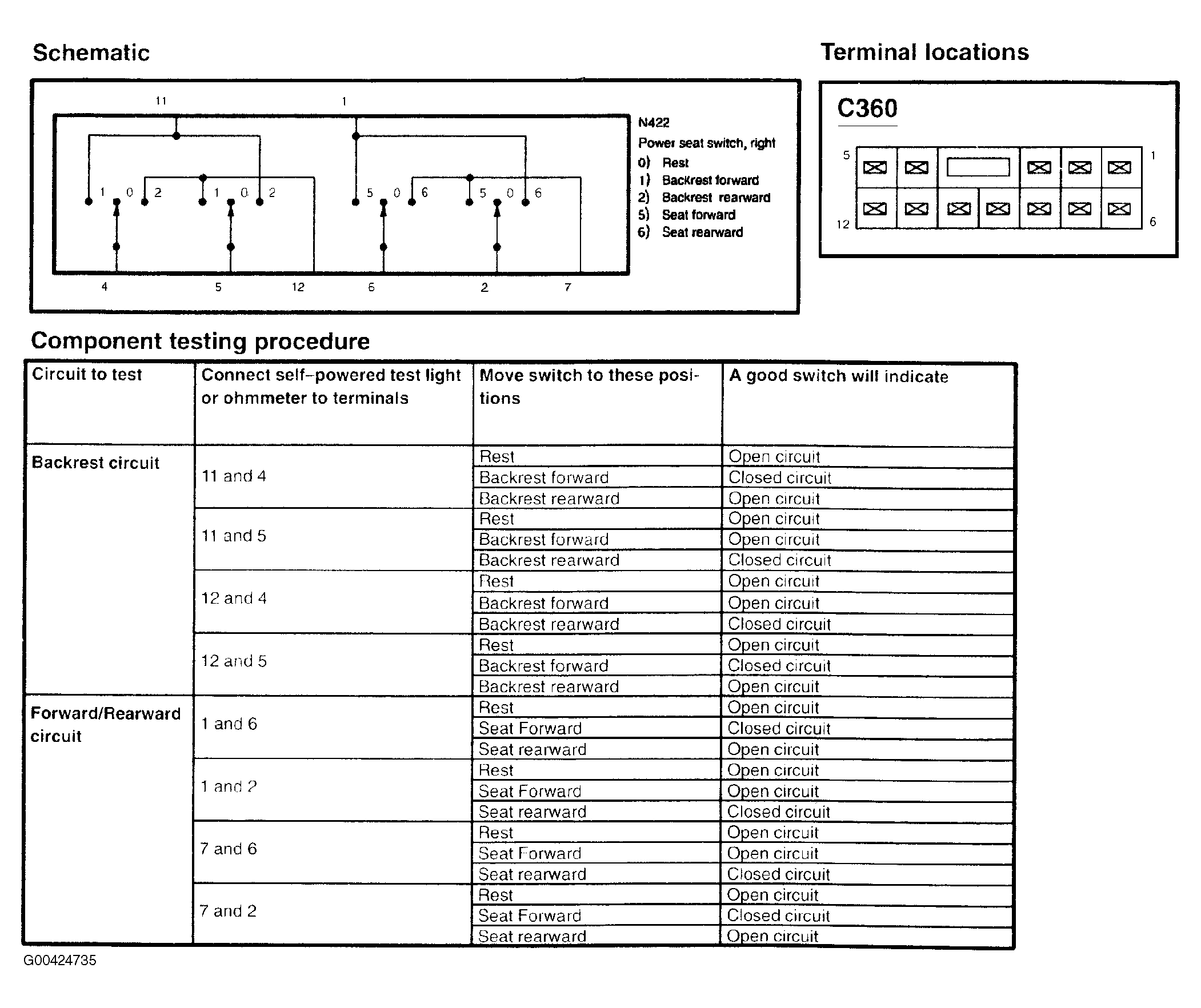

Fig 3: Testing Power Seat Switch - Right
G00424735Courtesy of FORD MOTOR CO.

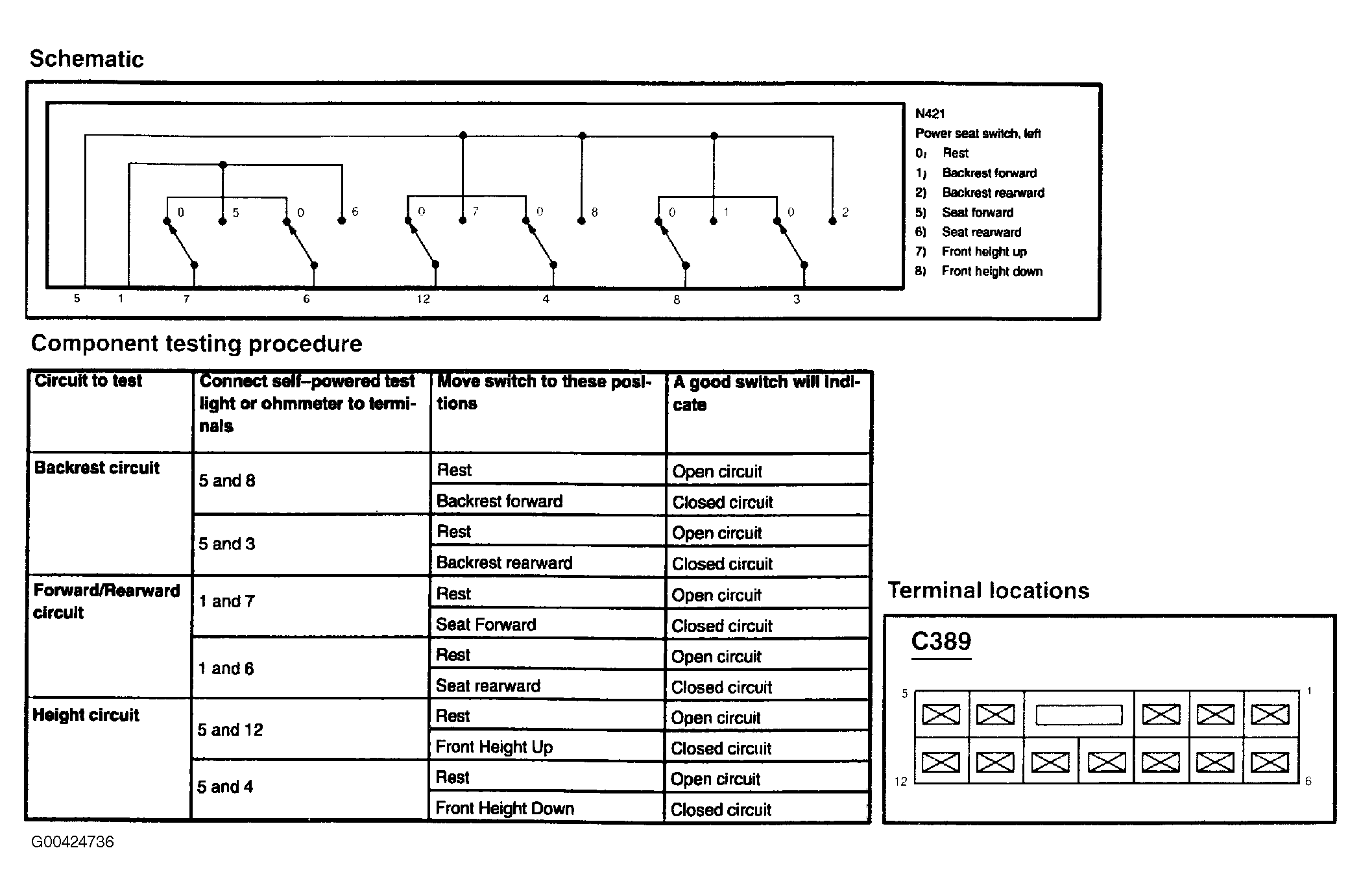

Fig 4: Testing Power Seat Switch - Left
G00424736Courtesy of FORD MOTOR CO.
