Illumination Dimmer

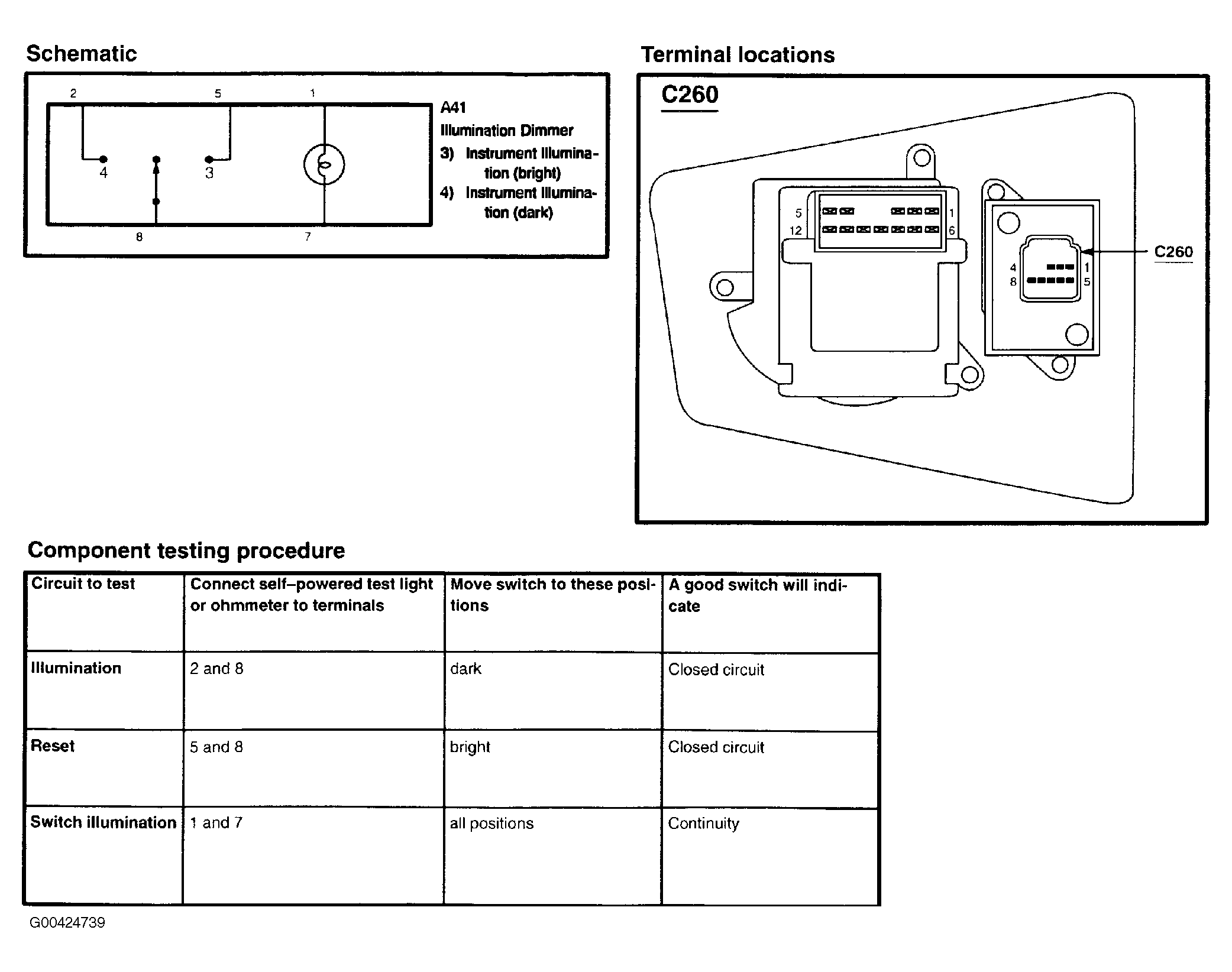

Fig 1: Testing Illumination Dimmer
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
