Hydraulic Control Unit -Electronic: Installation

    WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately.
    CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.
    NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.
  1. To install, reverse the removal procedure.
    • Bleed the brake system. For additional information, refer to BRAKE SYSTEM-GENERAL INFORMATION .

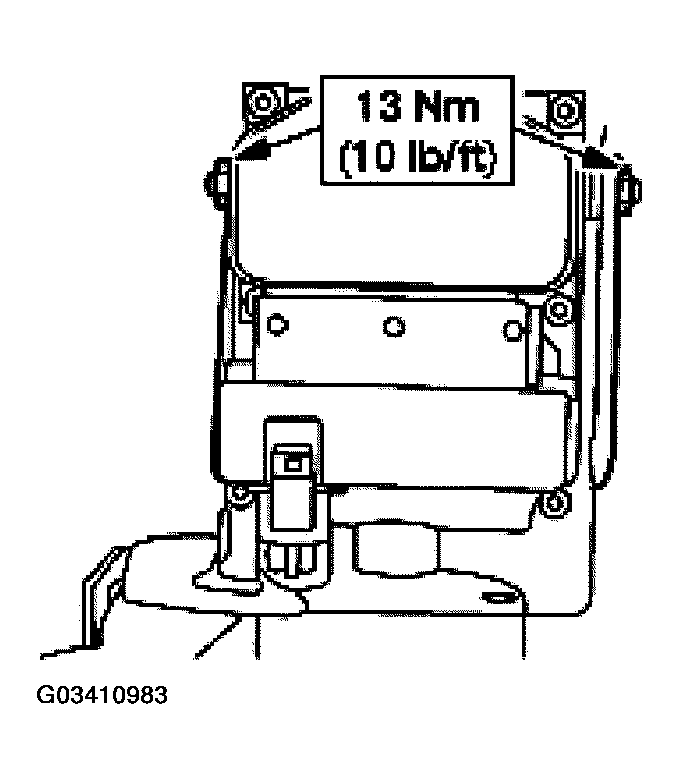

      Fig 1: Hydraulic Control Unit -Electronic Installation Procedure (1 Of 3)
      G03410983Courtesy of FORD MOTOR CO.

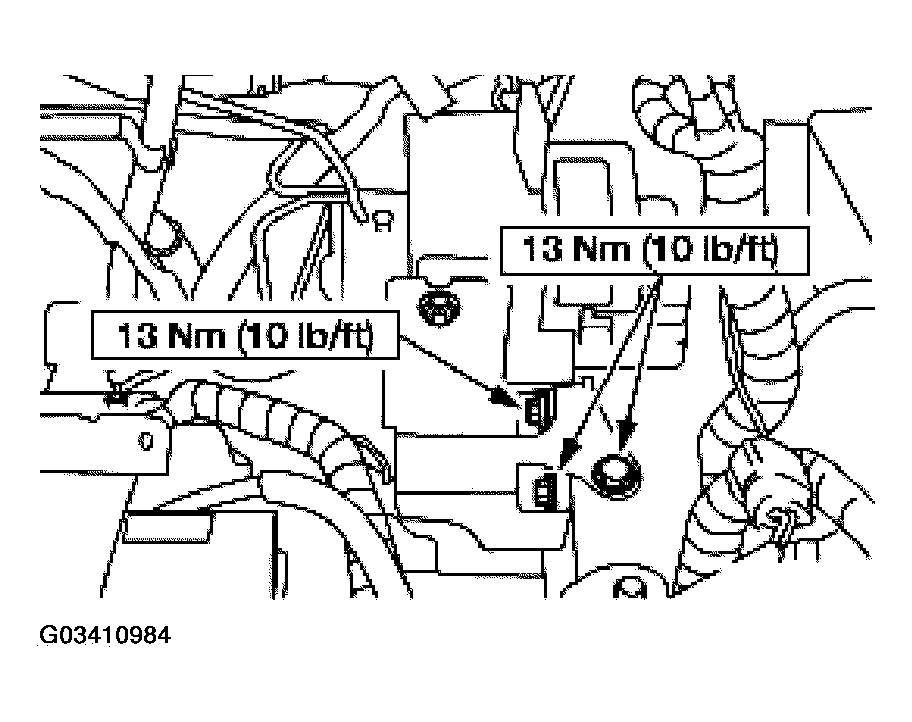

      Fig 2: Hydraulic Control Unit -Electronic Installation Procedure (2 Of 3)
      G03410984Courtesy of FORD MOTOR CO.

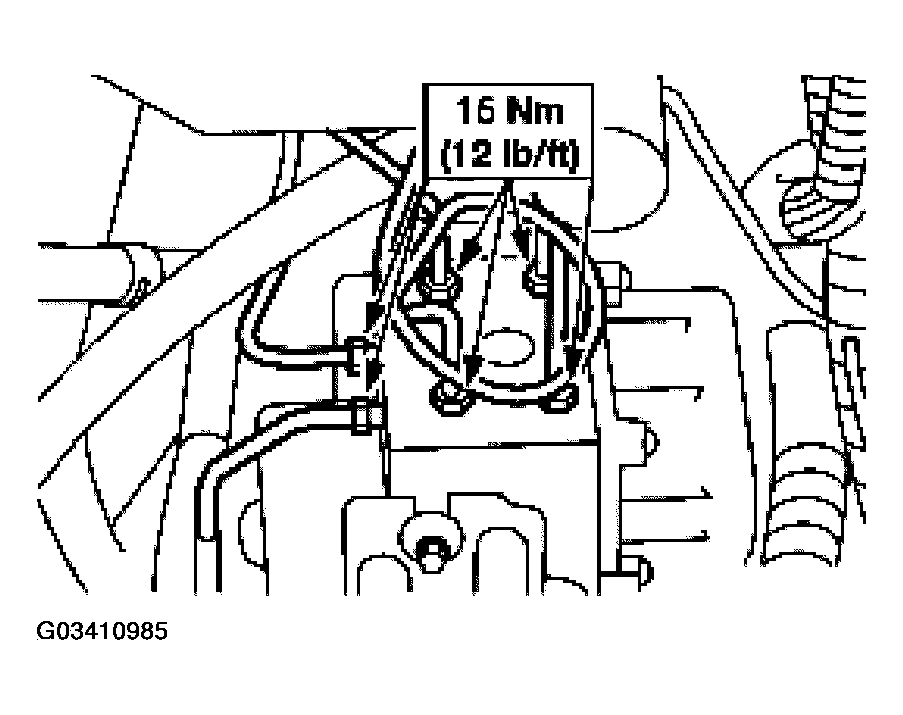

      Fig 3: Hydraulic Control Unit -Electronic Installation Procedure (3 Of 3)
      G03410985Courtesy of FORD MOTOR CO.
